OATEY 5510-1 Dearborn® 1-1/2 in. x 12 in. Semi-Cast P-Trap w/ Cleanout 17 Ga. w/ Deep Flange & Brass Nuts, White Box

OATEY 5510-1 Dearborn® 1-1/2 in. x 12 in. Semi-Cast P-Trap w/ Cleanout 17 Ga. w/ Deep Flange & Brass Nuts, White Box

(No reviews yet) Write a Review

Model: 5510-1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$150.00
$100.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Dearborn® 1-1/2 in. x 12 in. Semi-Cast P-Trap w/ Cleanout 17 Ga. w/ Deep Flange & Brass Nuts, White Box

  • Features

    • For warranty product details, refer to the Oatey Limited Warranty document
    • Brass nuts
    • Deep Flange
    • 17 gauge wall tube
    • For use in commercial applications
    • Chrome plated finish

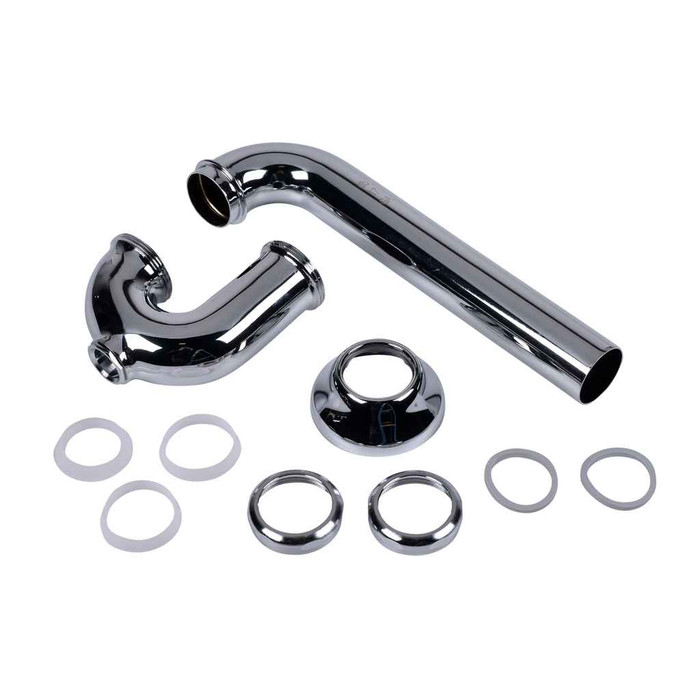

    • Includes 2 brass nuts, 1 reducing washer, 2 poly washers, 2 rubber washers, fiber cleanout washer, cleanout plug, deep metal flange, quarter bend and cast J-Bend with cleanout
    • Semi-Cast J-bend
    • 1-1/2 In. Inlet and outlet


5510-1 - spec sheet

Manufacturer Resources

Product Specs

Connection Type:
Slip Joint
Escutcheon Flange:
Deep Flange
Joint Type:
Slip Joint
Volume:
0.086
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Flashing and Flanges
Product Type:
Flange
Product Finish:
Chrome
Product Material:
Brass
Product Weight:
2

OATEY 5510-1 – Frequently Asked Questions

1) What comes in the box with the Oatey 5510-1 trap, or do I need to buy washers and nuts separately?
Everything for the joint is in the box: 2 brass nuts, 1 reducing washer, 2 poly washers, 2 rubber washers, a fiber cleanout washer, the cleanout plug, the deep metal flange, the quarter bend, and the cast J-bend with cleanout. You supply the tailpiece and the wall stub.
2) Is a 17 gauge semi-cast trap like the Dearborn 5510-1 overkill for a residential sink?
For a house, yes, it is heavier than needed. The 5510-1 uses 17 gauge wall tubing with a cast J-bend and brass nuts, and Oatey lists it for commercial applications. That weight is what you want in a school, hospital, restaurant or apartment common area where the trap gets pulled and snaked repeatedly. A thin-wall 20 or 22 gauge tubular trap with plastic nuts is the residential equivalent.
3) Why choose a P-trap with a cleanout plug instead of a plain one?
The cleanout plug in the bottom of the J-bend lets you clear a stoppage or retrieve a dropped ring without breaking the slip joints and dumping the trap seal. On maintenance fleets that is the whole reason to spec it. The 5510-1 ships with the plug and its fiber cleanout washer.
4) What does the deep flange on the Oatey 5510-1 do, and do I still need an escutcheon?
No separate escutcheon is needed. The deep metal flange is included and slides over the wall tube to cover the drain penetration. The deep style hides a rougher or oversized hole in the wall than a shallow flange will, which is common on retrofit work where the old arm came through at a different point.
5) Will the Oatey 5510-1 trap rust or discolor in an exposed ADA lavatory install?
It is chrome plated with brass nuts, so it holds up in an exposed application under a wall-hung lavatory where the trap is visible. Note this trap ships bare, so if the fixture requires insulation for ADA protection you add a trap wrap kit over it.
6) I need to standardize traps across a building. What part number do I order for the Oatey Dearborn semi-cast trap?
Order Oatey 5510-1. It is a single configuration, 1-1/2 by 12 inch semi-cast P-trap with cleanout, 17 gauge, deep flange and brass nuts, packed in a white box. One part number covers every 1-1/2 inch lavatory and sink rough-in in the building, which makes it straightforward to stock on a truck or in a maintenance crib.
