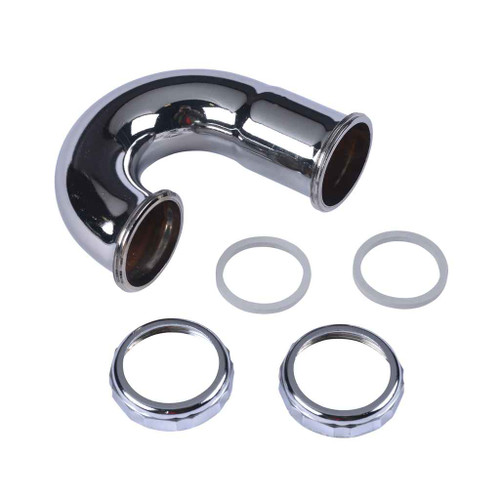

Dearborn® 1-1/2" Sink J-Bend w/ Ground Joint - 20 Ga.
654-1 - spec sheet
Features
- Chrome-plated finish
- Easy installation
654-1 - spec sheet
Manufacturer Resources
Product Specs
- Joint Type:
- Ground Joint
- Volume:
- 0.05
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Fittings
- Product Type:
- Brass Fittings
- Product Finish:
- Chrome
- Product Material:
- Brass
- Product Weight:
- 0.64
OATEY 654-1 – Frequently Asked Questions
1) Will the Oatey Dearborn 654-1 J-bend fit a standard 1-1/2 inch kitchen sink drain?
Yes. The Dearborn 654-1 is a 1-1/2 inch sink J-bend, which is the usual size for a kitchen sink tailpiece and trap arm. It is the U-shaped half of a P-trap, so it mates to a 1-1/2 inch tailpiece on the inlet side and a 1-1/2 inch trap adapter or waste arm on the outlet side.
2) What is a ground joint J-bend and do I need a washer with it?
Ground joint means the J-bend's connection faces are machined to seal metal to metal against the mating brass fitting, drawn tight by the slip nut, instead of relying on a rubber or poly slip washer. The 654-1 is built that way. Pair it with brass ground joint tubular parts so the finished faces meet properly; mixing it with a plain slip joint fitting is where leaks start.
3) Does the Oatey 654-1 come as a complete P-trap with the waste arm?
No. The 654-1 is the J-bend only, the U-shaped lower half. To build a full trap you also need a trap arm or wall bend running to the drain stub, plus a tailpiece from the sink strainer down to the J-bend. Order those separately as 1-1/2 inch ground joint brass parts.
4) Will this chrome J-bend match exposed trap work under a pedestal or wall-hung sink?
It will. The 654-1 carries a chrome-plated finish over brass, so it looks right where the trap is visible under a pedestal lav or an ADA-style wall-hung sink. For exposed installs keep the whole assembly, tailpiece, J-bend and waste arm, in the same chrome finish so the sheen matches.
5) What part number should a property manager stock for 1-1/2 inch brass sink J-bends?
Spec Oatey Dearborn model 654-1. It is a single-model item, so there is no finish or size choice to get wrong on the order, and each piece weighs 0.64 lb, which makes it easy to pack into a truck stock kit for multi-unit sink repairs.
