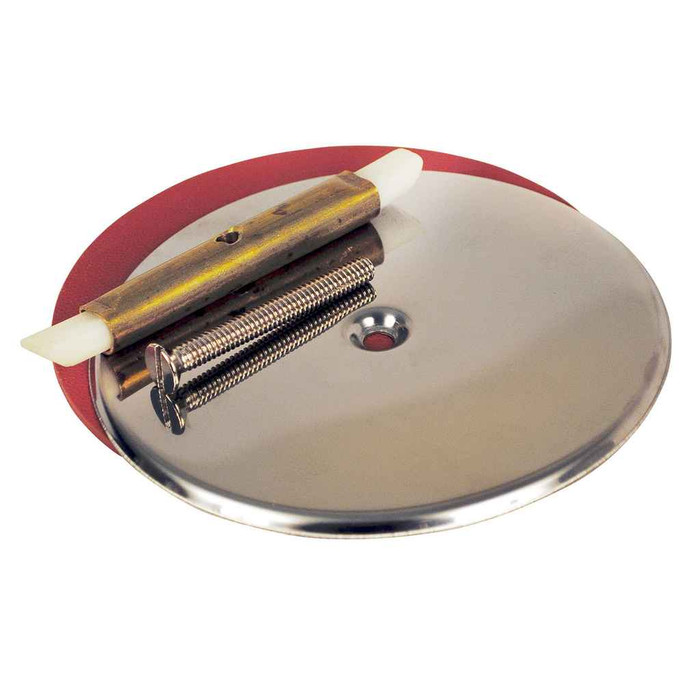

Dearborn® 3-1/4" - 4" Adj. Drum Trap Cover (Style A) w/ 5-1/4" Stainless Steel Cover & Rubber Gasket
1023 - spec sheet
1023 - spec sheet
Manufacturer Resources
Product Specs
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Drainage Products
- Product Type:
- Drain
OATEY 1023 – Frequently Asked Questions
1) What size drum trap opening does the Oatey Dearborn 1023 trap cover fit?
The Dearborn 1023 is an adjustable Style A drum trap cover that spans drum trap openings from 3-1/4 inches to 4 inches, so one part covers the range instead of you measuring for an exact-size cover. The stainless cover plate itself is 5-1/4 inches, which is what sits proud on the finished floor. Measure the trap body opening, not the old plate, when checking fit.
2) Does the Oatey 1023 drum trap cover come with a gasket, or do I need to buy one separately?
A rubber gasket is included with the 1023. That is the seal between the cover and the drum trap body, so for a straight cover replacement you are not sourcing a separate gasket. Plan on cleaning the seat surface in the trap before you set the new gasket down.
3) What is a Style A drum trap cover and how do I know that is the style I have?
Style A refers to the cover pattern the Dearborn line uses for drum traps, and the 1023 is the Style A version sized for 3-1/4 to 4 inch trap openings with a 5-1/4 inch stainless plate. Drum traps are the round cast bodies you find under older tub installations, with the access cover reachable from the floor above. Pull your existing cover and check the opening diameter against the 3-1/4 to 4 inch range before ordering.
4) Is the Oatey 1023 drum trap cover plate stainless steel or chrome plated?
Stainless steel. The 5-1/4 inch cover on the 1023 is stainless, which is the reason it holds up in a wet bathroom floor location where a plated steel plate would eventually rust through around the fasteners.
5) I manage older apartment buildings with cast drum traps under the tubs. Can I standardize on one cover part number?
For drum traps with openings anywhere between 3-1/4 and 4 inches, yes, the 1023 handles the whole range on one part number because the cover is adjustable across those sizes. That is the practical case for stocking it: you send a tech out with one box instead of measuring every unit first. Traps outside that opening range need a different cover.
6) What is the manufacturer part number for the Dearborn adjustable drum trap cover with the stainless plate?
Oatey Dearborn 1023. That single model number covers the adjustable Style A cover for 3-1/4 to 4 inch drum traps with the 5-1/4 inch stainless plate and rubber gasket, so it is the number to give a supplier or put on a purchase order.
