Delaney 180 Degree Solid Brass Viewer

Delaney 180 Degree Solid Brass Viewer

(No reviews yet) Write a Review

Model: 400119
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.50
$8.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

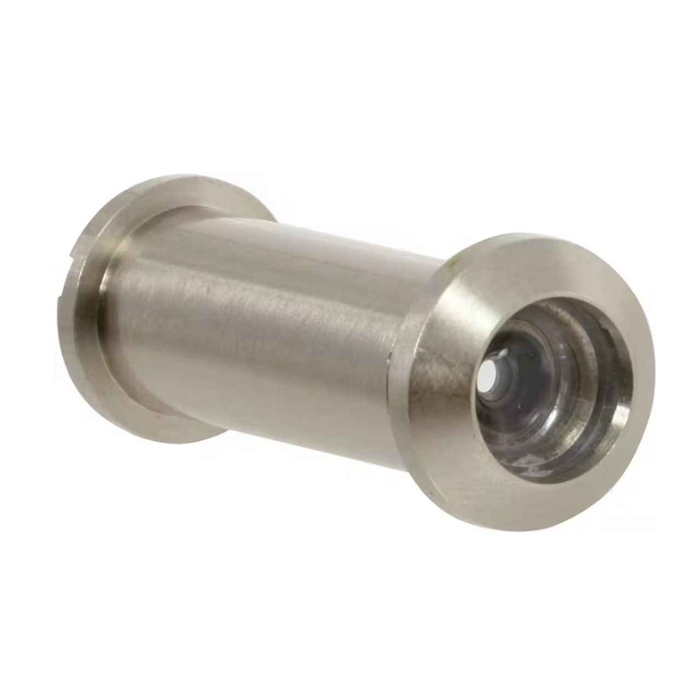

180 Degree Solid Brass Viewer

  • Viewer made from solid brass
  • For doors 1-3/8" to 2"
  • 1/2" Installation Hole Required
  • Suggested Installation Height: 60" from Floor
  • Dimensions - 1/2 Dia

Manufacturer Resources

Product Specs

Subcategory:
Door Knockers and Viewers
Series:
180 Door Viewer
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Knockers and Viewers
Product Type:
Solid Brass Viewer
Product Dimension:
1/2 Dia.
Product Category:
Door Trim and Accessories
Product Substrate:
Brass
Department:
Door Hardware

Delaney Hardware 400119 – Frequently Asked Questions

1) What size hole do I need to drill for the Delaney 180 degree door viewer?
A 1/2 inch hole is required. The viewer barrel is 1/2 inch diameter, so a standard 1/2 inch bit through the face of the door is all the prep it needs. If you are replacing an older viewer that used a larger bore, the 1/2 inch body will not cover the gap.
2) Will the Delaney 180 viewer work on a 1-3/4 inch commercial door?
Yes. The viewer covers doors from 1-3/8 inch up to 2 inch thick, so the 1-3/4 inch commercial standard sits in the middle of that range, as does the 1-3/8 inch thickness common on older interior and apartment doors.
3) How high should a door viewer be mounted?
Delaney suggests 60 inches from the floor for the 180 degree viewer. That height suits most adult occupants standing at the door. On multi-family or accessible units it is common to fit a second viewer lower on the same door, which the 1/2 inch bore makes easy to add.
4) What finishes does the Delaney 180 degree viewer come in?
Three: 613 Satin Bronze Oil-Rubbed, 619 Satin Nickel, and 622 Matte Black. Those are standard BHMA finish numbers, so if the entry lockset and handleset on the door are already specified in 613, 619, or 622, the viewer will read as part of the same suite.
5) Is this door viewer plastic or metal?
Solid brass. The body is brass rather than a plated zinc or plastic barrel, which matters on exterior entry doors where the sleeve gets torqued every time the cover is turned and on high-turnover rental units.
6) What is the difference between a 180 degree viewer and a standard 160 degree peephole?
Field of view. The Delaney 180 gives a full half-circle of coverage from the door face, so someone standing tight against the jamb on either side is still visible. Narrower viewers leave blind wedges at the edges of the opening. Both install the same way on this one, through a 1/2 inch bore in a 1-3/8 to 2 inch door.
