Delaney 3000 Series - 6 Foot Low-Profile Top-Mount Sliding Barn Door Split Track Hardware Kit, US19 Black Finish

The Delaney BD3064 hangers are built for doors 1-3/8 inch to 1-3/4 inch thick, which covers a standard 1-3/8 inch interior slab and a 1-3/4 inch commercial-weight door. Anything thicker than 1-3/4 inch is outside what these hangers are cut for.

Projection is 2-1/2 inches from the mounting surface. That is the clearance you need to plan for between the wall or header and anything in the door's path, including casing, base trim, light switches, and the swing of an adjacent door.

The kit ships with two hangers on quiet bearing wheels, the pre-drilled steel track, standoffs and lag bolts, two door stops, one floor T-guide, anti-jump discs, and the bolts, nuts and washers. The door slab itself and the pull or handle are not part of it, so order those separately.

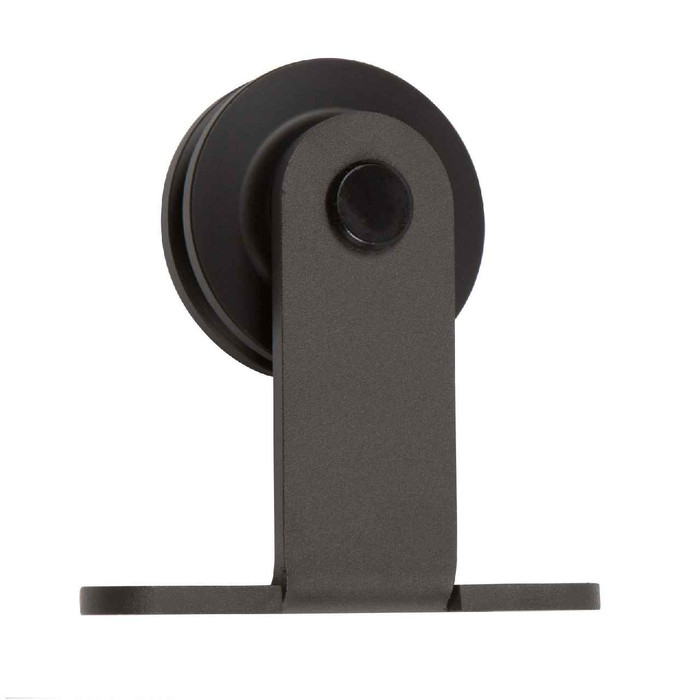

No floor track is needed. The Delaney 3000 Series is top-mount, and the door is kept from swinging at the bottom by the included T-guide, which mounts to the floor and rides in a groove routed into the bottom edge of the slab. Plan on routing that groove if your door does not already have one.

The Pemko LP200A6 is the nearest match in both length and style: it is a low profile concealed sliding door track system at 72 inches with a 200 lb capacity, the same 6 foot run as the Delaney BD3064 low-profile top-mount kit. The Emtek B13030 flat track barn door hardware is also a low profile concealed wheel design in steel, so it keeps the same hidden-roller look if you prefer that brand.

The BD3064 kit ships with two hangers, one steel pre-drilled track, two door stops and a single door T-guide, which is a single-door configuration. For a two-panel opening, the Sure-Loc BARN-2KIT72 is a double door barn door track system with strap roller at 72 inches and is built for that arrangement.

The BD3064 hangers are specified for doors 1-3/8 inch to 1-3/4 inch thick, so a heavier or thicker slab falls outside that range. For a thicker or heavier panel, look at a system rated for the load you are hanging, such as the Pemko LP200A6 concealed sliding door track system rated at 200 lb capacity, and confirm the slab weight before ordering.

Anti-jump discs are included and fit at the hangers to keep the wheels captive on the rail if the door is pushed hard or bounced, which is the failure people run into in rentals and high-traffic spaces. Two door stops are also supplied to limit travel at each end.

The Delaney 3000 Series is a low-profile top-mount design, so the hanger hardware stays tight to the top of the door and reads as a slim line rather than a decorative feature. Strap roller systems such as the Sure-Loc Barn Door Track System with Strap Roller, 72 inch stainless, put a visible strap down the face of the door for a more traditional barn look. Same function, different appearance.

The Delaney BD3064 uses a steel track in a US19 black finish. For a corrosion-resistant rail - a consideration in a damp or coastal facility - the Sure-Loc BARN-5KIT72 is a stainless steel barn door rail system at 72 inches supplied with a mounting hardware kit. The Sure-Loc BARN-KIT72 is also stainless and adds a strap roller.

No. The Sure-Loc BARN-CONNECT is only a rail connector for sliding barn door track systems - a splice piece, with no track, hangers or stops. The Delaney BD3064 is a complete kit with two hangers, pre-drilled steel track, standoffs and lag bolts, two door stops, a T-guide, anti-jump discs and the bolts, nuts and washers. Order the connector as an accessory, never in place of a kit.

The BD3064 has a product depth of 2-1/2 inches, which is the projection off the wall you need to allow for the track, standoffs and door slab. If the opening has trim or a light switch that will not tolerate that projection, the concealed low-profile systems are the direction to look - the Emtek B13030 flat track hardware and the Pemko LP200A6 are both low profile concealed designs.

The BD3064 is supplied in US19 black, a flat black finish. If you are standardizing across several units, ordering the same 3000 Series kit for each opening is the way to keep the track, hangers and stops consistent, since finish naming varies between manufacturers.

The Delaney BD3064 is supplied as a 6 foot kit and its parts list does not include a joining piece. If you need to splice rails on a long opening, Sure-Loc sells a rail connector for sliding barn door track systems, intended for its own track profile.
