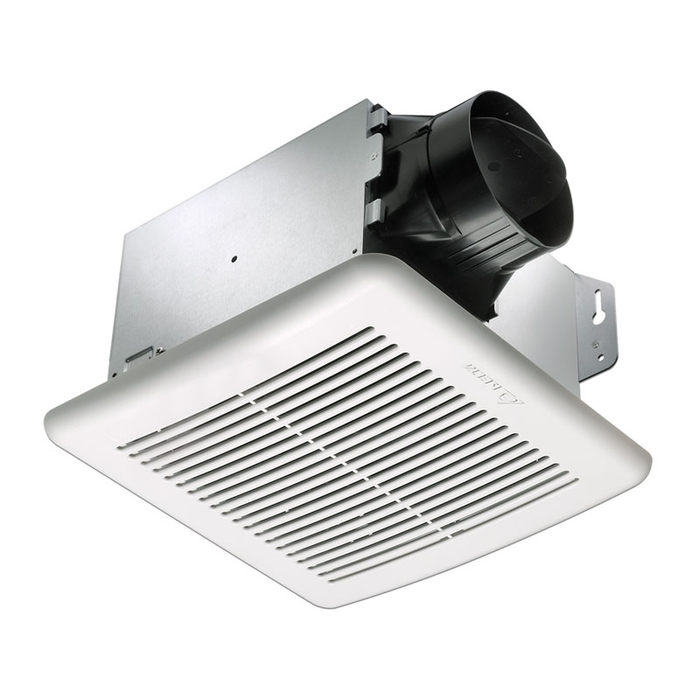

Delta Breez GreenBuilder Ventilation Fans - GBR80H - 80 CFM with Humidity Sensor

Delta Breez GreenBuilder Ventilation Fans - GBR80H - 80 CFM with Humidity Sensor

(No reviews yet) Write a Review

Model: GBR80H
From the BreezGreenBuilder Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$145.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The Builder’s Choice for Green Construction.
Delta BreezIntegrity ITG80H is ENERGY STAR qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and loudness rating of 1.5 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of not more than 10.0 Watts with efficiency rating of 9.0 CFM/Watt. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

  • 80 CFM single speed fan for spaces up to 80 Sq. Ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Quiet at 0.8 sone.
  • Energy star®-qualified.
  • Built-in adjustable humidity sensor so that fan runs at full speed (80 CFM) when humidity is above the user-adjustable set-point and runs continuously at a pre-set lower level (0 or 50 CFM) when humidity is below the set-point.
  • Compact housing for easy retrofit and replacement of older bath fans.
  • Housing size 8-1/4" x 8" x 5-3/4".
  • 4" duct.
  • UL and cUL listed for ceiling and wall mount installations.
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
  • 3 yr. limited warranty.

Product Specs

Subcategory:
BreezGreenBuilder
Fan Speed:
Continous Low Speed/Full Speed
Maximum CFM:
64
Sones:
<0.3 - 1.5
Current:
0.22 Max
Duct Diameter:
4"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezGreenBuilder
Product Voltage:
120/60
Product Height:
5-3/4"
Product Category:
Ventilation Fans
Product Width:
10-3/4"
Department:
Plumbing
Product Wattage:
4.0 - 5.4
Product Depth:
10-3/4"

Delta Breez GBR80H – Frequently Asked Questions

1) Will the Delta Breez GBR80H fit in the opening left by an older bath fan I'm replacing?
The GBR80H uses a compact housing measuring 8-1/4" x 8" x 5-3/4", which Delta calls out for retrofit and replacement of older bath fans. The visible grille covers a larger footprint at 10-3/4 by 10-3/4 inches, so it hides some ragged drywall from the old unit. Depth is the number to check first in a shallow joist bay: 5-3/4 inches of housing height has to clear.
2) Can a bath fan with a humidity sensor be mounted over a tub or shower?
The GBR80H is UL and cUL listed for use in a tub or shower enclosure, but only when the branch circuit feeding it is GFCI protected. Outside the enclosure it's listed for both ceiling and wall mount, so a wall install on an exterior wall is fair game.
3) How does the humidity sensor on the Delta Breez GBR80H actually work day to day?
Two speeds, and the sensor picks between them. Below the set point the fan runs continuously at a pre-set lower level, either off or roughly half output. When humidity climbs past the user-adjustable set point, it kicks to full speed until the room dries out. The set point is adjustable at the fan, so you can dial it back in a humid climate where a factory setting would leave it running full tilt all summer.
4) Do I need a separate switch or timer to run the GBR80H, or can it run off the existing single wall switch?
Because the humidity sensor drives the speed change itself, the fan doesn't need a humidistat switch or a countdown timer added at the wall. Delta publishes a single wall switch set-up sheet for it, so an existing single switch feed can be wired to it. Power is 120V, 60Hz, drawing 0.22A max.
5) How big a bathroom will an 80 CFM Delta Breez fan handle?
Delta rates the GBR80H at 80 CFM for spaces up to 80 square feet, which covers most single-occupant baths and typical apartment and hotel bathrooms. Bigger than that, or a bath with a separated toilet compartment or steam shower, and you're either stepping up in CFM or running two units.
6) Is the Delta Breez GBR80H quiet enough for a bedroom-adjacent bathroom or a hotel guest room?
Sound output runs from under 0.3 sone at the low continuous setting to 1.5 sone at full speed. At the low setting it's essentially inaudible through a wall, which is the point of a continuously running fan in a multi-family or hospitality build; it only gets to 1.5 sone when the sensor calls for full airflow.
7) Does the GBR80H bath fan qualify for ENERGY STAR credit on a green building project?
Yes, the GBR80H is ENERGY STAR qualified. Draw is 4.0 to 5.4 watts depending on which speed it's running, and the DC brushless motor is engineered for a minimum 70,000 hours of continuous operation. That combination is what makes running it 24/7 for whole-house ventilation practical rather than a power bill problem.
8) Should I use a humidity-sensing bath fan or a plain single-speed fan with a timer switch?
A plain fan on a timer runs for a fixed period whether the room is wet or not, and it does nothing between uses. The GBR80H instead ventilates continuously at a low, near-silent level and boosts to full 80 CFM only when moisture rises. For a rental or a facility where nobody is going to touch the switch correctly, the sensor version is the one that keeps the moisture out of the drywall. For a powder room with no shower, the moisture logic buys you little and a straight single-speed fan is the simpler spec.
9) Where can I get the installation instructions and specs for the Delta Breez GBR80H before I rough in?
Delta publishes an installation manual, a family spec sheet, and a single wall switch set-up sheet for the GBR80H. Pull the installation manual before framing the ceiling opening so the 8-1/4" x 8" x 5-3/4" housing and the 4 inch duct takeoff land where you want them.
