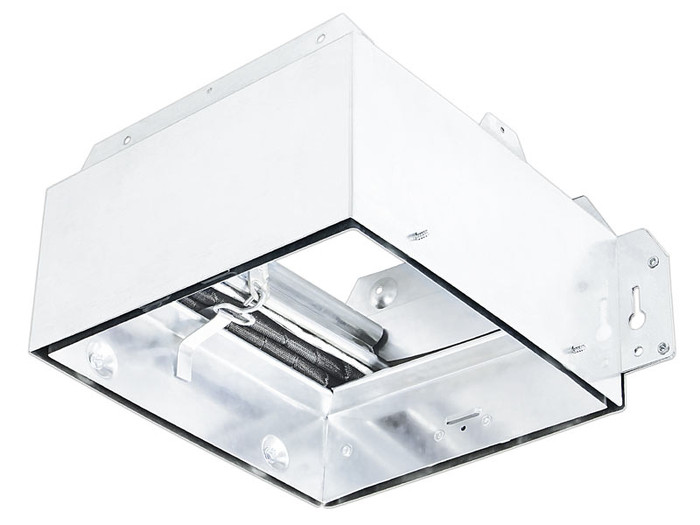

Delta Breez Integrity - ITG-CRD Ceiling Radiation Damper

Delta Breez Integrity - ITG-CRD Ceiling Radiation Damper

(No reviews yet) Write a Review

Model: ITG-CRD
From the BreezIntegrity Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$94.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ITG-CRD Ceiling Radiation Damper helps to limit the radiant heat transfer through an air inlet/outlet opening in the ceiling membrane. Fire resistance is rated up to 3 hours floor/ceiling or roof/ceiling assemblies.

Features

  • UL and cUL listed and exceeds UL 555C for use in 3-hour fire rated assemblies
  • Warnock-Hersey certified for use in fire rated floor/ceiling or roof/ceiling assemblies. Warnock Hersey listing #: 102881542SAT-001
  • CSFM listing: 3226-0368:104
  • UL 555C listing: R27832
  • Meets NFPA Standards: 90A and 101
  • Meets Building Code Standards: IBC, NBC, NFPA, SBC, and UBC
  • UL listed as fan/damper assembly for the following Wood Frame Construction designs: L521, L546, L558, L562, L574, L576, L581, L583, L585, P522, P533, P538 and P545
  • Intended for installation with the following UL Listed Delta Electronic Fan Models ITG100, ITG80, ITG50, ITG80H, ITG80LED, ITG70LED, and ITG50LED.

Product Specs

Subcategory:
BreezIntegrity
Duct Diameter:
4"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Accessories
Collection:
BreezIntegrity
Product Type:
Damper
Product Height:
5-5/8"
Product Category:
Ventilation Fans
Product Width:
8"
Department:
Plumbing
Product Depth:
8-1/2"
Parts and Accessories Type:
Grille
Application:
Ventilation Fan

Delta Breez ITG-CRD – Frequently Asked Questions

1) Do I need a ceiling radiation damper with a Delta Breez Integrity bath fan in a fire rated ceiling?
If the fan penetrates a fire rated floor/ceiling or roof/ceiling assembly, yes. The ITG-CRD is the damper that closes that opening off and limits radiant heat transfer through the ceiling membrane, and it is rated for assemblies up to 3 hours. It is UL and cUL listed and exceeds UL 555C for 3-hour fire rated assemblies, with UL 555C listing R27832. Without it, the fan opening breaks the rated membrane.
2) Is the ITG-CRD approved for use in wood frame construction assemblies?
It is UL listed as a fan/damper assembly for wood frame construction designs L521, L546, L558, L562, L574, L576, L581, L583, L585, P522, P533, P538 and P545. If the assembly on the drawings is one of those UL designs, the fan and damper together are covered as a listed assembly. That is the detail an inspector will ask for.
3) How much space do I need above the ceiling to install the ITG-CRD damper?
Plan the joist bay and plenum space around 8 x 8-1/2 x 5-5/8 inches, which is the damper's stated size. The damper sits between the fan housing and the ceiling opening, so that height has to clear above the finished ceiling in addition to the fan body itself. Worth checking on shallow bays before the ceiling closes up.
4) Is the installation different for combustible versus non-combustible ceiling construction?
Yes, and the ITG-CRD ships with separate procedures for each. Delta publishes one installation manual for combustible construction (wood framing) and a second for non-combustible construction, and the mounting detail differs between them. Match the manual to the assembly you are cutting into, because following the wrong one can void the listed assembly.
5) Is the ITG-CRD a fire damper for the duct, or something different?
It is a ceiling radiation damper, not an in-duct fire damper. Its job is the ceiling membrane: it limits radiant heat transfer through the air inlet/outlet opening cut into a rated floor/ceiling or roof/ceiling assembly. A duct-mounted fire damper protects a penetration through a rated wall or shaft, which is a different application entirely. If what you are protecting is the ceiling plane where a bath fan drops in, the ceiling radiation damper is the correct type.
6) Do I order one ITG-CRD per bathroom fan, or does one cover a run of fans?
One per fan. The damper protects the single ceiling opening the fan penetrates, and it is listed as a fan/damper assembly with a specific Delta Integrity fan, so a building with twelve rated bathroom ceilings needs twelve dampers. Property managers standardizing an apartment building can order the same ITG-CRD against every ITG100, ITG80 or ITG50 in the fleet.
