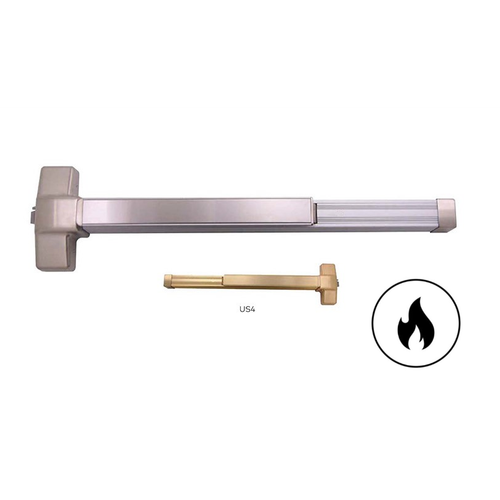

DESIGN HARDWARE 1000 SERIES HEAVY DUTY RIM EXIT DEVICE
Specifications:
ANSI: Meets ANSI - A156.3 - Grade 1 Standards
UL Listings: UL Listed for Panic Exit Hardware
(Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on rated devices)
ADA: Meets ADA requirements ANSI A117.1 with Lever Trim
Handing: Non Handed • Completely Reversible
Construction: Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
Finishes: US3, US4 , US10B, US26 & US32D on Headcover, Pushbar & End Cap
Marine Grade: Marine Grade 316 Stainless Steel option available
Latchbolt: Deadlocking latchbolt with 5/8” projection
Strike: Roller Stike with 5/8” projection & 1/8” shim
Dogging: 5/32” Hex Key Dogging Standard on Panic Exit Hardware only
Cylinder Dogging: Cylinder Dogging Kits available for new or existing exit devices
Device Lengths: 33” for 3’-0” wide doors and 42” for 3-8” to 4’-0” wide doors
Min. Door Width: 33” device can be cut down to fit on 2’-8” wide door
42” device can be cut down to fit on 3’-4” wide door
Center Case Dim.: 8” Height x 2 7/8” Wide x 2 13/16” Thick - 4 1/2” Minimum stile required
Mechanism Case Dim.: 2-3/16” Height x 2 3/16” Wide
Projection: 3-3/8” Undogged • Pushbar Neutral & 2 13/16” Dogged • Pushbar Depressed
Fasteners: Wood, Machine & Self Tapping Machine Screws (F1000R includes thru bolts)
Trim & Accessories: ASA & latch fillers included, Exterior Trims, Shim Kits & other accessories available
Alarmed Exits: Exit Alarm Kit ALK-1000 available for new or existing devices
Electrification: ELR • Motorized Electric latch retraction, ED• Electric dogging, REX• Request to exit, LBM - Latch bolt monitoring available, See electrified section
Warranty: Limited Lifetime Warranty
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Series:
- 1000R Series
- Features:
- Completely Reversible, Simplest and Easiest to Maintain, Extruded Anodized Aluminum Channel, Limited Lifetime Warranty
- Stile Width:
- 4-1/2"
- Application:
- Medium to Heavy Use
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Subcategory:
- Rim Exit Devices
- Latch Throw:
- 5/8"
- ANSI/BHMA:
- ANSI A156.2 - Grade 1 Standards, UL Listing for Panic Exit Hardware, Meets ADA requirements ANSI A117.1 with Lever Trim
- Commercial/Residential:
- Commercial
- Wood Door Compatible:
- No
- Product Model:
- 1000R
- Product Size:
- 33"
- Dogging Configuration:
- Hex Key Dogging
- Product Dimension:
- 8" Height x 2-7/8" Wide x 2-13/16" Thick
- Fire Rating:
- No
- Latch Specification:
- Deadlocking
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
Design Hardware 1000R-33-32D – Frequently Asked Questions
1) Will the Design Hardware 1000R 33-inch rim device fit a 3'-0" door, and can it be cut down for a 2'-8" door?
The 33 inch length of the 1000R is sized for 3'-0" wide doors, and it can be cut down to fit a door as narrow as 2'-8". For doors from 3'-8" to 4'-0" wide, order the 42 inch device instead (that one cuts down to 3'-4").
2) What is the minimum stile width for the 1000R rim exit device?
You need at least a 4-1/2 inch stile. The center case measures 8" high x 2-7/8" wide x 2-13/16" thick, so anything narrower than 4-1/2 inches won't take it. On a narrow stile aluminum storefront door, go with a narrow stile device such as the Adams Rite 8700 Series or the TownSteel ED3700 instead.
3) Will the 1000R latch into my existing rim strike?
The 1000R uses a deadlocking latchbolt with 5/8 inch projection and ships with a roller strike that also has 5/8 inch projection plus a 1/8 inch shim. If your existing strike was set for a 5/8 inch rim latch, the geometry matches; if the frame gap is off, use the supplied shim or one of the shim kits. ASA and latch fillers are included in the box for covering old mortise lock prep.
4) I need a rim exit device on a fire rated opening. What should I order instead of the 1000R 33 inch hex key dogging device?
The 1000R with hex key dogging is a non fire rated panic device, since dogging is not permitted on rated devices. For a labeled opening, use a device catalogued as fire rated: the Dexter ED1000 Series fire rated rim device is Grade 1, the Adams Rite 3700 Series 30 inch narrow stile rim device is Grade 1 and fire rated, and the Marks USA M9900F is offered in 36 inch and 48 inch fire rated exit only versions. Arrow's FS1250 is a 32 inch fire rated rim device and Orca's OED85 is a 36 inch fire rated rim device.
5) What is the closest equivalent to the Design Hardware 1000R 33 inch rim exit device from another brand?
The Design Hardware 1000R is a Grade 1 rim exit device rated for medium to heavy use with hex key dogging. The Stanley Security QED211 is also a Grade 1 heavy duty rim exit device with hex-key dogging, and the Dormakaba QED200 is a Grade 1 heavy duty rim device supplied as a 36 inch device. TownSteel's ED1100 is a 36 inch Grade 1 heavy duty panic rim device on a wide stile pushpad. All three are non fire rated Grade 1 rim devices like the 1000R.
6) My aluminum storefront door has less than 4-1/2 inches of stile. What rim device works there instead of the 1000R?
The 1000R center case requires a 4-1/2 inch minimum stile, so a true narrow stile door needs a different device. Narrow stile rim options include the Adams Rite 8800 Series 30 inch device for 1-3/4 to 2-1/4 inch doors, the Corbin Russwin ED4200 Grade 1 36 inch narrow stile device for 1-3/4 inch doors, the Falcon 19-R exit only 36 inch narrow stile device, and the TownSteel ED3700 36 inch Grade 1 narrow stile device.
7) My door is 4 feet wide. Is the 33 inch 1000R still the right device?
No. The 33 inch 1000R covers 3 foot 0 inch doors and can be cut down to a 2 foot 8 inch door; the 42 inch length of the same series covers 3 foot 8 inch through 4 foot 0 inch doors. Other brands cover that width with 48 inch devices such as the Cal-Royal A9820 48 inch exit only device, the Corbin Russwin ED3200 48 inch crossbar rim device, the Dormakaba 9300 48 inch wide stile device, and the Dexter ED1000 4FT Grade 1 rim device.
8) Do I need to specify handing when ordering the 1000R rim device?
No handing to specify. The 1000R is non-handed and completely reversible, so one device covers left and right hand openings. That simplifies stocking if you are standardizing across a building.
9) How far does the 1000R push bar stick out into the opening?
Projection is 3-3/8 inches with the bar neutral and undogged, dropping to 2-13/16 inches with the bar depressed and dogged. Use the 3-3/8 inch figure when you are checking clearance to a vestibule wall, a second leaf, or an adjacent door swing.
10) How does the dogging work on this device, and can I convert it to key dogging later?
Dogging is 5/32 inch hex key, standard on the panic (non fire rated) device, so you hold the latch retracted during business hours with the supplied hex wrench. If you want a keyed cylinder to do that instead of a hex key, cylinder dogging kits are available and can be fitted to new or existing devices.
11) Does the 1000R meet ADA for an entry that needs lever operation from outside?
With lever trim, the 1000R meets ADA requirements under ANSI A117.1. The device itself is a Grade 1 panic device and is UL Listed for panic exit hardware. Exterior trims are ordered separately, so specify the lever trim if ADA compliance on the pull side matters.
12) What do I need to add if I want an alarmed or electrified exit?
For a local alarm, the ALK-1000 exit alarm kit fits new or existing 1000 Series devices. For access control tie-ins the device can be ordered electrified: ELR motorized electric latch retraction, ED electric dogging, REX request to exit, and LBM latch bolt monitoring.
13) How does the Design Hardware 1000R compare to other Grade 1 wide stile rim devices?
The 1000R is a push bar rim device for 4-1/2 inch or wider stiles with hex key dogging standard. Close alternatives in the same class include the TownSteel ED1100, the Corbin Russwin ED5200 wide stile, the Dormakaba 9300, and the Detex 10 Advantex, all Grade 1 wide stile rim devices. If you prefer a crossbar look rather than a push bar, the Corbin Russwin ED3000 and the CRL Jackson 1095 are crossbar rim panics.
14) Can a rim device like the 1000R be used on a pair of doors?
A rim device latches into a strike on the frame or on a mullion, not at the head and sill, so on a pair you need a removable mullion for the 1000R to strike against. If you cannot use a mullion, look at a vertical rod device instead, such as the Hager 4501 concealed vertical rod for wide stile doors.
15) Is a Cal-Royal 5000 a direct substitute for the Design Hardware 1000R?
Not on a Grade 1 spec. The 1000R meets Grade 1 standards, while the Cal-Royal 5000 36 inch touch bar rim device carries a Grade 2 chassis, as does the Cal-Royal 5500 48 inch push bar device. Both Cal-Royal units are non fire rated and not for wood doors. If the drawing calls for ANSI Grade 1, stay with a Grade 1 device such as the Corbin Russwin ED5200 36 inch rim device or the Dexter ED1000 3FT rim device.
16) What should I use instead of the 1000R if the opening needs an electrified exit device tied to access control?
The 1000R offers electrified options such as motorized electric latch retraction, electric dogging, request to exit and latch bolt monitoring as separate configurations. If you want a device supplied electrified, the Dormakaba E2103 is a 36 inch electrified rim device with 4908A classroom function trim, and the SDC S6136 Spectra is a 36 inch electrified architectural rim device with a 4 inch wide stile for 1-3/4 to 2 inch doors. SDC also offers the MSB550 mechanical switch bar and the PSB560 pressure sense bar in 36 inch for narrow or wide stile, which release an electromagnetic lock rather than throwing a latchbolt.
17) Which comparable rim devices look like the 1000R but will not latch a door the same way?
Two categories to watch. The Detex Advantex 00 Series is a wide stile dummy exit device, so it provides the push bar appearance without exit device latching. The Sargent 12-8810-LTRIM is also catalogued with a dummy function, on a fire rated wide stile body. The 1000R by contrast carries a deadlocking latchbolt with 5/8 inch projection and a roller strike.
18) For a high traffic school or stadium exit, is there a heavier device than the 1000R?
The 1000R is rated for medium to heavy use on a steel chassis with an extruded anodized aluminum channel. If you want a step up in duty rating, Detex lists the Advantex 10 Series 36 inch wide stile and the Advantex 40 Series narrow stile as extra heavy duty Grade 1 rim devices, and the Detex V4003A wide stile device is a Grade 1 exit only unit with night latch trim.
19) The opening needs vertical rod latching top and bottom, not a rim strike. What do I use instead of the 1000R?
The 1000R is a rim device that latches into a roller strike on the frame at the latch height. For a pair of doors or an opening requiring top and bottom latching, the Hager 4501 Series 36 inch concealed vertical rod device with a wide stile pushpad and the Hager 4601 Series 36 inch narrow stile concealed vertical rod device are both Grade 1 and non fire rated.
20) Does Falcon or Arrow have a narrow stile rim device that matches the 1000R Grade 1 rating?
Falcon's narrow stile Grade 1 rim devices include the 1590EO and 1790EO in 42 inch exit only for 1-3/4 inch doors, and the 19-R exit only 36 inch. Arrow's 4800 Series 36 inch narrow stile exit only device is listed for 1-3/4 inch doors and is non fire rated, as is the Arrow ED910 36 inch rim device. The 1000R itself meets Grade 1 standards but needs a 4-1/2 inch minimum stile, so these narrow stile units serve a different door.
21) What finishes does the Design Hardware 1000R come in?
Five: 605 bright brass, 606 satin brass, 613 dark bronze, 625 bright chrome, and 630 satin stainless steel. The finish is applied to the head cover, push bar and end cap. There is also a marine grade 316 stainless steel option if the opening is coastal or otherwise corrosive.
22) What fasteners come with the 1000R and do I need thru bolts?
Wood, machine and self tapping machine screws are supplied with the 1000R. Thru bolts are included with the F1000R version. Body is extruded anodized aluminum channel over a steel chassis, rated for medium to heavy use commercial traffic.
23) I want a crossbar instead of a push bar. What replaces the 1000R?
The 1000R uses a pushbar with a headcover and end cap. For a crossbar look, the CRL Jackson 1095 Series 48 inch crossbar rim panic device and the Corbin Russwin ED3200 48 inch crossbar rim device are both wide stile, non fire rated exit devices. CRL also offers the 1095P paddle version and the 1295 Series non-handed push pad device for 1-3/4 inch doors.
