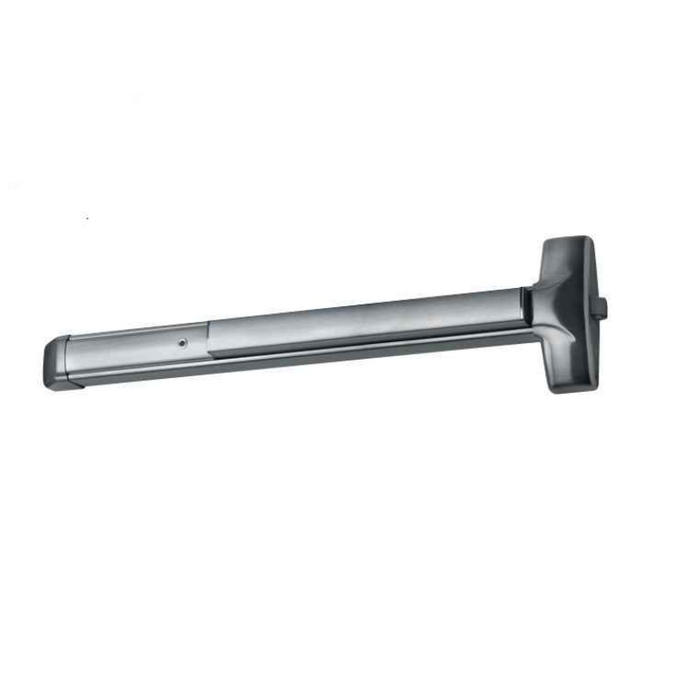

Detex 1014D Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Lever Always Active

Detex 1014D Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Lever Always Active

(No reviews yet) Write a Review

Model: 1014D-628-36
$2,503.00
$2,481.06
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,503.00
$2,481.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Lever Always Active

Professional Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware engineered for single and double doors with mullions. This Grade 1 certified device features a patented mounting plate and strike locator system for precise installation, tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing. Built with stainless steel components and PVD finishing over stainless steel for exceptional durability in high-use, high-abuse commercial environments.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-traffic applications.
  • Wide Stile Compatibility: Specifically designed for wide stile door configurations with field-sizeable design for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Premium Construction: All exposed surfaces finished over stainless steel with PVD environmentally-friendly finishing process and stainless steel deadlocking Pullman-type latch bolt.
  • Heavy-Duty Protection: Angled end cap deflects damage away from device while non-handed design provides installation flexibility.
  • Service-Friendly Design: Outside trims are easily changed or re-keyed without removing device from door, and minimal door prep saves installation time and money.
  • Lever Always Active Function: Provides consistent egress operation with lever functionality always available for reliable emergency exit performance.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Lever Always Active
  • Product Group: Exit Devices and Trim
  • Product Model: 1014D
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions, taking advantage of minimal door prep requirements.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, utilizing the field-sizeable design capabilities.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 10 Series exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance and fast, accurate installation are essential.

DETEX 10 Series Rim Exit Device

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Also available weatherized

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Patented mounting plate and strike locator system replaces paper templates

• Fast and easy installation saves time and money
• Minimal door prep saves time and money

• Outside trims are easily changed or re-keyed without removing device from door
• Heavy duty angled end cap deflects damage away from device

Features

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process

• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
• Non-handed

• Stainless steel deadlocking, Pullman-type latch bolt
• Field sizeable
• 1/8 turn hex or cylinder dogging

Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1014D
Product Function:
Lever Always Active
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1014D-628-36 – Frequently Asked Questions

1) Can the Detex 1014D Advantex rim exit device be used on a wood door?
No. The 1014D Advantex is not wood door compatible, so it is for hollow metal and aluminum openings only. If the opening is a wood door, look at a rim device rated for wood, such as the Adams Rite 3700 Series fire-rated narrow stile rim device or the Adams Rite 8700 Series, both of which are listed as wood door compatible.
2) Can the Detex 1014D secure a pair of doors?
Yes, on a pair with a mullion. The 10 Series is rim panic and fire exit hardware for single doors and for double doors used with a mullion, because a rim device latches into a strike on the frame or mullion rather than at the head and sill. For a pair with no mullion and a clear opening, you need vertical rod hardware instead, such as the Hager 4501 concealed vertical rod wide stile device.
3) What do I have to specify when ordering a Detex 1014D?
Four choices are required on the order plus the options. Dogging: hex, cylinder, or less/no dogging. Handing: right hand reverse or left hand reverse. Strike: 99 surface or 98 semi-mortise. Device length: 36 inch or 48 inch. Then choose the rating (non-rated, fire rated, hurricane rated, or hurricane and fire rated), the finish, and any electrified option.
4) Does the Detex 1014D come fire rated?
Yes. The 10 Series is panic and fire exit hardware and the 1014D can be ordered non-rated, fire rated, hurricane rated, or hurricane and fire rated. Note that on a fire rated opening you cannot use dogging, so order the less/no dogging option for fire doors.
5) What does "lever always active" mean on the Detex 1014D?
The outside lever is always free to retract the latch, so anyone can pull the door open from the outside at any time without a key. It is the passage-style trim function, used where you want controlled egress hardware on the inside but no locking from the outside. If you need the outside lever to lock, specify a keyed function instead.
6) I need a coastal exit door that meets hurricane requirements. Does the Detex 1014D cover that?
Yes. The 1014D can be ordered hurricane rated, or hurricane and fire rated together for an opening that has to satisfy both. None of the comparable rim devices we carry list a hurricane rating, so this is the specific reason the Advantex gets used on Gulf and Atlantic coast projects.
7) My door has a narrow stile - what rim exit device should I use instead of the Detex 1014D?
The 1014D Advantex is built for wide stile doors, so on a narrow stile aluminum door look at a narrow stile rim device instead. The Adams Rite 8800 Series 30 inch is Grade 1 narrow stile and covers 1-3/4 to 2-1/4 inch doors; the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device at 36 inches for 1-3/4 inch doors; the TownSteel ED8900 is a 36 inch heavy duty Grade 1 narrow stile rim device. For a narrow stile opening that also needs a fire label, the Adams Rite 3700 Series 30 inch is fire rated and Grade 1.
8) What is the closest Grade 1 wide stile rim exit device to the Detex 1014D from another manufacturer?
The Von Duprin 22-3FT is the nearest straight equivalent: a 36 inch non-handed wide stile pushpad rim exit device carrying a Grade 1 rating on 1-3/4 inch doors. The Detex 1014D Advantex is also a Grade 1 wide stile rim device and comes in 36 inch and 48 inch sizes, so the 22-3FT matches only the 36 inch opening. Other Grade 1 wide stile rim options include the Corbin Russwin ED5200 at 36 inches and the Dormakaba 9300 series at 48 inches, which lists a 1-3/4 to 2-1/4 inch door thickness range.
9) Which fire rated rim exit devices compare with the fire rated Detex 1014D?
The 1014D Advantex can be ordered fire rated, and also in a hurricane rated or combined hurricane and fire rated configuration. If you are shopping fire rated rim devices from other makers, the Marks USA M9900F comes in 36 inch and 48 inch fire rated exit-only versions, the Dexter ED1000 Series is offered as a Grade 1 fire rated rim device, the Orca OED85 is a 36 inch fire rated rim device, and the Arrow FS1250 is a 32 inch fire rated rim device. Hurricane rating is specific to the Detex configuration, not something those peers list.
10) Is an SDC exit bar a substitute for the Detex 1014D rim exit device?
No, they solve different problems. The 1014D Advantex is a rim exit device with a deadlocking Pullman-type latch bolt that latches into a strike. The SDC MSB550 Series 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 Series 36 inch is a pressure sense bar; both fit narrow or wide stile doors but depend on a separate locking device. If you want an electrified rim device that still latches, the SDC S6136 Spectra is a 36 inch electrified architectural rim exit device for 4 inch wide stile and 1-3/4 to 2 inch doors, or order the 1014D with delayed egress, electric dogging, request to exit signal switch, or hardwired electric alarm.
11) Do I need to pick a handing for the Detex 1014D even though it is non-handed?
The device chassis itself is non-handed, but the order still asks for right hand reverse or left hand reverse because the lever trim and strike installation follow the door swing. Exit doors are always reverse bevel, so an outswinging door with hinges on your right as you stand outside is right hand reverse.
12) Which strike do I order for a Detex 1014D, the 99 surface or the 98 semi-mortise?
The 99 surface strike mounts on the face of the frame stop and needs no frame cutting, which is the usual retrofit choice. The 98 semi-mortise recesses into the frame for a flatter, cleaner look and is the one to use when frame projection is tight or when the spec calls for a mortised strike. Both are offered on the 1014D.
13) Can I hold the Detex 1014D latch retracted for daytime free access?
Yes, on non-fire openings. The 10 Series offers 1/8 turn hex dogging or cylinder dogging to hold the pushpad down and the Pullman latch retracted. If you want that done on a schedule from an access control system, order the electric dogging option instead of mechanical.
14) What electrified options can I get on the Detex Advantex 1014D?
Four: delayed egress, electric dogging, hardwired electric alarm, and a request-to-exit signal switch, or you can order it with none. Delayed egress is the choice for retail back doors and memory care corridors where you need the 15 second hold; RX is what you add when the access control panel needs to see the bar pushed so it does not report a forced door.
15) Will the Detex 1014D fit a 42 inch door?
Yes. The 1014D is field sizeable, and the 36 inch device covers standard 36 inch leaves while the 48 inch device is cut down to suit wider openings up to 48 inches. Order the 48 inch for anything over a 3 foot leaf.
16) Is the Detex 1014D heavy duty enough for a school or stadium exit door?
It is built for that. The Advantex 10 Series is Grade 1 and tested beyond 1,000,000 cycles, twice the cycling required for Grade 1 UL testing, with a stainless steel deadlocking Pullman latch and an angled end cap that takes abuse away from the device. That is the reason it gets specified on high-abuse openings over a Grade 2 device like the Cal-Royal 5000.
17) What is a simpler alternative to the Detex 1014D if I only need exit-only hardware with no outside lever?
The 1014D Advantex is configured with a lever that is always active on the outside. If the opening only needs egress with no outside trim, exit-only rim devices include the Corbin Russwin ED2200 36 inch Grade 1 wide stile, the Sargent 2828 Grade 1 reversible wide stile device for 48 inch minimum door width, the Imperial USA ED-501 36 inch Grade 1 wide stile, and the Marks USA M9900 36 inch. Those devices do not carry an outside lever function.
18) What is a lower-grade alternative to the Detex 1014D for a light traffic door?
The Detex 1014D Advantex is a Grade 1 device described as tested beyond 1,000,000 cycles. Where a lighter chassis suits the opening, the Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch push bar rim device also rated Grade 2. The Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging.
19) Is a concealed vertical rod device an alternative to the Detex 1014D?
Only if the opening calls for top and bottom latching rather than a single rim latch. The 1014D Advantex is a rim device that latches to a strike on the frame or to a mullion on a pair. The Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 Series 36 inch is the Grade 1 narrow stile concealed vertical rod version. Those require a door prepped for rods and top and bottom strikes, which is a different door prep from the rim device.
20) Which other wide stile rim exit devices come in a 48 inch length like the Detex 1014D?
The 1014D Advantex is offered in 36 inch and 48 inch. Among other wide stile rim devices, the Dormakaba 9300 Series is a 48 inch exit-only Grade 1 device for 1-3/4 to 2-1/4 inch doors, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device, the Cal-Royal 5500 is a 48 inch push bar device, and the Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors.
21) I need a night latch function rather than an always active lever - what rim device does that?
The Detex 1014D Advantex is supplied with the lever always active, meaning outside access does not require re-locking behavior from a key. For a key-retracts-latch arrangement instead, the Sargent 8504 is a Grade 1 narrow design rim exit device with a night latch function. Note that it is a narrow stile device, so confirm your stile width before swapping it in for a wide stile opening.
22) What finishes does the Detex 1014D come in for matching existing hardware?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted, and 695 dark bronze painted. Exposed surfaces are finished over stainless steel using a PVD process, so the plated finishes hold up better than lacquered brass on a heavily used exterior door.
23) Can outside trim be rekeyed on a Detex 1014D without pulling the device off the door?
Yes. Outside trims on the Advantex 10 Series change or rekey with the device still mounted, which is what a property manager wants when a master key system gets rotated across a building. The installation uses a patented mounting plate and strike locator instead of a paper template, so the device also goes back on in the same holes.
