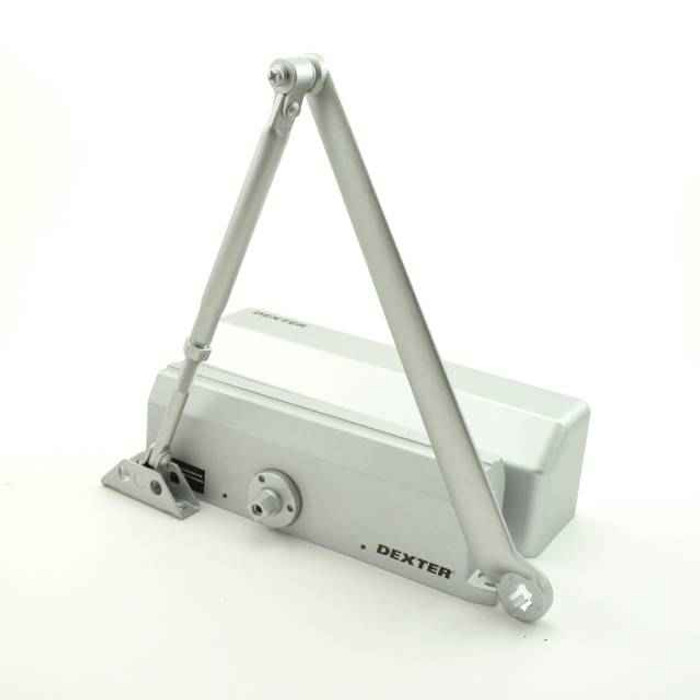

Dexter DCL2000 Series Light Duty Surface Door Closers
- Grade 1, UL / UL 10C Listed (non-hold open arms),ADA compliant at size 1;
- Adjustable spring size 1-6;
- 9-1/16" x 3/4" mounting hole pattern;
- Independent adjustment values: sweep speed,latch speed, and back-check
- Single piece, cast aluminum body;
- Universal hardware pack.
Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top
jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
