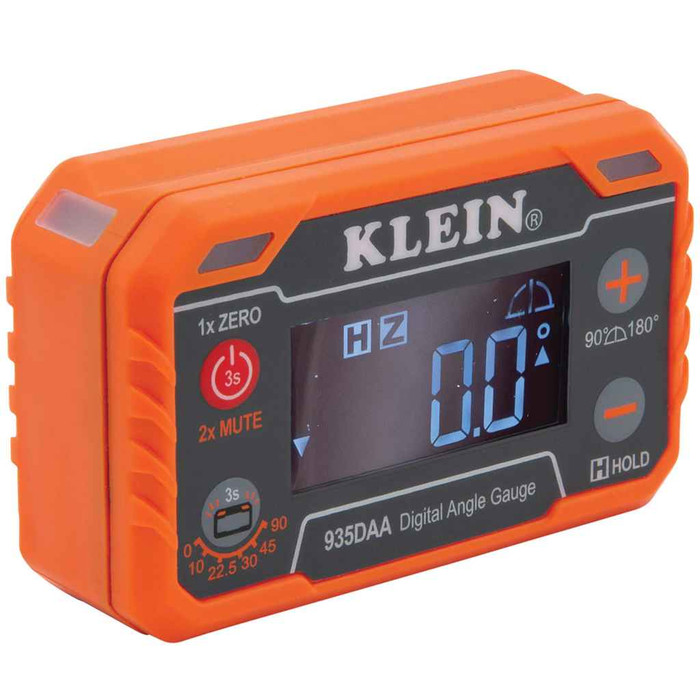

Digital Angle Gauge with Angle Alert
935DAA - spec sheet
Warnings
- Saw must be perfectly level for accurate use of product
Features
- Bright reverse contrast display is easy to see in all lighting conditions
- Strong magnetic base attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces
- Display auto-rotates when upside-down for easy viewing
- Water and dust resistant with rating of IP54
- 3 Color LED Alerts, V-grooves On Top and Bottom Faces, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast
- V-Grooves ensure a secure fit on the contours of conduit or pipe
- LEDs light up red, orange, or green based on how close the device's orientation is to the user defined angle
- This Digital Angle Gauge can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level
935DAA - spec sheet
Manufacturer Resources
Product Specs
- Accuracy:
- 0.1⁰ from 0⁰ to 1⁰ , 89⁰ to 91⁰, 179⁰ to 180⁰ and 0.2⁰ for all Other Angles (When Measuring Relative to the Magnetic Base)
- Batteries:
- 2 x 1.5 V AAA
- Drop Protection:
- 6.6' (2 m)
- Ingress Protection:
- IP54 - Water and Dust Resistant
- Low Battery Alarm:
- No
- Magnet Type:
- Permanent Rare-Earth
- Overall Height:
- 1.77" ( 4.5 cm)
- Overall Length:
- 1.02" (2.6 cm)
- Overall Width:
- 2.82" (7.2 cm)
- Department:
- Electrical
- Product Group:
- Test & Measurement
- Product Subgroup:
- Environmental Meters
- Product Type:
- Digital Level
- Product Details:
- Digital Level
- Product Height:
- 1.7700 in
- Product Material:
- PC/ABS Plastic Housing, TPR, PET and Electronic Components
- Product Weight:
- 0.1500 lbs
- Product Width:
- 1.0200 in
- Product Depth:
- 2.8200 in
Klein Tools 935DAA – Frequently Asked Questions
1) Will the Klein 935DAA digital angle gauge stick to a saw blade or a piece of conduit?
Yes. The 935DAA has a permanent rare-earth magnetic base that holds to saw blades, conduit, pipe, vents, ducts and other ferromagnetic surfaces. V-grooves machined into both the top and bottom faces let it seat on round stock like conduit or pipe without rocking, so you can read a bend angle right off the run. One caveat from Klein: for accurate blade bevel setting, the saw itself has to be perfectly level first.
2) What do the colored LEDs on the Klein 935DAA actually do?
The Angle Alert feature lets you set a target angle, then the three LEDs tell you how close you are without watching the numbers. Red means you are off, orange means you are getting there, green means you have hit the user-defined angle. Useful when your eyes are on the pipe bender or the blade instead of the display.
3) Can the Klein 935DAA be used as a plain digital level, not just an angle finder?
It works three ways. Measure or set an angle, check a relative angle using the zero calibration feature (zero it on an existing surface and read everything as a difference from that), or use it straight as a digital level. Dual ranges cover 0 to 90 degrees and 0 to 180 degrees.
4) Will the Klein 935DAA survive a jobsite, and can I read it overhead?
Rated IP54 for water and dust resistance and built to take a 6.6 foot (2 m) drop, with a PC/ABS plastic housing and TPR overmold. The reverse contrast display stays readable in bright sun or a dark crawlspace, and it auto-rotates when the gauge is upside down, so an overhead duct or an upside-down conduit run still reads right side up.
5) What batteries does the Klein 935DAA take, and does it warn you when they are low?
It runs on two 1.5 V AAA cells. There is no low battery alarm on the 935DAA, so if you are relying on it for a day of layout, carry a spare pair rather than counting on a warning.
