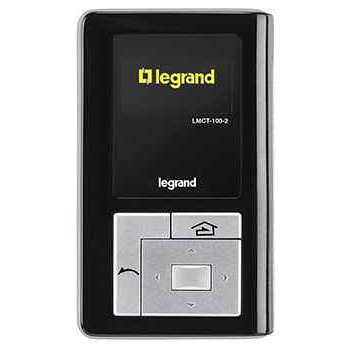

WattStopper LMCT-100-2 Digital Commissioning Tool with USB and Wireless Configuration
Professional Digital Lighting Management System Configuration Tool
The WattStopper LMCT-100-2 Digital Commissioning Tool delivers comprehensive configuration capabilities for Digital Lighting Management integrated control systems. This professional tool features wireless advanced configuration capabilities, 2-way IR communication for data management, and a micro-USB port for firmware updates, making it essential for configuring occupancy sensors, switches, room controllers, photosensors and DLM relay panels with precision and efficiency.
Professional Features & Benefits
- Micro-USB Port: Enables easy firmware updating to maintain optimal performance and access to latest features
- 2-Way IR Communication: Provides reliable data upload, download, confirmation and storage for comprehensive system management
- Easy-to-Read OLED Screen: Delivers clear visual feedback and navigation for efficient configuration processes
- Wireless Advanced Configuration: Offers flexible setup capabilities for Digital Lighting Management systems without physical connections
- Multi-Device Compatibility: Configures occupancy sensors, switches, room controllers, photosensors and DLM relay panels from a single tool
- Compact Design: At 5.6" x 3.1" x 1.0" and 0.54 lb, provides portable professional functionality for field applications
Technical Specifications
- Country Of Origin: China
- Product Depth Us: 3.1 in
- Product Height Us: 5.6 in
- Product Volume Us: 31.25 cu in
- Product Weight Us: 0.54 lb
- Product Width Us: 1.0 in
Professional Applications
- Commercial Building Lighting Control Systems
- Office Building Digital Lighting Management
- Educational Facility Lighting Configuration
- Healthcare Facility Lighting Systems
- Retail Environment Lighting Control
- Industrial Facility Lighting Management
- Multi-Tenant Building Systems
Smart Load Management Advantage
As a component of Digital Lighting Management integrated control systems, this commissioning tool enables professional configuration of advanced lighting control features including occupancy sensing, photosensor integration, and relay panel management. The wireless configuration capabilities and 2-way IR communication ensure efficient system setup and ongoing maintenance for optimal energy management and operational performance.
Why Choose WattStopper Quality?
WattStopper delivers professional-grade digital commissioning tools designed for reliable performance in demanding commercial applications. The LMCT-100-2 combines compact portability with comprehensive configuration capabilities, ensuring efficient setup and maintenance of Digital Lighting Management systems with the durability and precision expected from WattStopper professional lighting control solutions.
Manufacturer Resources
Product Specs
- Product Depth Us:
- 3.1 in
- Product Height Us:
- 5.6 in
- Product Volume Us:
- 31.25 cu in
- Product Weight Us:
- 0.54 lb
- Product Width Us:
- 1.0 in
- Product Type:
- Lighting Control Accessory
- Department:
- Electrical
- Product Subgroup:
- Lighting Controls & Sensors
- Product Group:
- Wiring Devices
WattStopper LMCT-100-2 – Frequently Asked Questions
1) What WattStopper devices can the LMCT-100-2 commissioning tool configure?
The LMCT-100-2 handles the full Digital Lighting Management device set from one tool: occupancy sensors, wall switches, room controllers, photosensors, and DLM relay panels. If you are commissioning a DLM job, one tool covers every device class on the room side and the panel side, so an electrical contractor does not need separate handhelds for sensors and panels.
2) How does the commissioning tool talk to DLM sensors and switches, and do I need to be at the device?
Two ways. It uses 2-way IR for uploading, downloading, confirming and storing device data, which means line of sight to the device you are pointing at. It also has wireless advanced configuration, so the more involved setup work does not require a physical connection. For ceiling sensors, plan on being in the room and within IR aim of the device.
3) Can the WattStopper LMCT-100-2 be updated when new DLM devices come out?
Yes. There is a micro-USB port on the tool for firmware updates, so you can bring it current rather than replacing it as DLM feature sets change. That is the practical difference for a contractor keeping one tool across multiple jobs over several years.
4) Can I see what settings a sensor already has, or does the tool only push settings out?
It reads as well as writes. The IR link is 2-way, covering upload, download, confirmation and storage of device data, so you can pull an existing sensor's configuration, confirm what took, and store settings to replicate on the next device. For a facility maintenance tech troubleshooting a room that is timing out wrong, that read-back is the whole job.
5) What part number do I order for the WattStopper DLM commissioning tool?
Order by manufacturer part number LMCT-100-2 from WattStopper. It is a single-model item, no finish, voltage or handing options to specify.
6) Is this tool a permanent part of the lighting system or just for setup?
It is a commissioning and service tool, not installed hardware. The LMCT-100-2 is used to configure and adjust DLM occupancy sensors, switches, room controllers, photosensors and relay panels during startup and afterward for maintenance changes. One tool serves an entire building or a contractor's whole job list, so you buy per crew, not per room.
7) Is the DLM commissioning tool small enough to carry on a ladder all day?
It is a handheld. The LMCT-100-2 measures 5.6 x 3.1 x 1.0 inches and weighs 0.54 lb, so it is a one-hand tool you can work from on a lift or ladder while aiming at ceiling sensors. Total volume is about 31.25 cubic inches, pouch sized.
8) Does the LMCT-100-2 have a display, or do I have to count LED blinks to know where I am in the menu?
There is an OLED screen on the tool for navigation and visual feedback during configuration. You see the parameter you are changing rather than working from blink codes, which matters when you are setting time delays and sensitivity across a lot of rooms in one pass.
9) Where is the WattStopper LMCT-100-2 made?
Country of origin is China. Worth noting if you are buying under a procurement policy with domestic sourcing requirements on a government or federally funded project.
