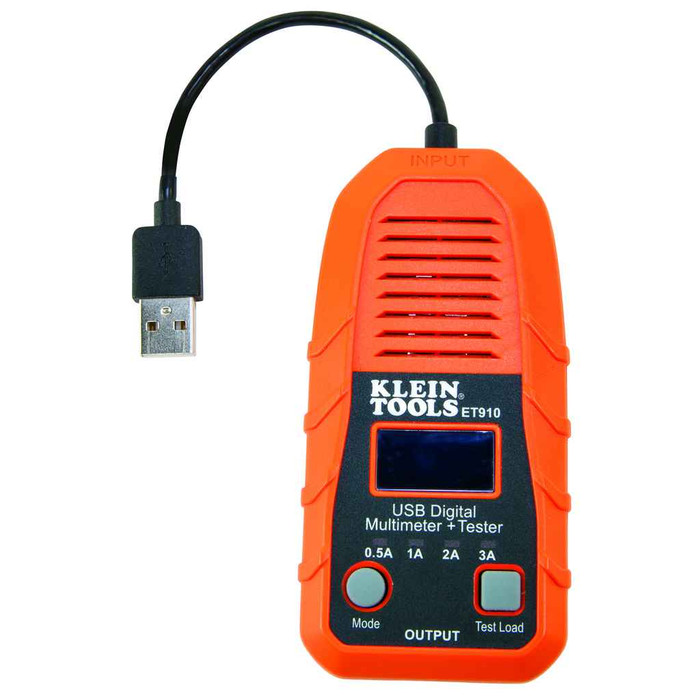

Klein Tools USB Digital Meter and Tester USB-A Type A 3-20V DC with Built-in Test Loads

Klein Tools USB Digital Meter and Tester USB-A Type A 3-20V DC with Built-in Test Loads

Professional USB port testing and monitoring solution

The Klein Tools USB Digital Meter and Tester delivers comprehensive USB-A port testing capabilities with 3-20V DC voltage range and 0.05-3A current monitoring. This rugged polymer construction meter features built-in test loads of 0.5A, 1A, 2A, and 3A, eliminating the need for external test equipment while providing continuous monitoring up to 1000 hours of voltage, current, capacity, energy, and calculated resistance.

Professional Features & Benefits

• Built-in Test Loads (0.5A, 1A, 2A, 3A): Eliminates external test equipment requirements for comprehensive USB port load testing and validation.
• 3-20V DC Voltage Range with �1% Accuracy: Provides precise measurements across standard and Quick Charge� USB-A port specifications.
• 6.6-Foot Drop Protection: Rugged polymer construction withstands jobsite conditions and accidental drops for reliable field performance.
• 1000-Hour Continuous Monitoring: Extended monitoring capability tracks voltage, current, capacity, energy, and resistance over time for thorough analysis.
• No External Power Required: Self-powered design draws power from the USB port being tested for convenient operation.
• Hi-Resolution LCD Display: Clear visibility in low ambient lighting conditions ensures accurate readings in various work environments.
• 10-Reading Memory Storage: Store and recall measurement data for comparison and documentation purposes.

Technical Specifications

• Accuracy: Voltage - 3 to 20V DC +/- 1% (+/-2 Bytes); Current - 0.05 to 3A +/- 1% (+/-2 Bytes)
• Capacity Used: 99,999mAh Maximum
• Current: 0.05 to 3A
• Department: Electrical
• Display: LCD
• Drop Protection: 2 m (6.6')
• Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
• Energy Delivered: 999Wh Maximum
• Ingress Protection: IP20
• Item Depth: 11.2100 in
• Item Height: 0.9800 in
• Item Weight: 0.1750 lbs
• Item Width: 2.1300 in
• Material: Polymer
• Overall Height: 0.98" (2.5 cm)
• Overall Length: 4.31" (11 cm)
• Overall Width: 2.15" (5.5 cm)
• Product Details: USB-A (Type A)
• Product Group: Tool Sets
• Product Subgroup: Tool Kits
• Product Type: USB-A (Type A)
• Product Voltage: 3 to 20V DC
• Resistance: 400 ohms Maximum
• Usb Compatibility: USB-A; Qualcomm Quick Charge� Compatible
• Weight: 2.80 oz (79.4 g)

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• USB Port Testing and Validation
• Mobile Device Charging System Analysis
• Power Bank and Charger Performance Testing
• Quick Charge� Port Verification
• Field Service and Maintenance Operations
• Quality Control and Compliance Testing
• Electrical Troubleshooting and Diagnostics

Why Choose Klein Tools Quality?

Klein Tools delivers professional-grade testing equipment with IP20 ingress protection and 6.6-foot drop protection for reliable jobsite performance. The rugged polymer construction and compact design ensure durability while maintaining the precision accuracy required for professional USB port testing and monitoring applications.
