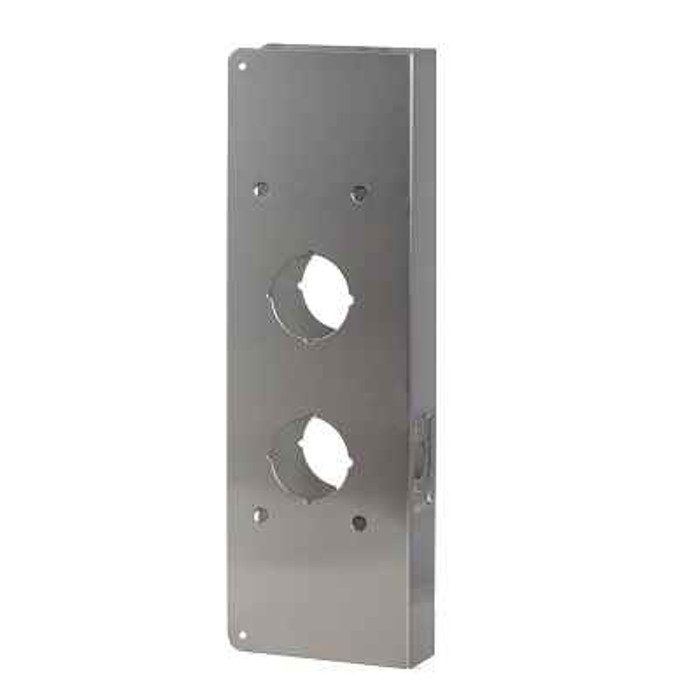

Don-Jo 16-CW 16 CW Wrap Around Plate 5-1/8" x 15" for Mas-Hamilton Power Levers

Don-Jo 16-CW 16 CW Wrap Around Plate 5-1/8" x 15" for Mas-Hamilton Power Levers

(No reviews yet) Write a Review

Model: 16-PB-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$76.56
$69.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 16 CW Wrap Around Plate 5-1/8" x 15" for Mas-Hamilton Power Levers

The Don-Jo 16 CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 15" tall, engineered specifically for use with Mas-Hamilton Power Levers. Constructed from 22-gauge (.032) steel, this wrap around features a hole for electronic lock compatibility and accommodates a 2-3/4" backset on 1-3/4" doors with a latch prep indent. Available in multiple finishes including AB (609), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 15" tall, providing full coverage and a clean, professional appearance on commercial doors.
  • Mas-Hamilton Power Lever Compatibility: Specifically designed to work with Mas-Hamilton Power Levers for seamless integration with electronic locking systems.
  • Electronic Lock Ready: Features a dedicated hole for electronic lock installation, supporting modern access control configurations.
  • Door & Backset Specifications: Designed for 1-3/4" doors with a 2-3/4" backset and latch prep indent for straightforward, accurate installation.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Multiple Finish Options: Available in AB (609), PB (605), and S (630) finishes to match a wide range of commercial door hardware aesthetics.
  • Commercial Grade: Rated for commercial use, making it suitable for demanding, high-traffic environments requiring reliable door trim solutions.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 16 CW?

Don-Jo wrap around plates are built to commercial standards using 22-gauge (.032) steel construction, delivering reliable durability in high-traffic door applications. The 16 CW is purpose-engineered for Mas-Hamilton Power Lever compatibility with an electronic lock hole, making it an ideal solution for facilities requiring integrated access control door trim. When dependable fit, finish, and function matter, Don-Jo delivers.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Handle Type:
Lever
Door Width:
1-3/4"
Product Model:
16 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 16-PB-CW – Frequently Asked Questions

1) Will the Don-Jo 16 CW wrap around plate work with a Mas-Hamilton Power Lever?
That's exactly what the 16 CW is cut for. It's a 5-1/8 x 15 inch wrap around with a hole sized for the Mas-Hamilton Power Lever body, plus a latch prep indent, so the electronic lock mounts through the plate instead of you having to relieve it on site. If you're covering a door for a different lock family, this isn't the plate, the cutout is specific to the Power Lever.
2) I have a chewed-up door around an old lock. Will a wrap around plate cover the damage or do I need to replace the door?
A wrap around covers it, and that's the whole point of the part. The 16 CW wraps the lock edge and covers a 5-1/8 inch wide by 15 inch tall area on the face of the door, hiding gouges, old filled prep, and screw holes from a previous lock, while giving the new Power Lever a flat, reinforced surface to mount to. It's a far cheaper fix than hanging a new door. The one thing it can't do is restore structure to a door that's split through, it's 22-gauge (.032) sheet steel, a cover and reinforcement, not a repair to the door core.
3) Does the Don-Jo 16 CW wrap around plate go on one side of the door or both?
It wraps. A wrap around plate folds over the lock edge so it covers part of both faces of the door, which is why the 1-3/4 inch thickness is not optional. That also means you order one plate per opening rather than a pair, unlike a flat remodeler plate that only sits on one face.
4) Do I need to modify the door to install a Don-Jo 16 CW wrap around plate?
Not for the lock prep. The plate arrives with the Power Lever hole and the latch prep indent already formed, so it drops over an existing 2-3/4 inch backset prep on a 1-3/4 inch door and the lock mounts through it. Where you can run into work is the strike side and the door edge, an existing latch face plate mortise has to line up with the indent. Check that the old prep is on 2-3/4 inch backset before you order, because the hole locations are fixed and cannot be moved in the field.
5) Will the Don-Jo 16 CW fit a knob lock instead of a lever?
No. The 16 CW is cut for a lever, specifically the Mas-Hamilton Power Lever, and the opening is shaped for that electronic lock body rather than a round knob rose. For a cylindrical knob or a standard lever lockset you want a wrap around from the same Don-Jo family cut for that prep instead.
6) I'm standardizing access control across a building. Can I use the same wrap around plate on every door?
Only where the openings match. The 16 CW is one size and one prep: 5-1/8 x 15 inches, 1-3/4 inch door, 2-3/4 inch backset, Power Lever cutout. Buildings that were built out at one time usually are consistent, so a single part number covers the fleet and you just pick one finish and stay with it. Doors that were replaced piecemeal are the ones to measure, an odd 2-3/8 inch backset or a 1-3/8 inch door in an older interior wall needs a different plate.
7) Is 22-gauge steel heavy enough for a wrap around plate on a high traffic school or hospital door?
Yes for its job. 22-gauge works out to .032 inch steel, which is the standard weight for commercial wrap arounds, it's stiff enough to take daily abuse and hold the lock mounting without oil-canning, and light enough to bend cleanly around the door edge without prying the plate off over time. Don-Jo lists the 16 CW as commercial rather than residential, and it's used in schools, healthcare, offices, and multi-tenant buildings.
