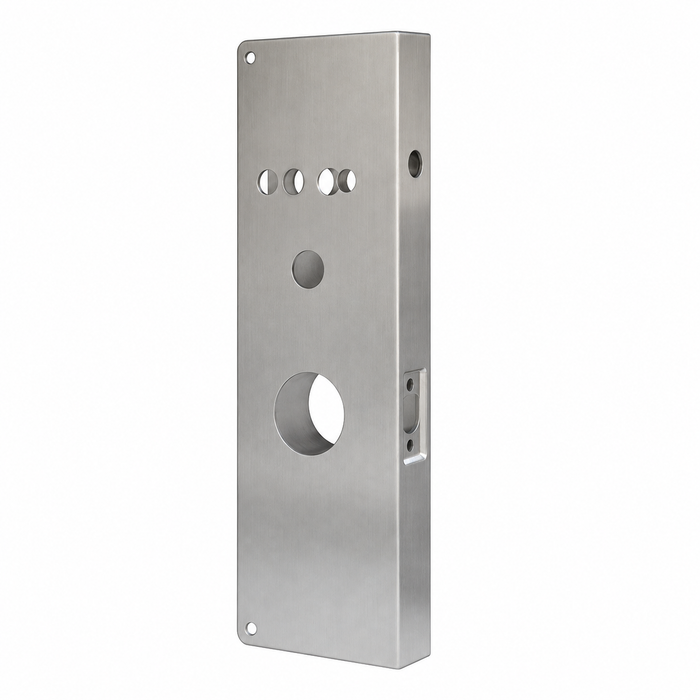

Don-Jo 26CO CW Wrap Around 5-1/8" x 16-5/8" for Schlage CO Locksets

Don-Jo 26CO CW Wrap Around 5-1/8" x 16-5/8" for Schlage CO Locksets

(No reviews yet) Write a Review

Model: 26CO-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.06
$64.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 26CO CW Wrap Around 5-1/8" x 16-5/8" for Schlage CO Locksets

The Don-Jo 26CO CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 16-5/8" tall, purpose-built for use with Schlage CO Locksets including Schlage CO-100, CO-200, and CO-250-CY series. Constructed from 22-gauge (.032) steel, this wrap around features an electronic lock hole configuration and a latch prep indent, accommodating a 2-3/4" backset on 1-3/4" doors. Available in multiple finishes — 10B (613), PB (605), and S (630) — to complement a wide range of commercial door hardware installations.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 16-5/8" tall, engineered to provide full coverage and a clean, professional appearance on commercial doors.
  • Schlage CO Lockset Compatibility: Specifically designed for Schlage CO-100, CO-200, and CO-250-CY locksets, ensuring a precise, reliable fit without modification.
  • Electronic Lock Hole Configuration: Features an electronic lock hole cutout to accommodate Schlage CO series electronic lockset requirements.
  • Latch Prep Indent: Includes a latch prep indent for proper alignment and secure installation with a 2-3/4" backset.
  • Door Thickness Compatibility: Designed for 1-3/4" doors, the standard thickness for commercial door applications.
  • Heavy-Duty 22-Gauge Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in high-traffic commercial environments.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural aesthetics.
  • Commercial-Grade Application: Sold individually (shelf pack of 1), suitable for professional installation in commercial settings.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 26CO CW?

Don-Jo wrap around plates are engineered to deliver a precise, professional fit for commercial door hardware installations. The 26CO CW is built from 22-gauge (.032) steel and purpose-matched to Schlage CO-100, CO-200, and CO-250-CY locksets, eliminating guesswork and ensuring a clean, code-compliant installation. For professionals seeking reliable door trim solutions in demanding commercial environments, Don-Jo delivers consistent quality and compatibility.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
26CO CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 26CO-S-CW – Frequently Asked Questions

1) Will the Don-Jo 26CO CW wrap around fit a Schlage CO-100 or CO-200 electronic lockset?
The 26CO CW is cut for the Schlage CO series specifically, covering CO-100, CO-200 and CO-250-CY locksets. It has an electronic lock hole configuration rather than a plain cylindrical bore, so the lock body and reader housing pass through without you having to open up the plate on site. If your opening carries a mechanical cylindrical lock instead of a CO series electronic unit, this is not the plate for it.
2) What door thickness does the Don-Jo 26CO wrap around plate work on?
1-3/4 inch doors, which is the standard commercial leaf thickness. A wrap around bends over the edge of the door, so the thickness is fixed, not a range: on a 1-3/8 inch door the plate will stand off the face and the legs will not sit tight. For a thinner door you need a wrap around made for that thickness.
3) Does the 26CO CW wrap around work with a 2-3/8 inch backset lock?
No. The latch prep indent on the 26CO CW is located for a 2-3/4 inch backset. On a 2-3/8 inch backset door the lock hole and the indent will not line up with the existing prep, and a wrap around plate is not something you can shift on the door because it registers off the edge. Confirm the backset in the door before ordering; 2-3/8 and 2-3/4 are the two common ones.
4) How much of the door does a 5-1/8 x 16-5/8 wrap around cover?
The 26CO CW measures 5-1/8 x 16-5/8 inches, which is a tall plate meant to cover the whole lock area of a Schlage CO installation, including the area above and below the lock body where the old prep, screw holes, or damage usually sits. If the area you need hidden runs beyond that, measure the full damaged zone first, because a wrap around cannot be trimmed without losing the formed edge that holds it on the door.
5) Can I use the Don-Jo 26CO CW to cover damage from a previous lock on a commercial door?
That is what a wrap around is for. It is a formed steel plate that folds over the lock edge of the door and covers the face around the prep, hiding old bore holes, splits, and kick damage while reinforcing the area. The catch on this one is the cutout: it is prepped for a Schlage CO electronic lockset at a 2-3/4 inch backset, so it hides old damage only if the lock going back on is a CO series unit in that same prep.
6) What finishes does the Don-Jo 26CO CW wrap around come in?
Three: 10B oil rubbed bronze (613), PB polished brass (605), and S satin stainless (630). For a fleet of openings, 630 satin stainless is the one that matches most commercial lever and exit hardware, since 630 is the common architectural finish on stainless trim. Pick the plate finish off the lock trim already on the door rather than the door itself, since the two sit side by side.
7) How thick is the steel on the Don-Jo 26CO wrap around?
22 gauge, .032 inch steel. That is the standard weight for a wrap around: heavy enough to take daily traffic in a school, hospital, or office corridor and to stiffen a door face that has been bored more than once, while still thin enough that the plate sits close under the lock rose without packing out the trim.
8) Is the Don-Jo 26CO CW meant for commercial doors or residential?
Commercial. It is sized and gauged for institutional openings, office buildings, schools, healthcare, retail, and multi-tenant residential corridors, and it is prepped for the Schlage CO electronic locksets those buildings run. A residential entry door with a standard cylindrical knob will not match the cutout.
