Don-Jo 2-CW wrap around plate for cylindrical door locks, 1-3/4" door, 2-3/8" backset, satin stainless steel finish

Don-Jo 2 CW Wrap Around for Cylindrical Door Locks, 1-3/4" Door, 2-3/8" Backset

(No reviews yet) Write a Review

Model: 2-PB-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.76
$25.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 2 CW Wrap Around for Cylindrical Door Locks

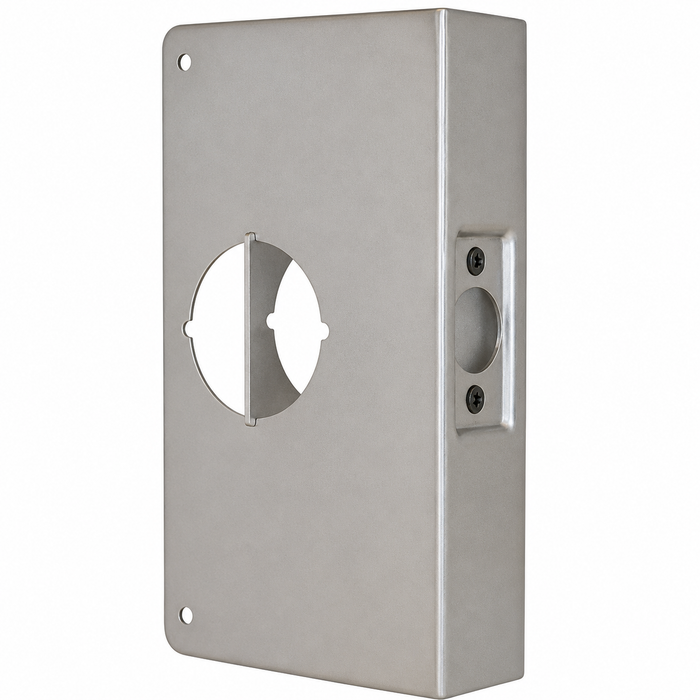

The Don-Jo 2 CW Wrap Around is a commercial-grade trim plate for cylindrical door locks with a 2-1/8" cross bore. It fits 1-3/4" door thickness with a 2-3/8" backset. The plate measures 4" wide by 9" tall and is fabricated from 22-gauge (.032) steel. A latch prep indent is included for clean alignment with the door's latch bore. Available in five finishes to coordinate with existing commercial hardware.

Key Features

  • Door Compatibility: Fits 1-3/4" door thickness with a 2-3/8" backset.
  • Cylindrical Lock Application: For use with cylindrical locks featuring a 2-1/8" cross bore.
  • Plate Dimensions: 4" wide by 9" tall.
  • Steel Construction: 22-gauge (.032) steel for commercial door environments.
  • Latch Prep Indent: Included for accurate alignment with the latch bore.
  • Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630).
  • Commercial Rated: Suitable for high-traffic commercial door applications.

Technical Specifications

  • Plate Size: 4" x 9"
  • Gauge: 22-gauge (.032) steel
  • Door Thickness: 1-3/4"
  • Backset: 2-3/8"
  • Cross Bore: 2-1/8"
  • Commercial/Residential: Commercial

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
2 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
Department:
Door Hardware

Don-Jo 2-PB-CW – Frequently Asked Questions

1) Will the Don-Jo 2 CW wrap around fit my cylindrical lock and door?
Three numbers have to line up. The 2 CW is cut for a 2-1/8 inch cross bore, a 2-3/8 inch backset, and a 1-3/4 inch thick door. Measure from the door edge to the center of the knob or lever hole: if that comes out at 2-3/8 inches and the bore is the standard 2-1/8 inches, the plate goes on over the existing prep with no drilling of the face. The plate itself is 4 inches wide by 9 inches tall, so it covers the bore area and wraps the door edge, and the latch prep indent gives the latch face somewhere to sit.
2) Does the Don-Jo 2 CW wrap around work with a mortise lock or a deadbolt?
Cylindrical locks only. The 2 CW is cut with a single 2-1/8 inch hole on a 2-3/8 inch backset, which is bored-lock prep. A mortise lock has a pocket in the door edge and its trim holes do not fall on that pattern, and a deadbolt above the knob sits outside the plate's 4 by 9 inch coverage. If the door has a knob or lever in a 2-1/8 inch bore, this is the right plate.
3) I have a beat up door face around the knob. Will a Don-Jo 2 CW cover it up without replacing the door?
That is the job it does. The 2 CW is 22-gauge (.032) steel, 4 inches wide by 9 inches tall, and it wraps the door edge to cover and stiffen the area around the lock, so kick marks, pry damage, and worn finish around the bore disappear behind steel. Keep the footprint in mind: anything outside that 4 by 9 inch area, such as a hole from an abandoned deadbolt higher up the stile, is still going to show.
4) Do I need a wrap around or a filler plate for a damaged cylindrical lock prep?
Two different parts. A wrap around like the Don-Jo 2 CW is for a door where the lock stays in service: it has a 2-1/8 inch hole and a latch prep indent, so the existing knob or lever goes back through it and the steel covers the damage around the working prep. A filler plate is for a hole you are abandoning, with no opening for hardware to pass through. If the knob is coming back, order the wrap around.
5) What finishes does the Don-Jo 2 CW wrap around come in, and which one matches my existing door hardware?
Five: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). Match by the BHMA number rather than the name, since that is what the lock or closer schedule will list. Satin stainless 630 is the usual pairing with commercial lever locks and push plates, 605 polished brass with older brass trim, and 613 oil rubbed bronze with dark bronze exterior hardware.
6) Will the Don-Jo 2 CW wrap around interfere with the latch or the strike alignment?
It should not. The 2 CW has a latch prep indent formed into the edge return, so the latch face sits down in that relief rather than being packed out by the thickness of the plate. Steel is 22-gauge (.032), which is thin enough that the door still closes on the existing strike. If the latch face is currently mortised flush, expect it to stay flush.
7) Is a 22-gauge wrap around heavy enough for a school or hospital corridor door?
The 2 CW is 22-gauge (.032) steel and is a commercial-rated part, built for high traffic openings in offices, schools, healthcare, retail, and government buildings. It is trim and reinforcement over the lock area, not a security plate, so it takes the daily abuse around the knob and hides existing damage. Standardizing on one backset and bore across a facility, 2-3/8 inch and 2-1/8 inch here, is what makes a plate like this stock well.
