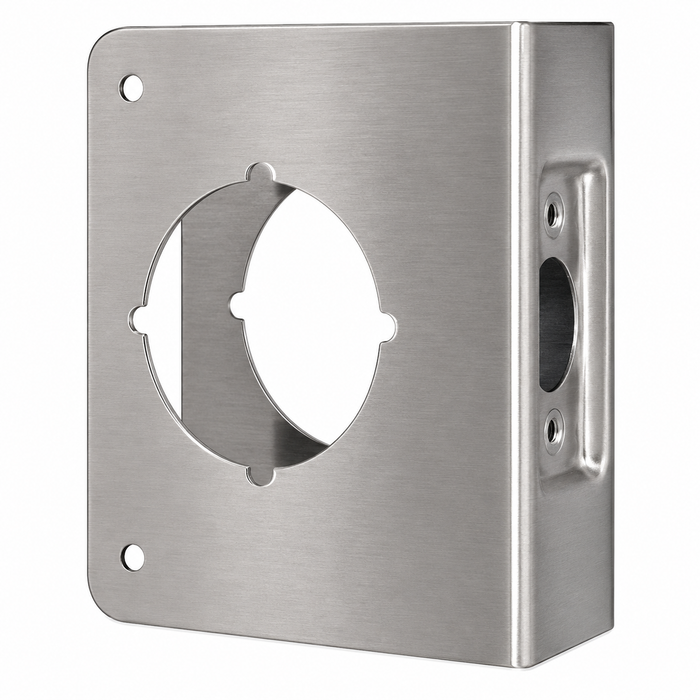

Don-Jo 71-CW 71 Wrap Around for Cylindrical Door Locks — 4-1/4" x 4-1/2", 2-3/4" Backset, 1-3/8" Door

Don-Jo 71-CW 71 Wrap Around for Cylindrical Door Locks — 4-1/4" x 4-1/2", 2-3/4" Backset, 1-3/8" Door

(No reviews yet) Write a Review

Model: 71-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.46
$10.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 71 Wrap Around for Cylindrical Door Locks — 4-1/4" x 4-1/2", 2-3/4" Backset, 1-3/8" Door

The Don-Jo 71 Wrap Around is a commercial-grade door trim accessory engineered to reinforce and finish cylindrical door lock installations. Measuring 4-1/4" wide by 4-1/2" tall and accommodating a 2-3/4" backset, this wrap around is specifically designed for 1-3/8" door sizes with a 2-1/8" cylindrical lock hole. Constructed from 22-gauge (.032) steel, it provides a clean, professional appearance while protecting the door face around the lock prep area. Available in multiple finishes to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 4-1/4" wide x 4-1/2" tall, sized to neatly cover and reinforce the lock prep area on the door face.
  • Cylindrical Lock Compatibility: Designed specifically for cylindrical door locks with a 2-1/8" hole, ensuring a proper fit with standard lock preparations.
  • Backset Specification: Accommodates a 2-3/4" backset for accurate alignment with the door latch and lock cylinder.
  • Door Size Compatibility: Engineered for 1-3/8" door thickness, making it suitable for standard interior and light commercial door applications.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial environments.
  • Latch Prep Indent: Features a latch prep indent for clean integration with the door latch mechanism.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match a wide range of door hardware aesthetics.
  • Display Packaging Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number. Display package size is 5-1/4" x 6-1/2".

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why Don-Jo 71?

Don-Jo 71 Wrap Around plates deliver professional-grade door trim reinforcement with 22-gauge (.032) steel construction built to withstand the demands of commercial applications. Engineered for precise compatibility with cylindrical door locks featuring a 2-1/8" hole and 2-3/4" backset, the Don-Jo 71 ensures a clean, finished appearance and reliable performance wherever standard door lock reinforcement is required.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/8"
Cross Bore:
2-1/8"
Product Model:
71 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 71-S-CW – Frequently Asked Questions

1) Will the Don-Jo 71 wrap around fit a 1-3/4 inch commercial door?
No. The 71-CW is built for 1-3/8 inch doors only. Wrap arounds are sized to the door thickness because the plate folds around the edge of the door, so a 1-3/8 inch wrap will not close over a 1-3/4 inch leaf. If your openings are the standard 1-3/4 inch commercial thickness, you need the 1-3/4 inch version of the wrap, not this one. The 1-3/8 inch size is what you find on older interior doors and light commercial work.
2) What lock prep does the Don-Jo 71 wrap around need on the door?
It drops over a standard cylindrical lock prep: a 2-1/8 inch cross bore with a 2-3/4 inch backset. If the door was bored at 2-3/8 inch backset, the hole in the plate will not line up with the hole in the door. Check the backset first, it is the measurement from the door edge to the center of the lock hole, then confirm the bore is 2-1/8 inch.
3) Can a wrap around plate cover a chewed up or oversized lock hole in a door?
That is the main reason people buy one. The Don-Jo 71 covers 4-1/4 by 4-1/2 inches of door face around the lock, so damage, old fastener holes, or a hole edge that has torn out gets hidden and the face gets reinforced with 22-gauge (.032) steel. It has a latch prep indent so it sits flat where the latch face crosses the door edge. What it will not do is fill a bore that was drilled larger than 2-1/8 inch, the plate hole is sized to that bore, so an oversized hole still leaves the lock without solid material to clamp.
4) Does the Don-Jo 71 wrap around work with a knob or lever, and does handing matter?
It suits any cylindrical knob or lever set that uses a 2-1/8 inch bore at 2-3/4 inch backset, the trim style above the plate does not matter. Handing is not a concern either. The wrap folds around the door edge and is symmetrical top to bottom, and the latch indent sits on the edge, so the same plate works on a left or right hand door.
5) What finishes does the Don-Jo 71 wrap around come in to match existing door hardware?
Five: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). For a building being standardized, 630 satin stainless is the one that lines up with most commercial lever and knob sets, and 613 is the usual match for dark bronze trim. Order the same finish code across the fleet and the plates read as one system rather than a patchwork.
6) Is 22-gauge steel heavy enough for a wrap around on a high traffic door?
22-gauge (.032) steel is the standard weight for a Don-Jo wrap around and it is a commercial-rated part, used in offices, schools, healthcare, retail, and multi-tenant residential. Understand what the plate does though: it covers and stiffens the door face around the lock, it is not a security reinforcement that stops a forced entry attack. For an abused opening where the lock is being pried or kicked, you want a latch protector or an edge reinforcement in addition to the wrap.
7) How do I order the Don-Jo 71 wrap around in retail display packaging?
Swap the CW suffix for V after the item number. The display pack measures 5-1/4 by 6-1/2 inches. Contractors and MRO buyers pulling these for install work want the CW, the display version is for shelf merchandising.
