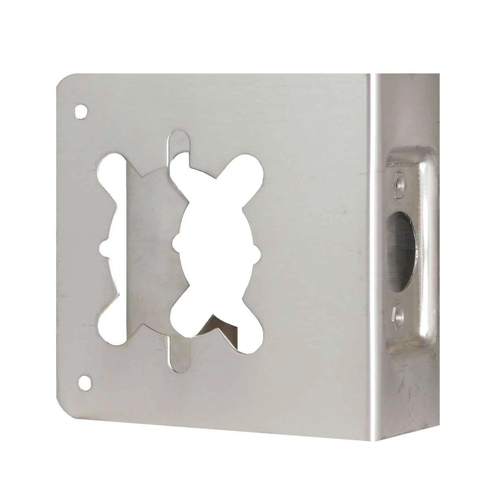

Don-Jo 81-CW 81 Wrap Around for Cylindrical Door Locks, 4-1/4" x 4-1/2", 2-3/4" Backset, 1-3/4" Door

Don-Jo 81-CW 81 Wrap Around for Cylindrical Door Locks, 4-1/4" x 4-1/2", 2-3/4" Backset, 1-3/4" Door

(No reviews yet) Write a Review

Model: 81-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.46
$13.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 81 Wrap Around for Cylindrical Door Locks — 4-1/4" x 4-1/2", 2-3/4" Backset, 1-3/4" Door

The Don-Jo 81 Wrap Around is a commercial-grade door trim accessory engineered for cylindrical door locks with a 2-1/8" hole, providing a clean, finished appearance around the lock prep area. Measuring 4-1/4" wide by 4-1/2" tall and accommodating a 2-3/4" backset on 1-3/4" doors, this wrap around features a latch prep indent and is constructed from 22-gauge (.032) steel for reliable durability in commercial applications. Available in multiple finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 4-1/4" wide x 4-1/2" tall with a 2-1/8" hole cutout, designed to neatly cover and finish the lock prep area on commercial doors.
  • Backset Compatibility: Accommodates a 2-3/4" backset, ensuring proper alignment with standard cylindrical lock installations.
  • Door Size Compatibility: Designed for 1-3/4" door thickness, the most common commercial door specification.
  • Cylindrical Lock Application: Specifically engineered for cylindrical door locks with a 2-1/8" bore hole for a precise, professional fit.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for lasting durability and resistance to everyday wear in commercial environments.
  • Latch Prep Indent: Features a latch prep indent for proper clearance and alignment with the door latch mechanism.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match a wide range of door hardware aesthetics.
  • Display Packaging Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 81?

Don-Jo Wrap Around products deliver professional-grade door trim solutions built from 22-gauge (.032) steel, ensuring dependable performance in high-traffic commercial environments. The Don-Jo 81 is engineered to precise dimensional tolerances — 4-1/4" x 4-1/2" with a 2-1/8" hole and latch prep indent — making it a reliable choice for contractors and facility managers seeking a clean, finished look around cylindrical lock installations.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
81 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 81-S-CW – Frequently Asked Questions

1) Will the Don-Jo 81 wrap around cover the worn area around a cylindrical lockset on a 1-3/4 inch commercial door?
That is exactly what the 81 is for. It wraps the lock prep area on a 1-3/4 inch door, with a 2-1/8 inch cross bore cutout and a 2-3/4 inch backset, so it drops over the standard commercial cylindrical lock prep and hides scarring, old strike marks, or an oversized hole around the knob or lever. Overall plate size is 4-1/4 x 4-1/2 inches. It is a cosmetic and reinforcing cover plate, not a lock, so you reuse your existing lockset with it.
2) My doors have a 2-3/8 inch backset. Does the Don-Jo 81 wrap around still work?
No. The 81 is cut for a 2-3/4 inch backset, so on a 2-3/8 inch backset door the bore cutout will not line up with the lock and the latch indent will sit in the wrong place. Measure from the door edge to the center of the knob hole before ordering; if it comes out at 2-3/8 inches you need a wrap around made for that backset instead. 2-3/8 and 2-3/4 are the two backsets you will find on cylindrical locks, so this is worth checking on every opening you are covering.
3) What size hole does the Don-Jo 81 wrap around need in the door?
It suits the standard 2-1/8 inch cross bore used for cylindrical knob and lever locks, and it has a latch prep indent so the plate clears the latch face on the door edge. If your door has been drilled larger than 2-1/8 inches, the plate covers the surrounding damage but the lock rose still has to bear on the plate, so confirm the lock trim diameter covers the oversized hole underneath.
4) What finishes does the Don-Jo 81 wrap around come in, and how do I match my existing door hardware?
Five finishes: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). Match by the BHMA number rather than the name, since that is what the rest of your hardware is specified in. 630 satin stainless is the usual match for commercial levers and closers; 605 and 609 pair with brass trim on older interior openings.
5) Is 22-gauge steel heavy enough for a wrap around on a high traffic door?
The 81 is 22-gauge (.032) steel and is specified as commercial. That gauge is a trim and cover weight, so it takes the daily knocks and hides damage in an office, school, or apartment corridor. It is not a reinforcement plate and will not add pry resistance to the lock, so if the door was kicked and the bore is torn out, repair or reinforce the door first and use the wrap around for the finish.
6) Can I order the Don-Jo 81 in retail display packaging?
Yes. The 81-CW is the standard commercial pack; for the display packaged version, substitute V for CW after the item number when you order. Same plate either way, just the packaging changes, which matters if you are a distributor putting it on a peg rather than a contractor buying for a job.
7) Does the Don-Jo 81 wrap around have a hand, and do I need one for each side of the door?
The 81 wraps the door around the lock edge, so it goes on one side and folds over the edge. Order one per side you want covered, and count openings, not doors, when you are standardizing a floor of apartments or classrooms. Since it is cut for a 2-3/4 inch backset with a 2-1/8 inch bore on a 1-3/4 inch door, one part number covers every opening in the building that matches that prep, in whichever of the five finishes matches your trim.
