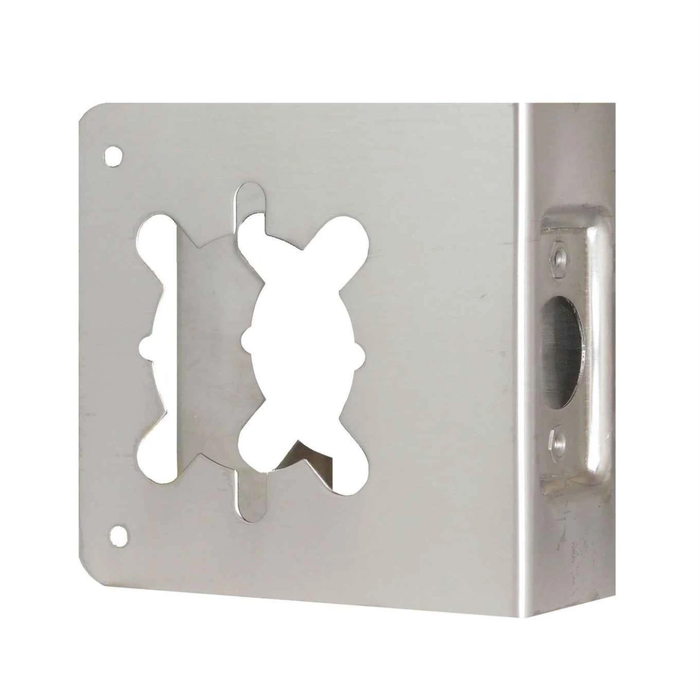

Don-Jo 81-2-CW 81 Wrap Around Plate 4-3/4" x 4-1/2" with 2-3/4" Backset for 1-3/4" Doors

Don-Jo 81-2-CW 81 Wrap Around Plate 4-3/4" x 4-1/2" with 2-3/4" Backset for 1-3/4" Doors

(No reviews yet) Write a Review

Model: 81-S-2-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.70
$15.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 81 Wrap Around Plate 4-3/4" x 4-1/2" with 2-3/4" Backset for 1-3/4" Doors

The Don-Jo 81 Wrap Around Plate is a commercial-grade door reinforcement accessory measuring 4-3/4" wide by 4-1/2" tall, designed for 1-3/4" door thickness with a 2-3/4" backset. Constructed from 22-gauge (.032) steel, this wrap around plate provides a secure and finished installation for grade 1 and grade 2 lever locks, offering compatibility with leading lock brands including Schlage, Arrow, Yale, Sargent, Corbin Russwin, and Falcon. Available in multiple finishes to coordinate with existing door hardware, the Don-Jo 81 is an ideal solution for commercial door trim and accessory applications.

Key Features

  • Precise Dimensions: Measures 4-3/4" wide by 4-1/2" tall, engineered to fit 1-3/4" door thickness with a 2-3/4" backset for accurate, secure installation.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Broad Lock Compatibility: Works with grade 1 and grade 2 lever locks from Schlage, Arrow, Yale, Sargent, Corbin Russwin, and Falcon, providing versatile installation options across a wide range of hardware brands.
  • Hole Lever Prep: Features a pre-cut lever hole prep to accommodate standard lever lock configurations without additional field modification.
  • Latch Prep Indent: Includes a latch prep indent for precise alignment and a clean, professional finish around the latch bolt area.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to match or complement existing door hardware aesthetics.
  • Commercial-Grade Application: Designed and rated for commercial use, making it suitable for high-traffic environments requiring reliable door trim reinforcement.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 81?

Don-Jo 81 Wrap Around Plates deliver professional-grade door reinforcement with 22-gauge (.032) steel construction and broad compatibility with grade 1 and grade 2 lever locks from the industry's leading manufacturers. Engineered for demanding commercial environments, the Don-Jo 81 provides a reliable, finished solution for door trim and accessory installations where precision fit and durable performance are essential.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
81 2 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 81-S-2-CW – Frequently Asked Questions

1) Will the Don-Jo 81 wrap around plate fit my door if the lock has a 2-3/8 inch backset?
No. The 81-2-CW is cut for a 2-3/4 inch backset, which is the deeper of the two standard commercial backsets. If your lever lock sits 2-3/8 inches from the door edge to the center of the bore, the lever hole and the latch prep indent will not line up. Measure edge of door to center of the knob hole before ordering, and get the 2-3/8 inch version instead.
2) Can I use a wrap around plate to cover up damage around a lever lock on a commercial door?
That is exactly what the Don-Jo 81 does. It wraps the edge of the door and covers the face around the lock prep, hiding chewed-up wood, old fastener holes, or a mismatched prep from a previous lock. It measures 4-3/4 x 4-1/2 inches, so the damage has to fall inside that footprint. For a taller area of damage you need a longer wrap plate, not this one.
3) Will the Don-Jo 81 wrap plate fit a Schlage or Sargent lever lock?
Yes. The lever hole prep on the 81 is cut to suit grade 1 and grade 2 lever locks from Schlage, Arrow, Yale, Sargent, Corbin Russwin, and Falcon. The lever trim mounts through the plate, and the latch prep indent clears the latch face on the edge of the door.
4) Is 22-gauge steel heavy enough for a wrap plate on a high traffic door?
22-gauge (.032) steel is the standard weight for commercial wrap around plates and is what the Don-Jo 81 uses. It is a face reinforcement and cover, not a structural repair: it stiffens the lock area and stops further edge splitting, but a door with a blown-out lock stile or a cracked frame needs the substrate repaired first. Don-Jo rates the 81 for commercial use in schools, healthcare, retail, and multi-tenant buildings.
5) What finishes does the Don-Jo 81 wrap around plate come in?
Five: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). If you are standardizing a building, 630 satin stainless is the usual match for commercial lever hardware, and the BHMA numbers let you pair the plate to whatever finish code is already on your lock schedule.
6) Do I have to remove the lever lock to install a Don-Jo 81 wrap plate?
Yes. The plate wraps over the door edge and lies under the lock trim, so the lever and rose come off, the plate goes on, then the lock reinstalls through the pre-cut lever hole. No drilling of the hole itself is needed since the prep is already cut for standard lever configurations, and the latch is unscrewed and reset over the latch prep indent on the edge leg.
7) Does a wrap around plate work with a knob lock or a mortise lock instead of a lever?
The 81-2-CW is prepped specifically for lever locks on a 2-3/4 inch backset. A mortise lock has a completely different face prep and needs a mortise-style wrap plate. A cylindrical knob lock uses the same 2-1/8 inch bore as a lever, but confirm the rose diameter clears the prep before you commit to this one.
8) Does handing matter when ordering the Don-Jo 81 wrap around plate?
No handing to specify on the 81-2-CW. Order by backset (2-3/4 inch), door thickness (1-3/4 inch), and finish, and it fits either hand of door. That makes it straightforward to stock a few for a building where the openings swing both ways.
