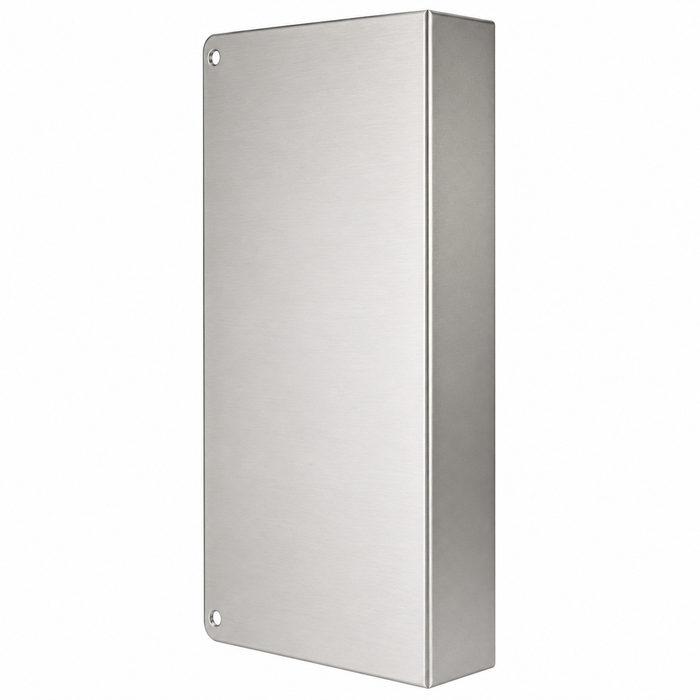

Don-Jo 30-CW blank wrap around plate, 4-1/4" x 9", satin stainless steel finish, for 1-3/8" doors

Don-Jo 30-CW 30 CW Blank Wrap Around Plate 4-1/4" x 9" for 1-3/8" Doors with Trim Screws

(No reviews yet) Write a Review

Model: 30-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.60
$18.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 30 CW Blank Wrap Around Plate 4-1/4" x 9" for 1-3/8" Doors with Trim Screws

The Don-Jo 30 CW is a commercial-grade blank wrap around plate measuring 4-1/4" x 9", built for 1-3/8" door sizes. Constructed from 22-gauge (.032) steel, it covers the door face cleanly and ships with trim screws for straightforward installation. Available in five finishes: 10B (613), AB (609), BZ (612), PB (605), and S (630).

Key Features

  • Dimensions: 4-1/4" wide x 9" tall, purpose-built for 1-3/8" door sizes for a flush fit.
  • 22-Gauge Steel Construction: Manufactured from 22-gauge (.032) steel for durable performance in commercial door applications.
  • Blank Wrap-Around Design: Smooth, uncut face plate provides a clean finished appearance and accommodates a variety of trim configurations.
  • Includes Trim Screws: Ships complete with trim screws for a ready-to-install package.
  • Five Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) to match existing door hardware.
  • Display Package Option: Also available in display packaging (5-1/4" x 11"); substitute "V" for "CW" in the item number when ordering the display-packaged version.

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

About Don-Jo Wrap Around Plates

Don-Jo wrap around plates are built to commercial standards. The 30 CW's 4-1/4" x 9" dimensions and 22-gauge (.032) steel construction make it a reliable choice for door trim applications where a clean, finished appearance is required on 1-3/8" doors.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/8"
Product Model:
30 CW
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 30-S-CW – Frequently Asked Questions

1) What is a blank wrap around plate used for on a door?
It wraps the edge of the door and covers both faces around the lock area, hiding gouges, old boring, splits or worn wood left behind by previous hardware. Blank means the face is uncut, so there's no cylinder or lever hole in it. The Don-Jo 30 CW is the 4-1/4 x 9 inch size in 22-gauge (.032) steel. If you need a hole for a knob or deadbolt, a blank plate is the wrong pick, you want a wrap bored for that function.
2) Do I need to buy screws separately for the Don-Jo 30 CW?
No, trim screws ship with the plate. Nothing else is included, so if the door face is chewed up under where the plate lands you may still want filler behind it, but the fastening is covered out of the box.
3) What finishes does the Don-Jo 30 CW blank wrap around come in?
Five: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). For a building where you're patching one opening in a run of doors, 630 satin stainless is the one that usually matches existing commercial lever trim and push plates.
4) How much of the door does a 4-1/4 x 9 inch wrap around cover?
The 30 CW gives you 9 inches of coverage along the door edge and 4-1/4 inches across the face. That's enough to bridge a standard 2-1/8 inch cross bore and the surrounding damage on a residential-style opening, but it will not reach a separate deadbolt bore set the usual distance above the lockset. Two hits that far apart need a taller wrap or two plates.
5) What is the difference between the Don-Jo 30 CW and the 30 V?
Same plate, different packaging. CW is the bulk trade pack; substituting V for CW in the item number gets you the display-packaged version in a 5-1/4 x 11 inch package. If you're a distributor stocking for retail sale, order the V. For job-site work, the CW.
6) Can I install a wrap around plate over a door that already has a lockset in it?
Not without pulling the hardware. A wrap around slides over the door edge and lies flat on both faces, so the knob or lever, rose and latch have to come out first, then the plate goes on and the hardware reinstalls through it. On a blank plate like the 30 CW there's no bore, so it's for openings where the old lockset is coming out and not being replaced in the same spot, or where you're field-cutting the hole yourself.
7) Is 22-gauge steel heavy enough for a wrap around plate on a school or apartment corridor door?
22-gauge (.032) steel is the commercial-grade material Don-Jo uses on the 30 CW, and it's rated by the maker as a commercial product rather than a residential one. It's a cover and reinforcement skin, though, not a security plate, so it hides and stiffens damaged wood but doesn't add strike or latch protection. For pry resistance at the latch you want a latch guard, not a wrap.
