Don-Jo 40-CW 40 CW Blank Wrap ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$33.60
$16.21
Don-Jo 40-CW blank wrap-around plate, 4-1/4" x 9", Satin Stainless finish, for 1-3/4" doors

Don-Jo 40-CW 40 CW Blank Wrap Around Plate, 4-1/4" x 9" for 1-3/4" Doors with Trim Screws

(No reviews yet) Write a Review

Model: 40-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.60
$16.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 40 CW Blank Wrap Around Plate, 4-1/4" x 9" for 1-3/4" Doors with Trim Screws

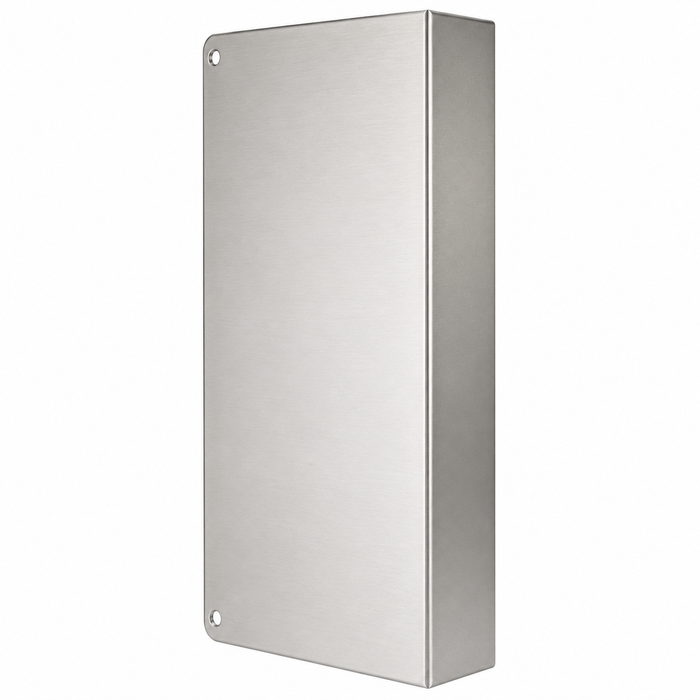

The Don-Jo 40 CW is a blank wrap around plate engineered to reinforce and protect the door face around a lockset cutout on 1-3/4" commercial and residential doors. Measuring 4-1/4" wide by 9" tall and constructed from 22-gauge (.032) steel, this plate installs cleanly over existing bore holes and ships complete with trim screws. It is a trusted solution for property managers, locksmiths, and contractors upgrading door security or covering legacy hardware cutouts.

Key Features

  • Dimensions: 4-1/4" x 9", providing reliable coverage over standard lockset bore holes on 1-3/4" doors.
  • Steel Construction: Fabricated from 22-gauge (.032) steel for durable reinforcement of the door face in commercial and residential applications.
  • Door Thickness Compatibility: Fits 1-3/4" door thickness, the most common commercial and residential door profile.
  • Includes Trim Screws: Supplied complete with trim screws for a clean, secure installation without additional hardware.
  • Finish Options: Available in five finishes: 10B Oil Rubbed Bronze, AB Antique Brass, BZ Satin Bronze, PB Polished Brass, and S Satin Stainless, to coordinate with existing door hardware.
  • Display Packaging Option: Display-packaged variants are available; when ordering, replace "CW" with "V" after the item number (e.g., 40-10B-V) for the display-packaged version.
  • Box Pack: Ships in a 4-1/2" x 9-3/4" box pack with a shelf pack quantity of 1.

Technical Specifications

  • Plate Dimensions: 4-1/4" x 9"
  • Material: 22-gauge (.032) steel
  • Door Thickness: 1-3/4"
  • Included Hardware: Trim screws
  • Box Pack Size: 4-1/2" x 9-3/4"
  • Shelf Pack Quantity: 1
  • Available Finishes: 10B Oil Rubbed Bronze, AB Antique Brass, BZ Satin Bronze, PB Polished Brass, S Satin Stainless

Typical Applications

  • Commercial Office Buildings
  • Multi-Tenant Residential Properties
  • Retail Establishments
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Warehouse Facilities
  • Property Management and Locksmith Services

Why Don-Jo 40 CW?

Don-Jo wrap around plates deliver professional-grade door reinforcement with 22-gauge (.032) steel construction built to withstand the demands of both commercial and residential environments. The 40 CW's precise 4-1/4" x 9" profile and included trim screws make it a reliable, ready-to-install solution for covering legacy hardware cutouts or upgrading door security with a clean, finished appearance.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
40 CW
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 40-S-CW – Frequently Asked Questions

1) Will a Don-Jo 40 CW wrap around plate cover the bore hole left behind when a lockset is removed?
That is exactly what the 40 CW is for. It is a blank plate, 4-1/4" x 9", with no cutouts in it at all, so it goes over an existing lockset bore on a 1-3/4" door and hides the hole and the surrounding wear. Trim screws are in the box. One thing to plan for: because the plate has no bore, the old lock has to come out of the door first. This covers a cutout, it does not mount hardware.
2) Does the Don-Jo 40 CW wrap around plate fit a 1-3/8 inch door?
No. The 40 CW is built for 1-3/4" doors only. Thickness is not a loose spec on a wrap around plate the way it is on a flat plate, since the plate folds over the edge of the door and lands on the face on each side, so a 1-3/4" wrap sits proud and rocks on a thinner door. 1-3/4" is the standard commercial door thickness, while 1-3/8" turns up on older interior and residential doors, and those openings need a plate made for 1-3/8".
3) Can I mount a knob or lever through a Don-Jo 40 blank wrap around plate?
No, and this is the mistake worth catching before you order. Blank means there is no cylinder hole and no spindle hole in the 40 CW, so nothing passes through it. It suits an opening where the lockset is coming out for good and the hole needs covering, or where you are reinforcing and dressing up a face that already has an old cutout in it. If you are keeping a working lock in that door, you want a wrap around prepped with the bore and spindle holes for that lock instead, not the blank.
4) What ships with the Don-Jo 40 CW wrap around plate, do I have to supply my own screws?
Trim screws come with the plate, so there is nothing else to buy to get it on the door. Packing runs one plate per box, shelf pack quantity of 1, in a 4-1/2" x 9-3/4" carton. For a property manager covering cutouts across a run of units or corridor doors, that means ordering one per opening rather than working out of a bulk carton.
5) What finishes does the Don-Jo 40 blank wrap around plate come in, and which one matches brass door hardware?
Five finishes, and that is the whole range: 10B Oil Rubbed Bronze, AB Antique Brass, BZ Satin Bronze, PB Polished Brass, and S Satin Stainless. For bright brass levers and hinges, PB is the closest match, and AB reads closer to aged or antique brass trim. Where the rest of the opening is dark, 10B or BZ blends in better. S Satin Stainless is the one that sits with the brushed-metal lock and closer trim you see on most commercial corridor doors.
6) Is 22 gauge steel heavy enough for a wrap around plate on a busy commercial door?
The 40 CW is 22-gauge (.032) steel. That is cover and face-protection stock: it stiffens the door face around the old lockset cutout, hides the hole, and takes the scuffing a door picks up at lock height in a corridor or tenant entrance. What it is not doing is adding lock or strike strength, since the plate is blank and no hardware fastens through it. For covering legacy cutouts and tidying up beaten door faces on commercial and residential openings, it is the right weight of material.
7) How do I order the Don-Jo 40 wrap around plate in display packaging for counter sales?
Replace the CW in the item number with V. The oil rubbed bronze plate ordered as a display-packaged item becomes 40-10B-V, and the same swap applies across the other finishes. Same 4-1/4" x 9" blank plate either way, the difference is the packaging, so distributors and shops selling off a rack take the V version while jobsite and MRO orders take CW.
8) Can the Don-Jo 40 CW be used on apartment doors, or is it a commercial-only plate?
It works on both, as long as the door is 1-3/4" thick. Don-Jo builds the 40 CW for commercial and residential doors, and the typical run of jobs it lands on covers multi-tenant residential, offices, retail, schools, healthcare, and warehouse doors. For a landlord or property manager, the usual use is a unit or corridor door where an old lock came out and the hole needs to disappear without hanging a new lockset in it.
