Don-Jo 90-CW 90 CW Blank Wrap Around Plate 5" x 12" for 1-3/4" Doors with Trim Screws

Don-Jo 90-CW 90 CW Blank Wrap Around Plate 5" x 12" for 1-3/4" Doors with Trim Screws

(No reviews yet) Write a Review

Model: 90-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.50
$24.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

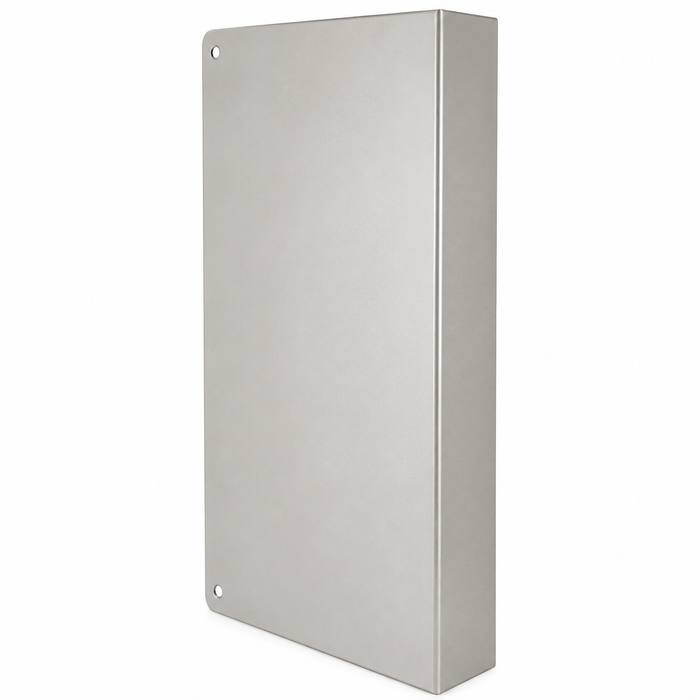

Don-Jo 90 CW Blank Wrap Around Plate 5" x 12" for 1-3/4" Doors with Trim Screws

The Don-Jo 90 CW is a blank wrap around plate measuring 5" wide by 12" tall, engineered specifically for 1-3/4" door sizes in commercial applications. Constructed from 22-gauge (.032) steel, this wrap around provides a clean, finished appearance while protecting the door edge and lock area. Supplied with trim screws and available in a range of finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 5" wide by 12" tall, sized for accurate coverage and a professional fit on commercial doors.
  • Door Size Compatibility: Designed specifically for 1-3/4" door thickness, ensuring a proper and secure fit without modification.
  • Heavy-Duty Gauge Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Blank Wrap Around Design: Features a blank face plate configuration, providing a clean finished look and flexibility for field preparation as needed.
  • Includes Trim Screws: Supplied complete with trim screws for straightforward installation right out of the package.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match a wide variety of door hardware aesthetics.
  • Display Packaging Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number to specify display-packaged units.
  • Commercial Grade: Intended for commercial door hardware applications, delivering the reliability and finish quality demanded in professional environments.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 90?

Don-Jo wrap around plates are built to commercial standards, combining 22-gauge (.032) steel construction with a range of coordinating finishes to deliver a polished, professional result on any commercial door installation. The 90 CW is a dependable choice for contractors and facility managers who require consistent quality and a proper fit for 1-3/4" door applications.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
90 CW
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 90-S-CW – Frequently Asked Questions

1) Will the Don-Jo 90 CW wrap around plate fit a 1-3/4 inch commercial door?
That's exactly the door it's built for. The 90 CW is sized for 1-3/4 inch thickness, which is the standard commercial door, so the plate wraps the edge and sits flat without bending or field modification. On a 1-3/8 inch door the wrap would be loose and stand proud of the edge, so it's the wrong part for older interior doors.
2) What is a blank wrap around plate and when do I use one instead of a cut-out plate?
A wrap around wraps the door edge and covers both the face and the edge around the lock area, hiding damage, old prep, or mismatched holes. Blank means the face comes with no lock or cylinder cut-outs in it, so you drill it in the field to match whatever hardware is going back on. Pick a blank like the 90 CW when the existing prep is nonstandard or you don't know the lock's hole pattern yet. If you're going back with a known standard cylindrical lock, a pre-cut wrap saves you the layout work.
3) How big is the Don-Jo 90 CW wrap around, and will 5 x 12 inches cover the damage around my lockset?
The plate measures 5 inches wide by 12 inches tall. That 12 inch height gives you coverage above and below the lock bore, and the 5 inch width is what wraps from the face over the door edge. Measure your damaged area first; if the tear-out runs longer than 12 inches vertically, this size won't hide it.
4) Do I need to buy screws separately for the Don-Jo 90 wrap around plate?
No. Trim screws ship with the plate, so it installs out of the package. The only thing you may still need is a hole saw or drill for the face prep, since the blank plate has no lock cut-outs in it.
5) What finishes does the Don-Jo 90 CW wrap around come in to match my other door hardware?
Five finishes: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). If you're standardizing a building, 630 satin stainless is the one that lines up with most commercial lever and exit hardware, and 613 matches oil rubbed bronze trim.
6) Is 22-gauge steel heavy enough for a wrap around plate in a high traffic building?
The 90 CW is 22-gauge (.032) steel, which is the usual weight for wrap arounds in commercial office, school, healthcare, retail, warehouse, multi-tenant and municipal buildings. It's a protective and cosmetic cover over the door edge and lock area, not a security reinforcer, so it takes cart and key-ring abuse but isn't a substitute for a latch guard or a reinforcement plate on a door that's being attacked.
7) Can I use a wrap around plate to cover an old lock hole on a door I'm rekeying?
Yes, that's a common use for the 90 CW. It wraps the edge and covers the face around the existing bore, so an oversized or chewed-out hole from a previous lockset disappears under the plate. Because the face is blank, you lay out and cut only the holes the new hardware needs. It won't fill the hole structurally, so if the door itself is broken through at the edge, you're looking at an edge filler or a door replacement rather than a wrap.
8) How do I order the Don-Jo 90 in display packaging instead of bulk?
Swap the suffix. Replace the CW in the item number with V, so the display-packaged version of the 90 CW is ordered as the 90 V. Same plate either way, only the packaging changes, which matters if you're a distributor stocking it on a peg rather than a contractor buying it for one opening.
