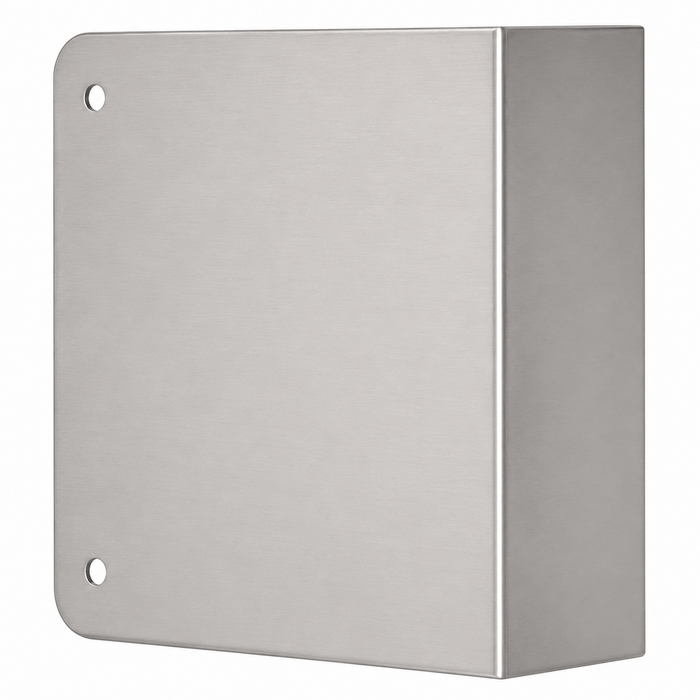

Don-Jo 70-CW 70 CW Blank Wrap Around Plate 4-1/4" x 4-1/2" with Trim Screws

Don-Jo 70-CW 70 CW Blank Wrap Around Plate 4-1/4" x 4-1/2" with Trim Screws

(No reviews yet) Write a Review

Model: 70-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.46
$14.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 70 CW Blank Wrap Around Plate 4-1/4" x 4-1/2" with Trim Screws

The Don-Jo 70 CW is a commercial-grade Blank Wrap Around plate measuring 4-1/4" wide by 4-1/2" tall, designed for use on 1-3/8" doors to provide a clean, finished appearance around door lock preparations. Constructed from 22-gauge (.032) steel, this wrap around ships in a convenient shelf pack of 1 and includes trim screws for straightforward installation. Available in multiple finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to coordinate with existing door hardware. A Display Packaged version is also available by replacing "CW" with "V" in the item number when ordering.

Key Features

  • Precise Dimensions: Measures 4-1/4" wide by 4-1/2" tall, sized for clean coverage of lock preparations on 1-3/8" doors.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, commercial-grade performance in door trim applications.
  • Blank Wrap Around Design: Smooth, uncut face plate provides a finished look and covers existing or unwanted lock bore preparations.
  • Includes Trim Screws: Comes complete with trim screws for a secure, ready-to-install solution right out of the box.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to match a wide range of door hardware aesthetics.
  • Convenient Packaging: Shelf pack of 1 with a box pack size of 5-1/4" x 4-1/2"; display package size of 5-1/4" x 6-1/2" also available.
  • Display Package Option: Display Packaged version available — when ordering, replace "CW" with "V" after the item number for the display pack configuration.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why Don-Jo 70 CW?

Don-Jo Wrap Around plates are engineered for commercial door hardware applications, delivering reliable coverage and a professional finish with 22-gauge (.032) steel construction. The 70 CW is a practical, multi-finish solution for installers and facility managers seeking a clean, code-appropriate appearance on 1-3/8" doors across a wide range of commercial environments.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/8"
Product Model:
70 CW
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 70-S-CW – Frequently Asked Questions

1) Will the Don-Jo 70 CW wrap around plate fit a 1-3/4 inch commercial door?
No. The 70 CW is built for 1-3/8 inch doors only. A wrap around wraps the edge of the door, so the door thickness has to match the plate's fold, and a 1-3/8 inch plate won't close over a 1-3/4 inch door. Most commercial openings are 1-3/4 inch, so measure the leaf before ordering; 1-3/8 inch is typical of older interior and light-duty doors.
2) Can a Don-Jo 70 CW blank wrap around cover an old lock bore hole in a door?
That is what the blank face is for. The 70 CW has no cutouts, so it covers an existing or unwanted lock bore prep and gives the door a finished face again. It measures 4-1/4 by 4-1/2 inches, which sets the coverage area, so the old prep and any chewed-up wood needs to sit inside that footprint. If a lever or knob is going back in the same hole, this isn't the plate you want, since there is no hole to pass a spindle through.
3) Does the Don-Jo 70 CW wrap around plate come with screws, or do I need to buy fasteners separately?
Trim screws are in the box. Nothing else is required to hang the 70 CW on a 1-3/8 inch door, so it is a one-trip repair for a maintenance tech. Each order is a shelf pack of 1, meaning one plate per pack, so a building doing ten doors orders ten.
4) What finishes does the Don-Jo 70 CW blank wrap around come in to match my existing door hardware?
Five: 10B oil rubbed bronze, AB antique brass, BZ satin bronze, PB polished brass, and S satin stainless. Those are the standard BHMA finish equivalents 613, 609, 612, 605 and 630, so a property manager matching a floor of doors can spec the plate off the same finish code already on the lever or hinges.
5) Is 22-gauge steel heavy enough for a wrap around plate on a school or office door?
The 70 CW is 22-gauge (.032) steel and Don-Jo builds it for commercial use, which is the usual weight for door trim of this kind, offices, schools, healthcare, retail and multi-tenant residential. It is trim, not a security reinforcer: it dresses and covers a prep, it does not add pull resistance to the lock. If the goal is to stiffen a weak door edge or resist a kick, a wrap around latch protector or a reinforcer is the part to look at instead.
6) Will a Don-Jo 70 CW wrap around plate hide a hole left by a removed deadbolt or knob set?
Yes, within its 4-1/4 by 4-1/2 inch face. The blank plate is the quick way to close out a decommissioned bore on a 1-3/8 inch door without patching, plugging and refinishing the leaf. Two things decide it: the hole has to fall inside that footprint, and the plate wraps the door edge, so anything still mounted at the edge, a strike lip or a latch face left in place, has to come out first.
7) What is the difference between the Don-Jo 70 CW and the 70 V wrap around?
Packaging, not the plate. The CW is the shelf pack of 1, and the display packaged version of the same 70 wrap around is ordered by swapping the CW for a V in the item number. Contractors and MRO buyers pulling plates by the box want the CW; a retail counter that hangs product on a peg wants the V.
8) Is the Don-Jo 70 CW wrap around handed, and does it matter which side of the door it goes on?
The 70 CW has no cutouts at all, so there is no left or right version to specify and no handing on the order. It wraps the lock edge of a 1-3/8 inch door and can go on either face. The only orientation decision on the job is which side of the opening you want the finished plate showing on.
