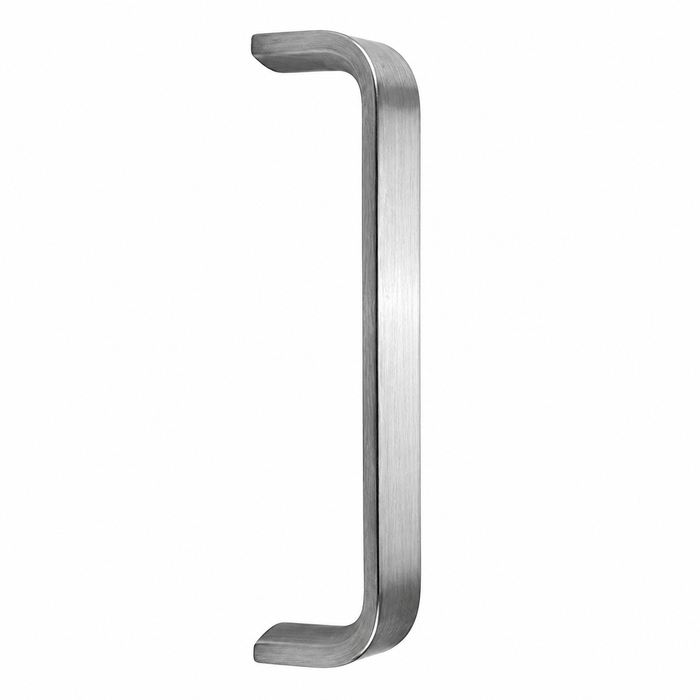

Don-Jo 37 Cast Door Pull — 6" CTC, 6-1/2" Overall, 2" Projection, 1-1/2" Clearance

Don-Jo 37 Cast Door Pull — 6" CTC, 6-1/2" Overall, 2" Projection, 1-1/2" Clearance

(No reviews yet) Write a Review

Model: 37-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$73.30
$56.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 37 Cast Door Pull — 6" CTC, 6-1/2" Overall, 2" Projection, 1-1/2" Clearance

The Don-Jo 37 is a commercial-grade cast door pull engineered for durability and reliable everyday performance. Featuring a 6" center-to-center (CTC) spacing, 6-1/2" overall length, 2" projection, and 1-1/2" clearance, this pull offers a 1" half-round diameter grip profile that is comfortable and easy to use. Compliant with ANSI J401 standards, the Don-Jo 37 is an ideal choice for commercial door applications requiring a dependable, professional-grade pull in a variety of available finishes.

Key Features

  • Center-to-Center (CTC) Spacing: 6" CTC measurement ensures straightforward, standardized mounting on commercial doors.
  • Overall Length: 6-1/2" overall length provides a proportional, professional appearance suited to a wide range of door sizes.
  • Projection: 2" projection offers comfortable hand clearance for easy gripping and operation.
  • Clearance: 1-1/2" clearance between the grip and door surface for comfortable hand access.
  • Grip Profile: 1" half-round diameter delivers a secure, ergonomic grip for high-traffic commercial use.
  • Cast Construction: Solid cast build provides long-lasting durability and a premium look for commercial door trim applications.
  • Multiple Finish Options: Available in finishes 605, 613, and 630 to coordinate with existing door hardware and architectural aesthetics.
  • ANSI J401 Compliant: Meets ANSI J401 standards, ensuring compatibility and quality assurance for commercial installations.

Certifications & Compliance

  • ANSI J401 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Commercial/Residential: Commercial
  • Product Model: 37
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 37?

Don-Jo 37 door pulls are built to commercial standards with solid cast construction and ANSI J401 compliance, delivering the consistent performance and professional finish that demanding commercial environments require. With a 1" half-round grip, 2" projection, and a choice of three finishes — 605, 613, and 630 — the Don-Jo 37 offers both functional reliability and design flexibility for any commercial door hardware project.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Commercial/Residential:
Commercial
Product Model:
37
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 37-630 – Frequently Asked Questions

1) Does the Don-Jo 37 pull meet ANSI J401?
The 37 cast pull is ANSI J401 compliant, which is the door pull designation an architect or facility spec writer calls out on a commercial hardware schedule. It is built as commercial-grade hardware, not a residential pull.
2) Is a 6-inch pull long enough for a full-height commercial entrance door?
At 6 inches CTC and 6-1/2 inches overall, the 37 is a short grab pull. It fits storeroom doors, restroom doors, cabinet and utility doors, and back-to-back service openings. For a glass or aluminum entrance where the user needs a long vertical grip, step up to something like the Deltana SSP1210 12 inch contemporary pull or the 24 inch back-to-back Deltana SSPOBB24.
3) What is the closest heavy duty equivalent to the Don-Jo 37 door pull with a 1 inch round grip?
The Ives 8103HD is a heavy duty straight door pull with a 1 inch round bar and through bolt mounting, which puts it in the same grip diameter class as the Don-Jo 37 and its 1 inch half-round profile. The difference is the bar shape: the Don-Jo 37 uses a half-round section against the door, while the 8103HD is a full round bar. The Don-Jo 37 carries a 6 inch center-to-center spacing with 6-1/2 inch overall length, so confirm the hole pattern on the door before swapping, since through bolt patterns are drilled to the specific pull.
4) The Don-Jo 37 is a straight pull - what do I use if the opening needs an offset pull instead?
For an offset grip, the ABH AB3310 is an offset flat end door pull in a commercial grade surface mount, and the ABH AB3330 is an offset round end pull with custom length options if the mounting centers need to be something other than a stock spacing. The Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting, which holds the same 1 inch grip diameter as the Don-Jo 37 while moving the hand off the door face. The Ives 8145EZHD is a 45 degree offset pull with heavy duty mounting hardware and is ADA compliant, which matters on barrier-free openings.
5) Is a push plate a substitute for the Don-Jo 37 door pull?
No. The Don-Jo 37 is a grip pull with a 2 inch projection and 1-1/2 inch clearance, meant for the pull side of a door. A push plate such as the Trimco 1001-1 heavy duty push plate at 3 inches by 12 inches, or the Trimco 1041 half-round push plate at 8 inches by 16 inches, sits flat on the push side and gives the hand nothing to grip. They are normally ordered together as a set on one opening, not one in place of the other. If you want both functions on the same trim, the Trimco 1070 Series classic push/pull plates at 3-1/2 inches by 15 inches combine a plate with an integral pull.
6) I need a longer pull than the 6-1/2 inch Don-Jo 37 for a glass or entry door - what are my options?
The Don-Jo 37 is a short grip pull at 6-1/2 inches overall on 6 inch centers. For a longer run, the Deltana SSP1210 is a 12 inch contemporary pull mounted single side. For full-height entry treatment, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull and the Deltana SSPORBB24 is a 24 inch back-to-back round offset pull, both supplied as a pair for through mounting on both faces. The ABH AB3330 offers custom length options if the mounting centers have to match an existing hole pattern.
7) Which pull should I use if the door needs an ADA compliant grip?
The Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware and is ADA compliant, so it is the direct choice where the opening has to meet barrier-free requirements. The Don-Jo 37 is a cast commercial pull compliant with ANSI J401 with a 1 inch half-round grip, 2 inch projection, and 1-1/2 inch clearance between the grip and the door face. Where the specification calls out ADA explicitly, order to the 8145EZHD.
8) How much hand clearance does the Don-Jo 37 pull give, and is it enough with gloves on?
Clearance between the grip and the door face is 1-1/2 inches, with a total projection of 2 inches off the door. The grip itself is a 1 inch half-round bar. That 1-1/2 inch gap is the usual commercial pull clearance, workable with a gloved hand but tighter than the deeper offset pulls used on shop and warehouse doors.
9) What finishes does the Don-Jo 37 cast pull come in for matching existing hardware?
Three finishes: 605 polished brass, 613 oil rubbed bronze, and 630 satin stainless steel. If the rest of your openings are on 626 satin chrome, 630 is the closest visual match in the group; 613 suits dark bronze packages and 605 bright brass.
10) Straight pull or offset pull for a commercial door?
The 37 is a straight half-round pull, both ends landing on the door on the same plane, which is what you want where the pull sits in the middle of a stile and hands come at it square. An offset pull angles the grip away from the face and is easier to grab from the side, on a narrow stile, or where a hand approaches at an angle. In offset, ZenSupply carries the Ives 8145 45 degree offset and the Ives 8169 C style offset, plus the ABH AB3310 offset flat end.
11) Can I use the Don-Jo 37 as the pull side of a push/pull set on a restroom or corridor door?
Yes, that is the common pairing. The 37 goes on the pull side and a push plate goes on the swing side. ZenSupply carries the Trimco 1001-1 heavy duty push plate at 3 by 12 inches and the Trimco 1041 half-round push plate at 8 by 16 inches for the opposite face. If you would rather buy the pair as one unit, the Trimco 1070 Series classic push/pull plates come as combined plates at 3-1/2 by 15 inches.
12) Does the Don-Jo 37 pull have a handing, and can I mount it vertically or horizontally?
No handing. The 37 is a symmetrical straight pull with matching ends, so one part works on left or right hand doors and can be set vertically on a stile or horizontally on a rail. Decorative offset pulls do carry handing, for example the Emtek Art Nouveau 8 inch pull is ordered by hand.
13) I need a smaller grip diameter than the Don-Jo 37 for a lighter door - what pull should I use?
The ABH AB7200 is a solid stainless steel flat end pull handle with a 7/8 inch diameter and through bolt mounting, a step down from the 1 inch grip on the Don-Jo 37. The Ives 8102HD is another option, a heavy duty straight pull built on a 3/4 inch round bar with 1-1/2 inch clearance, which matches the 1-1/2 inch clearance the Don-Jo 37 provides. All three are surface applied pulls; the choice is grip thickness and how the bar reads against the door.
14) What is the difference between the Don-Jo 37 and the Cal-Royal PUL-175?
They solve different problems. The Don-Jo 37 is a cast commercial door pull with 6 inch center-to-center mounting and a 1 inch half-round grip, applied wherever a hand pull is needed. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inches in height, stainless steel construction, designed to mount around a rim cylinder so the door can be pulled at the cylinder location. If the opening has a rim cylinder that needs a pull around it, the PUL-175 is the part; for a general pull-side grip, the Don-Jo 37 applies.
15) Can I order the Don-Jo 37 as a back-to-back set for both sides of the door?
The Don-Jo 37 is ordered as a single pull with 6 inch center-to-center mounting, offered in 605 polished brass, 613 oil rubbed bronze, and 630 satin stainless steel. If the opening needs matching pulls on both faces from one order, the Deltana OHP620 off-set handle pull is supplied as a back-to-back set and is built for doors 1-1/8 inch to 1-3/8 inch thick, and the Deltana SSPOBB24 and SSPORBB24 are 24 inch back-to-back pairs. For a heavier commercial door, the through bolt mounting on the Ives 8103HD is the usual way two pulls are tied through the same door.
16) What should I specify instead of the Don-Jo 37 on a restroom door where the user does not want to touch the handle?
The Trimco 1035 Ultimate Restroom Pull is the purpose-built option for that opening, a heavy duty pull in the 1035 Series intended for restroom doors. The Don-Jo 37 is a general commercial cast pull with a 1 inch half-round grip and 2 inch projection, and is used across office, retail, healthcare, educational, and multi-tenant residential doors. Where the restroom door is the specific concern, the 1035 addresses it directly; where you are standardizing pull-side trim across a building, the 37 covers the general openings.
17) What is the difference between the Don-Jo 37 and the ABH AB3300 pull?
Both are straight commercial pulls on a 1 inch grip: the ABH AB3300 is a straight flat end pull handle at 1.00 inch diameter, and the Don-Jo 37 is a cast pull with a 1 inch half-round diameter grip. The end treatment is the visible difference, flat ends on the AB3300 against the cast body of the 37, and the 37 is fixed at 6 inch center-to-center with 6-1/2 inch overall length, which is what to check against the door prep. Finishes on the 37 are 605 polished brass, 613 oil rubbed bronze, and 630 satin stainless steel.
18) Is the Don-Jo 37 pull durable enough for a high-traffic school or hospital door?
Solid cast construction is what the 37 is built on, and it is rated commercial grade against ANSI J401. It is specified for office buildings, schools, healthcare, retail, industrial and warehouse space, multi-tenant residential, and government buildings. For a restroom door where users want to avoid touching the handle, the Trimco 1035 Ultimate Restroom Pull is the purpose-built alternative.
19) I need a decorative pull for a residential or boutique entry, is the Don-Jo 37 the right choice?
Probably not. The 37 is plain commercial door trim, designed to disappear into a hardware schedule rather than carry a design statement. For a decorative entry, look at the Emtek 8 inch pulls, offered in Art Nouveau, Arts and Crafts, Baden, and Brisbane styles, with the Art Nouveau in lost wax cast bronze.
