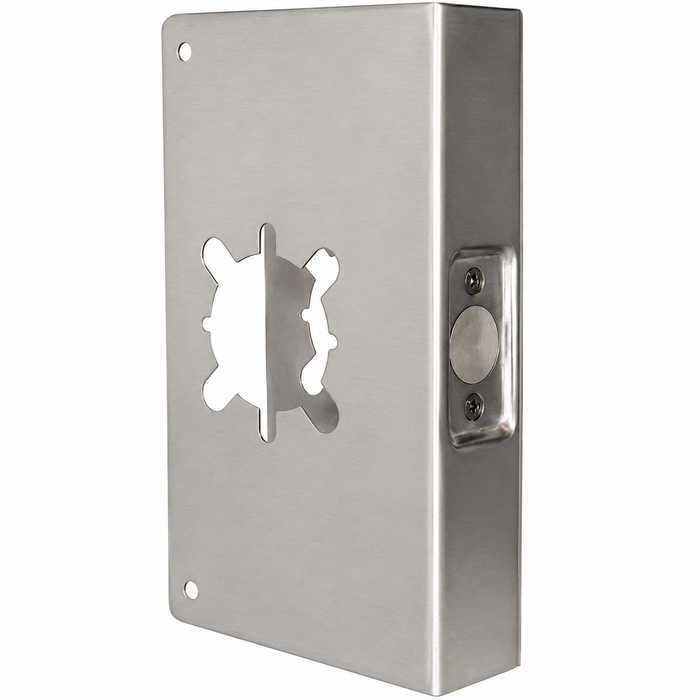

Don-Jo 4-2-CW Wrap Around for 1-3/4" Door, 2-3/4" Backset, 22 Gauge Steel

The Don-Jo 4-2-CW is a commercial-grade wrap around plate engineered for 1-3/4" door thickness with a 2-3/4" backset, providing a clean, professional finish around door lock hardware. Constructed from 22 gauge (.032) steel, this wrap around measures 4-3/4" wide by 9" tall and features a lever hole prep and latch prep indent to accommodate standard commercial door hardware configurations. Available in multiple finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630), the Don-Jo 4-2-CW is packaged in a standard box (4-1/2" x 9-3/4") and sold individually.

Key Features

  • Door Thickness Compatibility: Designed specifically for 1-3/4" door thickness, ensuring a precise and secure fit on standard commercial doors.
  • Backset Specification: Configured for a 2-3/4" backset to align accurately with existing lock and latch hardware.
  • Plate Dimensions: Measures 4-3/4" wide by 9" tall, providing ample coverage around the lock prep area for a finished appearance.
  • 22 Gauge Steel Construction: Fabricated from 22 gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Lever Hole Prep: Pre-punched lever hole prep accommodates standard lever-style door hardware for straightforward installation.
  • Latch Prep Indent: Integrated latch prep indent ensures proper alignment and fit with the door latch mechanism.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to coordinate with existing door hardware.
  • Alternate Display Packaging Available: A display package (5-1/4" x 11") is also available; when ordering, replace "CW" with "V" after the item number to specify display packaging.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 4-2-CW?

Don-Jo wrap around plates are built to commercial standards, with 22 gauge (.032) steel construction that delivers reliable durability in high-traffic door applications. The 4-2-CW is engineered for precise compatibility with 1-3/4" doors and 2-3/4" backsets, offering a professional finish and multiple finish options to suit any commercial hardware specification. For facilities requiring consistent, code-compliant door trim solutions, the Don-Jo 4-2-CW is a dependable choice.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
4 2 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 4-S-2-CW – Frequently Asked Questions

1) How do I know if I need the 2-3/4 inch backset wrap around or the 2-3/8 inch one?
Measure from the edge of the door to the center of the lever hole. If that is 2-3/4 inches, the 4-2-CW is the right plate; its lever hole prep is punched at a 2-3/4 inch backset so the hole lands over your existing bore. Measure 2-3/8 inches instead and you need the 2-3/8 backset version, because the hole will not line up on this one. Commercial openings with mortise or heavier bored locks are usually 2-3/4; 2-3/8 shows up more on lighter residential-style hardware.
2) I have 40 apartment doors with beat-up lock areas. Can I standardize on one wrap around plate?
If those doors are all 1-3/4 inch thick with 2-3/4 inch backset levers, yes, the 4-2-CW covers the whole fleet with a single part number. Pick one of the five finishes and every door reads the same. Where it breaks down is mixed door thickness or mixed backsets, which is common in a building that has been re-hardwared over the years, so walk a few doors and measure the edge-to-center dimension before you order the full quantity.
3) Does the Don-Jo 4-2-CW work with a knob, or only a lever?
The prep is a lever hole, punched to clear lever-style trim. A round knob rose will pass through a lever hole as well since the lever cutout is the larger opening, but the plate is cut for lever hardware and that is the fit it is drawn for. If your doors are on knobs and you want the cutout to close up tight around the rose, the knob-prep wrap around is the closer match.
4) Is 22 gauge steel heavy enough for a high traffic commercial door?
22 gauge (.032) steel is the standard weight for this class of wrap around, and it is what the 4-2-CW is built from. It is thin enough to wrap the door edge and sit flat under the lock trim without shimming, and stiff enough to take the daily abuse a corridor or entry door sees. It is a cover plate, not a reinforcement, so it hides and protects the face of the door but does not add strength to the lock prep itself.
5) Does the wrap around clear the latch, or do I have to cut it?
No cutting. The 4-2-CW has a latch prep indent formed into the edge wrap, so the plate seats over the door edge with the latch face passing through. Pull the lever trim and the latch faceplate, slip the plate on, and reinstall over the top.
6) What is the difference between the 4-2-CW and the 4-2-V from Don-Jo?
Same plate, different packaging. The CW suffix is the standard box, 4-1/2 by 9-3/4 inches, sold individually. Swap the CW for V after the item number and you get the display package, 5-1/4 by 11 inches, which is what a retail counter or a hardware aisle wants. If the plates are going straight to a job or a maintenance shop, order the CW.
7) Will one Don-Jo 4-2-CW cover both sides of the door?
It covers one face plus the edge. A wrap around plate is 4-3/4 inches wide and folds over the door edge, so it lands on the face where the damage is and hides the edge as it goes. If both sides of the door are scarred, order two, one for each face. Levers and roses come off, plate goes on, trim goes back over it.
8) What finishes does the Don-Jo 4-2-CW wrap around come in?
Five: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). Satin stainless 630 is the one that matches most commercial lever and exit hardware; the brass and bronze options are there for older buildings where the existing trim is not stainless.
