Don-Jo 514-CW Wrap Around Plat...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$89.00
$29.74
Don-Jo 514-S-CW Wrap Around Plate, Satin Stainless Steel, 5-1/8" x 12", for Mortise Locks with 2-3/4" Backset and 1-3/4" Door

Don-Jo 514-CW Wrap Around Plate 5-1/8" x 12" for Mortise Locks with 2-3/4" Backset and 1-3/4" Door

(No reviews yet) Write a Review

Model: 514-PB-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$89.00
$29.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 514-CW Wrap Around Plate for Mortise Locks

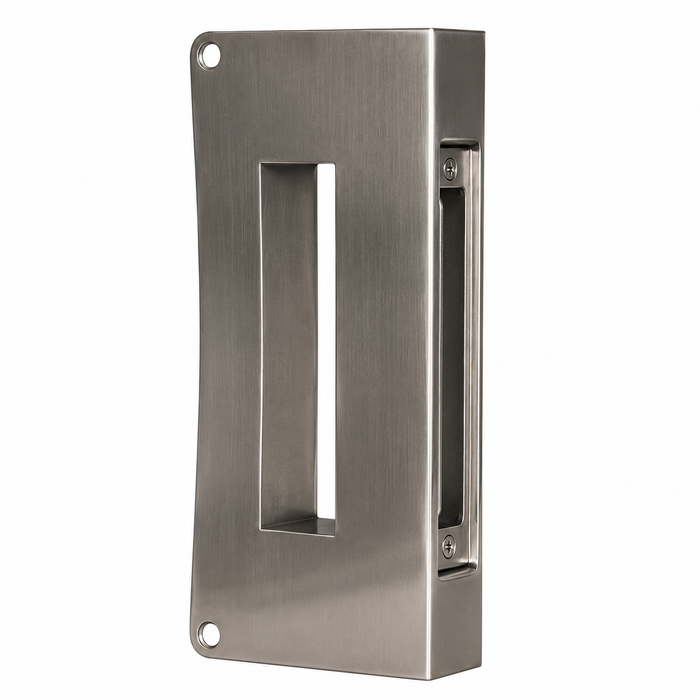

The Don-Jo 514-CW Wrap Around Plate is a commercial-grade door reinforcement plate for mortise locks with full escutcheon trim. It measures 5-1/8" wide by 12" tall and is constructed from 22-gauge (.032) steel. The plate includes a 1-5/8" x 7-5/16" rectangular cutout to accommodate mortise lock hardware, and is sized for 1-3/4" door thickness with a 2-3/4" backset.

Key Features

  • Dimensions: 5-1/8" wide x 12" tall
  • Cutout: 1-5/8" x 7-5/16" rectangular cutout for mortise lock hardware
  • Material: 22-gauge (.032) steel
  • Backset: 2-3/4"
  • Door Thickness: 1-3/4"
  • Lock Compatibility: Mortise locks with full escutcheon trim, includes mortise latch prep
  • Use: Commercial
  • Finish Options: 10B (613 Oil Rubbed Bronze), BZ (612 Satin Bronze), PB (605 Polished Brass), S (630 Satin Stainless Steel)

Typical Applications

  • Commercial office buildings
  • Educational facilities
  • Healthcare institutions
  • Retail establishments
  • Government and municipal buildings
  • Multi-tenant residential properties
  • Industrial and warehouse facilities

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
514 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 514-PB-CW – Frequently Asked Questions

1) Will a Don-Jo 514-CW wrap around plate cover a torn-up mortise lock prep on a commercial door?
That is the job the 514-CW does. It is a wrap around plate, 5-1/8 by 12 inches in 22-gauge (.032) steel, that bends around the lock edge and covers the door face around a mortise prep. The 1-5/8 by 7-5/16 inch rectangular cut out passes the mortise lock trim through, so stripped screw holes, an oversized old prep, or a chewed face inside that 5-1/8 by 12 inch footprint end up covered and backed by steel. It is cut for a 2-3/4 inch backset on a 1-3/4 inch door. Damage that falls outside the plate footprint will still show.
2) My mortise lock is prepped at a 2-3/4 inch backset. Will the 514-CW cut out line up with it?
It will. The 514-CW is cut for a 2-3/4 inch backset, which is the usual backset on commercial mortise locks, and the 1-5/8 by 7-5/16 inch opening is positioned off the door edge for that dimension. Measure from the door edge to the center of the lock trim before you order: if your prep is at some other backset, the cut out will not sit over the trim and the plate cannot be shifted to make up the difference.
3) Will the Don-Jo 514-CW wrap around fit a 1-3/8 inch door?
No. The 514-CW is made for 1-3/4 inch doors only. A wrap around is formed to a specific door thickness so the return grips the far face; on a 1-3/8 inch door the wrap would stand proud of the opposite face and the plate would not pull flat against the door. 1-3/4 inch is the standard commercial door thickness and 1-3/8 inch is the common older interior thickness, so for a 1-3/8 inch door you need a wrap around formed for that thickness instead.
4) I have a knob or lever lock with a round bore, not a mortise lock. Can I use the 514-CW?
No, this one will not work for a bored lock. The 514-CW has a single 1-5/8 by 7-5/16 inch rectangular opening cut for mortise lock trim. A cylindrical knob or lever passes through a round cross bore, and a rectangle that size leaves the rose with no flat steel to bear against and exposes the bore. For a knob or lever you want a wrap around with a round cut out sized to your bore diameter and backset, not this mortise version.
5) Does the 514-CW work with mortise lock trim that has a separate knob rose and cylinder ring, or only a full escutcheon?
Full escutcheon trim. The 514-CW is cut specifically for mortise locks with full escutcheon trim, and its opening is one continuous 1-5/8 by 7-5/16 inch rectangle running up the plate so the escutcheon passes through as a single piece. If the doors you are working on carry separate rose and cylinder trim, that hardware calls for a different cut out pattern and this is not the plate for it.
6) Is the 514-CW a lock, or just a plate that goes over the door?
It is a plate only, no lock and no latch. The 514-CW wraps the lock edge of the door and covers the face around an existing mortise prep in 22-gauge (.032) steel, with a cut out for your own mortise lock trim to pass through. You keep the lock you have, or fit a new one; the plate reinforces and hides the door face around it. Coverage is 5-1/8 by 12 inches.
7) What finishes does the Don-Jo 514-CW come in, and which one matches satin stainless lock trim?
Four finishes: 10B oil rubbed bronze (613), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). For a building standardized on satin stainless or brushed chrome lock trim, S (630) is the match. BZ (612) is the lighter satin bronze and 10B (613) the dark oil rubbed bronze, so check which one your existing escutcheons actually are before ordering across a floor of doors, since the two read very differently side by side.
8) What do I have to specify when ordering a Don-Jo 514-CW wrap around?
Finish is the only thing you choose. Everything else on the 514-CW is fixed: 5-1/8 by 12 inches, 22-gauge (.032) steel, a 1-5/8 by 7-5/16 inch cut out for full escutcheon mortise trim, formed for a 1-3/4 inch door, cut at a 2-3/4 inch backset. Pick one of 10B (613), BZ (612), PB (605) or S (630). Because thickness and backset are not options, those two numbers are what you verify on the door first.
9) Is a 22-gauge wrap around plate heavy enough for a high traffic door in an office or school?
The 514-CW is 22-gauge (.032) steel and Don-Jo builds it as a commercial part, meant for the mortise lock openings in offices, schools, healthcare, retail and multi-tenant buildings. At that gauge the plate takes the daily wear at the trim, keeps a worn or repaired prep from opening up further, and gives the lock screws a continuous steel face to pull against across 5-1/8 by 12 inches. It is a face reinforcement and cover, not a heavy armor plate.
