Don-Jo 8255-CW Wrap Around Plate 5-1/8" x 12" with 2-3/4" Backset for Mortise Locks

Don-Jo 8255-CW Wrap Around Plate 5-1/8" x 12" with 2-3/4" Backset for Mortise Locks

(No reviews yet) Write a Review

Model: 8255-RH-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$57.36
$44.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 8255-CW Wrap Around Plate 5-1/8" x 12" with 2-3/4" Backset for Mortise Locks

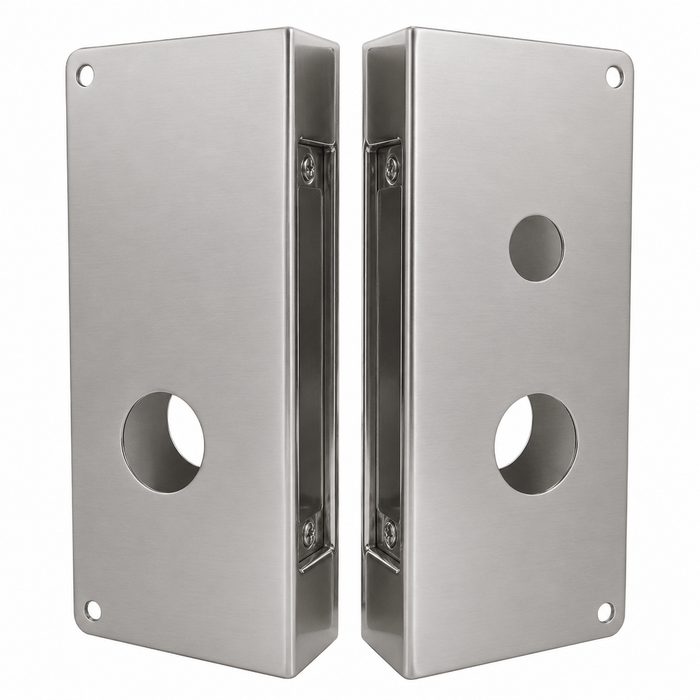

The Don-Jo 8255-CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 12" tall, engineered to reinforce and protect door surfaces around mortise lock installations. Designed for 1-3/4" doors with a 2-3/4" backset, this wrap around is constructed from 22-gauge (.032) steel for durable, long-lasting performance. It is specifically designed for compatibility with Sargent 8204, 8206, 8255, and other single cylinder function mortise locks, making it a reliable choice for commercial door hardware applications.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 12" tall, providing full coverage and reinforcement around mortise lock cutouts on commercial doors.
  • Backset Compatibility: Designed for a 2-3/4" backset, ensuring proper alignment with standard mortise lock installations.
  • Door Thickness: Engineered for 1-3/4" doors, the most common thickness in commercial door applications.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for robust protection and resistance to forced entry or door surface damage.
  • Mortise Lock Compatibility: Specifically designed for use with Sargent 8204, 8206, 8255, and other single cylinder function mortise locks for seamless integration.
  • Commercial-Grade Application: Rated for commercial use, suitable for high-traffic environments requiring durable door trim and accessory solutions.
  • Convenient Shelf Pack: Sold individually (shelf pack of 1) for straightforward procurement and installation.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Model: 8255 CW RHR
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 8255-CW?

Don-Jo wrap around plates are built to commercial standards, utilizing 22-gauge (.032) steel construction that delivers reliable door surface protection in demanding, high-traffic environments. The 8255-CW is purpose-engineered for compatibility with Sargent 8204, 8206, 8255, and other single cylinder mortise locks, ensuring a precise, professional fit for commercial door hardware installations where durability and accuracy are essential.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
8255 CW RHR
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 8255-RH-S-CW – Frequently Asked Questions

1) Will the Don-Jo 8255-CW wrap around plate fit a Sargent mortise lock?
It is cut for Sargent 8204, 8206 and 8255 mortise locks, plus other single cylinder function mortise locks. The plate is prepped at a 2-3/4 inch backset with a single cylinder opening in the face, so the lock body stays where it is and the cylinder and lever work through the plate. If your Sargent is one of those three, the openings land where they should with no field cutting.
2) How do I figure out which handing to order on a Don-Jo 8255-CW wrap around?
Handing decides this order. The 8255-CW is built in Left Hand, Left Hand Reverse, Right Hand and Right Hand Reverse, and the plate is not symmetrical, so the wrong hand puts the cylinder and lever cutouts on the wrong side of the door. Stand on the keyed side of the opening. Hinges on your left with the door swinging away from you is Left Hand; hinges left with the door pulling toward you is Left Hand Reverse. Hinges on your right swinging away is Right Hand; hinges right pulling toward you is Right Hand Reverse. Match the door, then pick the finish.
3) Can I put a Don-Jo 8255-CW on a 1-3/8 inch door?
No. The 8255-CW is made for 1-3/4 inch doors, which is the standard commercial thickness. A wrap around is formed to a specific door thickness, so on a 1-3/8 inch door, the common older interior thickness, the wrap will not close on the edge and the cutouts will not hold their position over the lock prep. For a thinner door you need a wrap around built for that thickness.
4) My mortise lock isn't a Sargent. Will the 8255-CW line up with it?
The prep matters more than the brand. The 8255-CW is cut to a 2-3/4 inch backset for a single cylinder function mortise lock, so any mortise lock set at a 2-3/4 inch backset with one cylinder opening in the face will land in the plate's openings. 2-3/4 inches is the standard commercial mortise backset, so equivalents from other lines of the same function generally line up. Sargent 8204, 8206 and 8255 are simply the locks called out by name.
5) My mortise lock has a thumbturn as well as a cylinder. Will this wrap around cover it?
Probably not. The 8255-CW is prepped for single cylinder function mortise locks, which put one cylinder opening in the face above the lever. A function carrying a separate thumbturn, an occupancy indicator or a second cylinder needs extra openings, and those are not cut into this plate. If your lock face has more than one hole above or below the lever, this is the wrong wrap around for that door.
6) Will a wrap around plate cover damage around the mortise lock on a beat-up commercial door?
That is the job it does. The 8255-CW measures 5-1/8 inches wide by 12 inches tall and wraps the lock edge of the door, laying 22 gauge (.032) steel over the face around the mortise prep. Gouges, old screw holes from previous trim and scuffed paint around the lever go under it. What it will not do is rebuild the door: the mortise pocket itself still has to be sound enough to hold the lock body and the screws.
7) Should I use a wrap around plate or a filler plate on a door with a mortise lock cutout?
It comes down to whether a lock is going back in. A wrap around like the 8255-CW is cut for a working lock, single cylinder function at a 2-3/4 inch backset, so the cylinder and lever keep operating through the plate while the damaged face is covered. A filler or blank plate is the part for an abandoned prep where nothing goes back in the hole. Put a wrap around on a door that still gets locked; if the mortise is being retired, the wrap around leaves the openings wide open and you want a filler instead.
8) What finishes does the Don-Jo 8255-CW come in, and can I get every finish in the hand I need?
Four finishes: 10B Oil Rubbed Bronze, BZ Satin Bronze, PB Polished Brass and S Satin Stainless. Each one is built in all four handings, so a property manager standardizing a floor or a building can settle on a single finish and still order the correct hand opening by opening. Satin stainless is the usual match against commercial lever hardware; polished brass and oil rubbed bronze are there for older lobby and tenant doors.
9) What do I have to specify when ordering a Don-Jo 8255-CW, and do they come in a box or one at a time?
Two things get called out on the order: finish and hand. The base designation is 8255-CW and a complete part reads like 8255 CW RHR for right hand reverse, with the finish code 10B, BZ, PB or S. They ship individually rather than by the box, so you can order exactly what each opening needs and mix hands and finishes across a job without buying a carton of one configuration.
