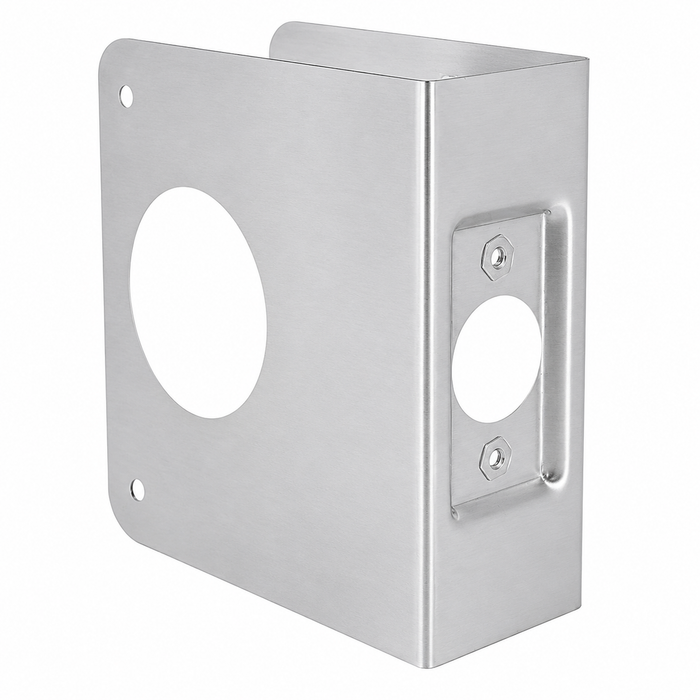

Don-Jo 5-CW 5 CW Wrap Around Plate 4" x 4.5" with 2-3/8" Backset for 1-3/8" Doors

Don-Jo 5-CW 5 CW Wrap Around Plate 4" x 4.5" with 2-3/8" Backset for 1-3/8" Doors

(No reviews yet) Write a Review

Model: 5-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 5 CW Wrap Around Plate 4" x 4.5" with 2-3/8" Backset for 1-3/8" Doors

The Don-Jo 5 CW is a commercial-grade wrap around plate measuring 4" wide by 4.5" tall, engineered to reinforce deadbolt installations on 1-3/8" doors with a 2-3/8" backset. Constructed from 22-gauge (.032) steel, this wrap around accommodates a 1-1/2" hole for deadbolts and features a latch prep indent for precise, clean installation. Available in a range of finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to complement virtually any door hardware aesthetic in commercial applications.

Key Features

  • Precise Dimensions: Measures 4" wide by 4.5" tall, providing reliable coverage and reinforcement around the deadbolt cutout on the door face.
  • Backset Compatibility: Designed for a 2-3/8" backset, ensuring proper alignment with standard deadbolt hardware configurations.
  • Door Size Compatibility: Engineered specifically for 1-3/8" door thickness, a common dimension in commercial and light commercial door applications.
  • Deadbolt Application: Designed for use with deadbolts requiring a 1-1/2" hole, providing a secure and finished appearance around the lock cutout.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door hardware installations.
  • Latch Prep Indent: Features a latch prep indent for accurate positioning and a professional, flush fit against the door surface.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match a wide variety of door hardware and architectural styles.
  • Display Packaging Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why Don-Jo 5 CW?

Don-Jo wrap around plates are built to professional commercial standards, with 22-gauge (.032) steel construction that delivers lasting durability in high-use door hardware applications. The 5 CW's precise 4" x 4.5" dimensions, latch prep indent, and broad finish selection make it a dependable choice for contractors and facility managers seeking a clean, finished deadbolt installation on 1-3/8" doors.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/8"
Cross Bore:
1-1/2"
Product Model:
5 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
Department:
Door Hardware

Don-Jo 5-S-CW – Frequently Asked Questions

1) Can a wrap around plate repair a door that got kicked in around the deadbolt?
That is what the 5 CW is for. It is a 22-gauge (.032) steel plate that wraps the edge of a 1-3/8 inch door and covers the face around the deadbolt cutout, reinforcing a splintered or worn bore instead of replacing the door. Coverage area is 4 by 4.5 inches, so damage outside that footprint will still show.
2) Does the Don-Jo 5 CW wrap around plate work with my deadbolt's bore and backset?
It is cut for a 1-1/2 inch cross bore on a 2-3/8 inch backset. Most residential-pattern deadbolts use a 1-1/2 inch bore, and 2-3/8 inch is the shallower of the two standard backsets, so measure from the door edge to the center of the deadbolt hole before ordering. If yours measures 2-3/4 inches, this plate will not line up.
3) Do I need to order a left hand or right hand version of the Don-Jo 5 CW?
No handing to specify. The 5 CW is ordered by finish alone, in 10B oil rubbed bronze, AB antique brass, BZ satin bronze, PB polished brass, or S satin stainless. The plate wraps the lock edge and works on either swing.
4) Can I standardize Don-Jo 5 CW wrap plates across a building with mixed door thicknesses?
Only on the 1-3/8 inch openings. That thickness is common on older interior and light commercial doors, while exterior and rated openings are usually 1-3/4 inch and need a different wrap. Finish is the part you can standardize: satin stainless (S/630) is the usual pick for matching commercial lever and deadbolt trim across a fleet.
5) What is the difference between the Don-Jo 5 CW and the 5 V wrap around plate?
Same plate, different packaging. Swapping the CW suffix for V after the item number gets you the display-packaged version. If you are buying for a jobsite or a maintenance shop the CW is the one to order; the V is for retail display.
6) Is 22-gauge steel heavy enough for a wrap around plate in a commercial building?
22-gauge (.032) steel is what Don-Jo rates the 5 CW as commercial-grade material, and it is the standard weight for wrap arounds doing cosmetic cover and bore reinforcement on wood doors. It is a repair and reinforcement plate, not a security strike or a full edge guard - if the frame side is the weak point, that needs a separate strike reinforcer.
