Don-Jo 9080 CW Wrap Around Pla...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$57.36
$43.40

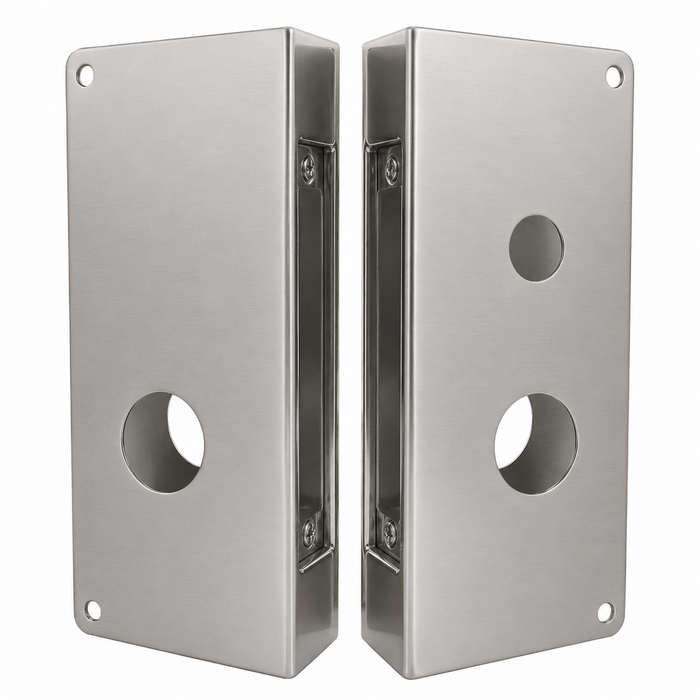

Don-Jo 9080-CW wrap around plate, 5-1/8" x 12", 2-3/4" backset, Satin Stainless Steel finish, front and back view

Don-Jo 9080 CW Wrap Around Plate 5-1/8" x 12" with 2-3/4" Backset for Schlage Mortise Locks

(No reviews yet) Write a Review

Model: 9080-RH-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$57.36
$43.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 9080 CW Wrap Around Plate for Schlage Mortise Locks

The Don-Jo 9080 CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 12" tall, built for select Schlage mortise locks with single cylinder functions. Constructed from 22-gauge (.032) steel, it fits 1-3/4" doors with a 2-3/4" backset, covering and reinforcing the mortise lock area for a clean, professional installation. Available in four finishes: Oil Rubbed Bronze (10B), Polished Brass (605), Satin Bronze (612), and Satin Stainless Steel (630). Ordered by handing: Left Hand (LH), Left Hand Reverse (LHR), Right Hand (RH), and Right Hand Reverse (RHR).

Key Features

  • Dimensions: 5-1/8" wide x 12" tall
  • Backset: 2-3/4"
  • Door Thickness: 1-3/4"
  • Material: 22-gauge (.032) steel
  • Lock Compatibility: Select Schlage mortise locks, single cylinder functions
  • Handing: Available in LH, LHR, RH, and RHR
  • Finishes: Oil Rubbed Bronze (10B), Polished Brass (605), Satin Bronze (612), Satin Stainless Steel (630)
  • Application: Commercial

Typical Applications

  • Commercial office buildings
  • Educational facilities
  • Healthcare institutions
  • Retail establishments
  • Government and municipal buildings
  • Multi-tenant residential properties
  • Industrial and warehouse facilities

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
9080 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 9080-RH-S-CW – Frequently Asked Questions

1) Does the Don-Jo 9080 CW work with a 2-3/8 inch backset lock?
No. The cylinder and spindle cutouts on the 9080 CW are laid out for a 2-3/4 inch backset, which is the standard mortise lock backset. If the lock on your door is a 2-3/8 inch backset, the holes won't line up with the trim and cylinder and the plate won't mount. Measure from the door edge to the center of the knob or lever spindle before ordering.
2) Do I have to specify handing when I order a Don-Jo 9080 CW wrap plate?
Yes, handing is an ordering decision on this one. The 9080 CW comes in Left Hand, Left Hand Reverse, Right Hand and Right Hand Reverse. Stand outside the door (the key side): if the hinges are on your left it's a left hand door, hinges on the right is right hand. If the door swings toward you rather than away, it's the reverse version, LHR or RHR. The cutouts are punched to that hand, so a right hand plate will not serve a left hand opening.
3) Which Schlage mortise locks does the Don-Jo 9080 CW wrap around plate fit?
The 9080 CW is cut for select Schlage mortise locks with single cylinder functions, at a 2-3/4 inch backset on a 1-3/4 inch door. Single cylinder means one keyed cylinder opening plus the spindle hole. A double cylinder mortise function, or a mortise lock with a separate thumbturn or indicator prep, has a different face layout and this cutout pattern won't cover it.
4) How much of the door does a 5-1/8 x 12 inch wrap around plate cover?
The 9080 CW measures 5-1/8 x 12 inches, so it covers a band of the door face 12 inches down the lock stile and wraps around the edge onto the other side. That footprint is what hides the damage most doors take at the mortise lock: chewed-out screw holes, an old cylinder hole in the wrong spot, or gouging around the trim. If the damage on your door runs longer than 12 inches, or the stile is narrower than the wrap needs, this size won't hide all of it.
5) Is 22 gauge steel heavy enough for a wrap around plate on a high traffic door?
22-gauge (.032) steel is what the 9080 CW is fabricated from, and Don-Jo rates it for commercial use. A wrap around at this gauge is trim and reinforcement, not a security plate: it stiffens the lock area, spreads screw load, and covers damage on office, school, healthcare and retail doors. If someone has already pried the door and you need the opening to resist another attack, you want a heavier latch protector or edge guard rather than a wrap.
6) What finishes does the Don-Jo 9080 CW come in, and will one match the rest of my door hardware?
Four finishes across every hand: 10B oil rubbed bronze, BZ satin bronze, PB polished brass, and S satin stainless. For a building already standardized on 630 satin stainless levers, the S satin stainless wrap is the match. Dark bronze openings take the 10B. Where the existing trim is brass, PB polished brass is the one that blends. Each finish is available in all four handings.
7) Can I use a wrap around plate instead of replacing a damaged commercial door?
For damage confined to the lock area, yes, and that is the usual reason a property manager buys one. The 9080 CW goes over the existing Schlage mortise lock prep on a 1-3/4 inch door, covering torn-out screw holes and surface damage while the original lock stays in service. What it will not do is fix a door that's warped, delaminated, or damaged away from the lock stile. It's a repair for the lock area, not for the door as a whole.
8) Should I order a wrap around plate or a flat armor plate for a damaged mortise lock door?
A wrap around like the 9080 CW folds over the lock edge of the door and covers both the face and the edge, with the cylinder and spindle cutouts already punched for a 2-3/4 inch backset Schlage mortise lock. A flat plate covers one face only and has no edge coverage or lock cutouts, so it goes on where the damage is on the face and the lock prep is untouched. If the door edge itself is chewed up around the lock, the wrap is what covers it; if you only need to hide a face, a flat plate is less work.
9) How many Don-Jo 9080 CW plates do I need for a pair of doors?
One per leaf, and the two leaves usually take different hands. On a pair, the active and inactive leaves swing opposite ways, so a right hand plate on one and a left hand on the other is normal. Walk each opening and note the hand of every leaf before you place the order rather than assuming the building is uniform, since a plate is punched to one hand and cannot be flipped.
10) Is the Don-Jo 9080 CW model number the same as 9080 CW LHR?
9080 CW LHR is the left hand reverse version of the 9080 CW wrap around. The base model is 9080 CW and the trailing letters call out the hand: LH, LHR, RH or RHR. When you order, give the model plus the hand and the finish code, for example 9080 CW LHR in 10B, and that identifies the exact plate.
