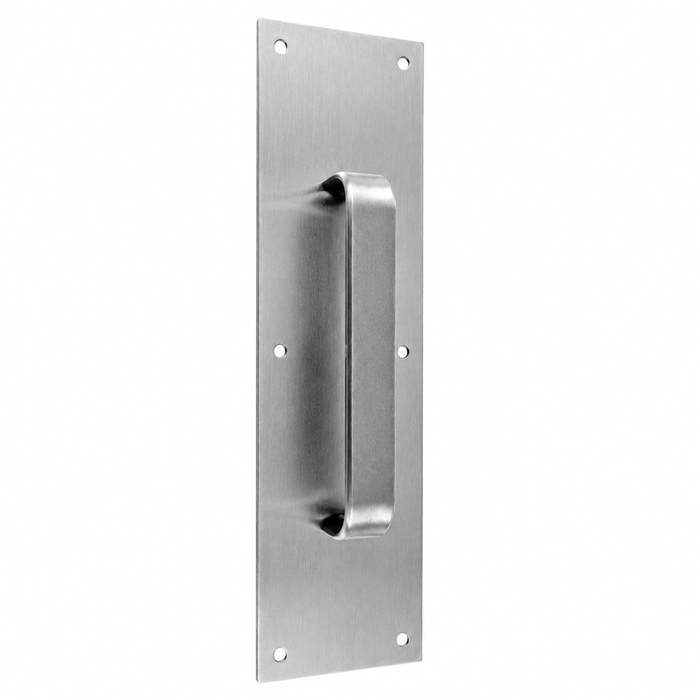

Don-Jo 7037 Pull Plate, 15" x 3-1/2" with 2" Projection, 8" CTC and 1-1/2" Clearance

Don-Jo 7037 Pull Plate, 15" x 3-1/2" with 2" Projection, 8" CTC and 1-1/2" Clearance

(No reviews yet) Write a Review

Model: 7037-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$93.40
$79.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 7037 Pull Plate, 15" x 3-1/2" with 2" Projection, 8" CTC and 1-1/2" Clearance

The Don-Jo 7037 is a commercial-grade pull plate measuring 15" in length by 3-1/2" in width, engineered to provide a secure and ergonomic grip for high-traffic door applications. Featuring a 1" half round diameter pull, 2" projection, 8" center-to-center (CTC) spacing, and 1-1/2" clearance, this pull plate delivers consistent performance in demanding commercial environments. Compliant with ANSI J405, the Don-Jo 7037 is available in multiple finishes including 605, 613, and 630 to suit a variety of architectural aesthetics.

Key Features

  • Generous Plate Dimensions: 15" length by 3-1/2" width provides a substantial mounting surface for secure installation on commercial doors.
  • Ergonomic Pull Design: 1" half round diameter pull offers a comfortable, reliable grip for frequent use in high-traffic settings.
  • Optimized Projection and Clearance: 2" projection and 1-1/2" clearance ensure comfortable hand access and smooth operation for all users.
  • Standard CTC Spacing: 8" center-to-center spacing aligns with common door preparation standards for straightforward installation.
  • Multiple Finish Options: Available in finishes 605, 613, and 630 to complement a wide range of door hardware and interior design schemes.
  • ANSI J405 Compliant: Meets ANSI J405 standards, ensuring compatibility and quality assurance for commercial door hardware applications.
  • Commercial-Grade Construction: Designed and rated for commercial use, providing long-lasting durability in demanding, high-traffic environments.

Certifications & Compliance

  • ANSI J405 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Push and Pull Plates
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Offices
  • Retail Establishments and Storefronts
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 7037?

Don-Jo pull plates are built to meet the rigorous demands of commercial door hardware applications, with the 7037 model conforming to ANSI J405 standards for reliable, code-compliant performance. The combination of a 15" x 3-1/2" plate, 1" half round pull, and multiple finish options makes this an adaptable solution for architects, contractors, and facility managers seeking consistent quality. Engineered for commercial environments, the Don-Jo 7037 delivers the durability and professional appearance required in high-traffic settings.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Product Model:
7037
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 7037-630 – Frequently Asked Questions

1) Will the Don-Jo 7037 pull plate fit my existing 8 inch center-to-center door prep?
Yes. The 7037 pull is spaced 8 inches center to center, which is the common commercial pull prep, so it drops onto an opening already bored for an 8 inch CTC pull. The plate itself covers 15 x 3-1/2 inches, so it will hide most old plate marks in that footprint. If your prep is 10 inch CTC, the Ives 8303 pull plate is offered in 8 or 10 inch center-to-center and is the one to look at instead.
2) Does the Don-Jo 7037 pull plate meet ANSI J405?
The 7037 is ANSI J405 compliant, which is the pull plate designation under the ANSI/BHMA architectural hardware numbering used on most commercial specs. If the door schedule calls out a J405 pull plate, this answers it.
3) What is the difference between a pull plate and a push plate, and do I need both?
A pull plate carries a grip and goes on the pull side of the door; a push plate is flat and takes the palm pressure on the push side. On a single-acting door you normally order one of each, matched in finish. The Don-Jo 7037 is the pull half, 15 x 3-1/2 inches. For the flat push side in the same footprint, Delaney offers a 3-1/2" x 15" push plate, and a 4" x 16" push plate if you want a larger cover.
4) I need a pull plate with a shorter grip than 8 inch CTC. What are my options?
The Don-Jo 7037 is fixed at 8 inch center to center, so if you need a tighter grip you are looking at a different plate. Trimco's 1010 and 1013 run a 5 inch and 5.5 inch CTC pull respectively, the 1012 is 5.5 inch CTC in a cast tapered style, and the Trimco 1014 half-round is 6 inch CTC. Those matter when the plate lands close to a lock or a narrow stile and a long grip would crowd it.
5) Will a 15 inch pull plate fit a narrow aluminum storefront stile?
Plate width is the constraint, not length. The 7037 measures 3-1/2 inches across, so the stile has to be at least that wide plus room for the fasteners, which rules it out on typical narrow stile aluminum doors. On a wide stile aluminum or a hollow metal door it sits fine. If you want a broader plate on a wide stile door, Delaney's 4" x 16" pull plate is the larger footprint in our range.
6) Will the Don-Jo 7037 work on a door with an exit device, or do I need a different pull?
The Don-Jo 7037 is a standalone pull plate on a 15 inch by 3-1/2 inch plate with 8 inch center-to-center mounting, sized for the stile of a swinging door. If the opening carries a Detex Value Series exit device, the Detex P/PN Series Pull Plate is the pull built to go with that device, so its mounting is coordinated to the device rather than to a general 8 inch prep. Check which device is on the door before ordering either one.
7) What is the closest equivalent to the Don-Jo 7037 pull plate in a 3-1/2 by 15 inch size from another brand?
The Delaney 3-1/2" x 15" Door Pull Plate is the direct size match. Both carry a pull mounted on a 3-1/2 inch wide by 15 inch long plate, so the door prep and the visual footprint on the stile are the same. The Don-Jo 7037 pull itself is a 1 inch half round with 2 inch projection, 8 inch center-to-center and 1-1/2 inch clearance, so confirm the Delaney pull geometry matches what your hand and glove clearance require before swapping.
8) What pull plate has the same half-round pull shape as the Don-Jo 7037 but narrower center-to-center spacing?
The Trimco 1014 Series is a half-round pull plate with a 6 inch center-to-center pull. The Don-Jo 7037 uses a 1 inch half round pull on 8 inch center-to-center spacing, so the grip profile is the same family while the mounting holes sit two inches farther apart. On a narrow stile or a door already prepped at 6 inches, the 1014 is the one that drops in.
9) Is a push plate the same part as the Don-Jo 7037 pull plate?
No. The Don-Jo 7037 carries a 1 inch half round pull standing 2 inches off the plate with 1-1/2 inch clearance for the hand, so it is the pull side of a door. A push plate such as the Delaney 3-1/2" x 15" Push Plate is a flat plate with no pull and no drilled pull holes. On a swinging door pair you typically order the pull plate for the pull face and the push plate for the push face; ordering two pull plates leaves the push side with hardware nobody needs to grab.
10) Which pull plate holds up best on a heavy-traffic entrance where the pull gets yanked all day?
The Don-Jo 7037 is a commercial-grade pull plate compliant with ANSI J405 and built for high-traffic door applications. Among cross-brand options, the Ives 8302 is a heavy duty pull plate with through bolt mounting, where the fasteners pass fully through the door rather than threading into the face, and the Trimco 1010, 1012 and 1013 are cast heavy duty pull plates. Through bolting is the detail to specify when the concern is the pull loosening from the door over time.
11) I need to standardize pull plates across a facility with mixed door preps. What are my options?
If every opening is prepped at 8 inch center-to-center, the Don-Jo 7037 covers them on one part number in 605 polished brass, 613 oil rubbed bronze or 630 satin stainless steel. Where the preps are mixed between 8 inch and 10 inch, the Ives 8303 is mounted for 8 inch or 10 inch center-to-center. Where doors are prepped at 5 inch or 5.5 inch, the Trimco 1010 Series is a cast pull plate on 5 inch center-to-center and the Trimco 1012 and 1013 are on 5.5 inch. Survey the existing hole spacing first; that number, not the plate size, decides which one bolts on.
12) How much hand clearance does the Don-Jo 7037 pull give behind the grip?
1-1/2 inches of clearance between the pull and the plate face, with the pull projecting 2 inches off the door. The grip is a 1 inch half round diameter. That is enough room for a gloved hand, which is what matters on service doors and back-of-house openings where staff are carrying things.
13) What finishes does the Don-Jo 7037 pull plate come in, and which one matches stainless hardware?
Three finishes: 605 polished brass, 613 oil rubbed bronze, and 630 satin stainless steel. For a building already running satin stainless levers, closers and push plates, 630 is the match. 613 goes with darker bronze packages, and 605 with bright brass trim.
14) Is the Don-Jo 7037 heavy enough for a school or hospital corridor door?
The 7037 is a commercial-grade pull plate and is used in schools, healthcare buildings, offices, retail and government facilities. If your opening is an abusive one where the pull gets yanked hard every day, the through bolt mounted Ives 8302 or the cast Trimco 1010 and 1012 are the heavy duty options in our range to weigh against it.
15) Does the Don-Jo 7037 pull plate have a handing?
No handing on the 7037. The plate is symmetrical at 15 x 3-1/2 inches with the pull centered on an 8 inch spread, so the same part works on a left or right hand door and on either leaf of a pair. Order by finish only.
16) What if I need a larger plate than the Don-Jo 7037 to cover existing marks or holes on the door?
Step up to the Delaney 4" x 16" Door Pull Plate. It adds a half inch of width and an inch of length over the 15 inch by 3-1/2 inch footprint of the Don-Jo 7037, which is what covers old fastener holes or wear rings left by the hardware coming off. For the matching push face in the same larger size, the Delaney 4" x 16" Push Plate is the companion.
17) What is a more decorative alternative to the Don-Jo 7037 for a lobby or tenant-facing entry?
The Don-Jo 7037 is a commercial pull plate offered in 605 polished brass, 613 oil rubbed bronze and 630 satin stainless steel, with a plain 1 inch half round pull. For a designed appearance, Emtek offers push and pull plates in the Modern, Knoxville and Petal series, the Petal being lost wax cast bronze. Those are chosen for the styling of the plate and pull rather than for a specific 8 inch center-to-center door prep, so verify the mounting against the door before switching.
18) What is the difference between the Trimco 1012 and 1013 pull plates as alternatives to the Don-Jo 7037?
Both Trimco plates are heavy duty cast pull plates with a 5.5 inch center-to-center pull. The 1012 uses a cast tapered pull and the 1013 uses a round pull. The Don-Jo 7037 sits apart from both on mounting: its pull is on 8 inch center-to-center spacing with 2 inch projection and 1-1/2 inch clearance, so the two Trimco models are not hole-for-hole swaps for it, they are choices for a door prepped at 5.5 inches.
19) I want a decorative pull plate for a residential or boutique entry, not a commercial one. What should I look at?
The Don-Jo 7037 is built for commercial door hardware use, with a plain half round grip and a utilitarian look. For a decorative entry, Emtek's push and pull plates come in the Knoxville, Modern, and lost wax cast bronze Petal patterns, which are the designer-facing option rather than a spec-grade plate.
