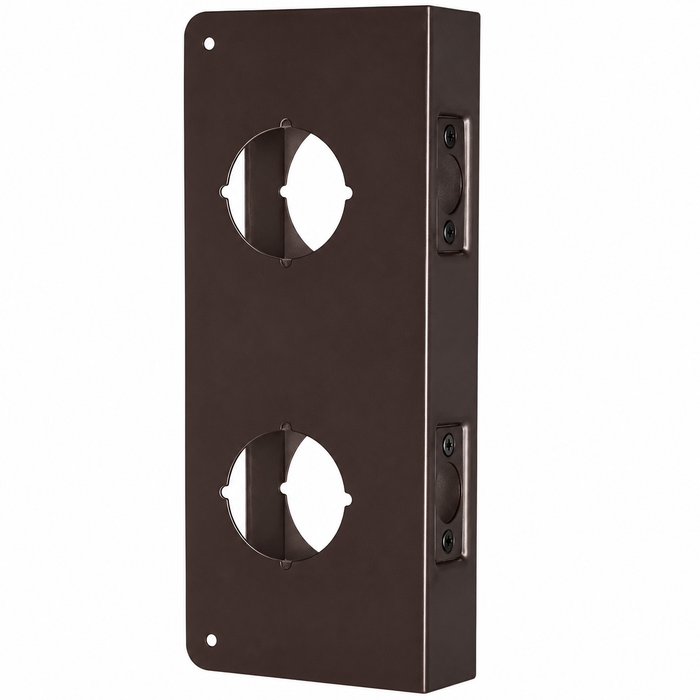

Don-Jo 946 CW Wrap Around Plate 4-1/2" x 12" for Double Lock Combination Locksets

Don-Jo 946 CW Wrap Around Plate 4-1/2" x 12" for Double Lock Combination Locksets

(No reviews yet) Write a Review

Model: 946-10B-CW
From the 946 CW Collection
Selected Finish is

In stock

$53.10
$29.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 946 CW Wrap Around Plate 4-1/2" x 12" for Double Lock Combination Locksets

The Don-Jo 946 CW Wrap Around is a commercial-grade door reinforcement plate measuring 4-1/2" x 12", engineered specifically for double lock combination locksets with 6" center-to-center spacing and dual 2-1/8" holes. Constructed from 22-gauge (.032) steel, this wrap around accommodates a 2-3/4" backset and is designed for 1-3/4" door thickness, featuring a double indent latch prep for precise, secure fitment. Available in multiple finishes including 10B (613), PB (605), and S (630) to complement a wide range of door hardware configurations.

Key Features

  • Precise Dimensions: Measures 4-1/2" wide x 12" tall, providing ample coverage and reinforcement for double lock combination lockset installations.
  • Double Lock Combination Lockset Compatibility: Designed specifically for double lock combination locksets with 6" center-to-center (CTC) spacing and dual 2-1/8" holes for a secure, accurate fit.
  • Correct Backset and Door Sizing: Accommodates a 2-3/4" backset and is sized for 1-3/4" door thickness, ensuring compatibility with standard commercial door preparations.
  • Double Indent Latch Prep: Features a double indent latch preparation for enhanced alignment and a clean, professional installation finish.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural requirements.
  • Commercial-Grade Application: Engineered for commercial use, providing reliable door trim reinforcement in demanding environments.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • (CTC) Center-to-Center: 6"
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 946 CW?

Don-Jo 946 CW Wrap Around plates deliver professional-grade door reinforcement with 22-gauge (.032) steel construction rated for demanding commercial applications. Engineered to precise dimensional tolerances — 4-1/2" x 12" with a 2-3/4" backset and double indent latch prep — this wrap around ensures a secure, accurate fit for double lock combination locksets where dependable performance and a finished appearance are essential.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
946 CW
Collection:
946 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
(CTC) Center-to-Center:
6"
Department:
Door Hardware

Don-Jo 946-10B-CW – Frequently Asked Questions

1) Does the Don-Jo 946 CW wrap around work on a 1-3/8 inch door?
It is sized for 1-3/4 inch doors, the standard commercial thickness, so a 1-3/8 inch door is the wrong application. A wrap around bends around the lock edge and the legs are formed to a set thickness. On the thinner door the plate stands proud of the faces and will not pull up flat. 1-3/8 inch is common on older interior and residential openings, and those need a plate made for that thickness.
2) My knob has a 2-3/8 inch backset. Can I still use the Don-Jo 946 CW wrap around plate?
No. The 946 CW is bored for a 2-3/4 inch backset, so on a 2-3/8 inch prep the holes land 3/8 of an inch off and the lock body will not pass through. 2-3/8 and 2-3/4 are the two standard backsets in the trade, and a wrap around has to be ordered to match the one already in the door. Measure from the door edge to the center of the bore, not to the edge of the hole, before you order.
3) What is a double lock combination lockset, and how do I tell if that is what is on my door?
It means two 2-1/8 inch bores through the door face, one for the knob or lever and a second above it for a deadbolt or auxiliary lock, spaced 6 inches apart center to center. Stand at the door, put a tape between the centers of the two round holes, and if it reads 6 inches the 946 CW covers both in a single plate. One bore only, or any spacing other than 6 inches, and this is not the plate for that opening.
4) I only have one 2-1/8 inch hole in the door. Is the 946 CW the right wrap around plate?
No. The 946 CW is a two hole plate, dual 2-1/8 inch bores at 6 inch centers, so on a single bore knob or lever opening the upper hole in the plate sits over solid door and leaves an open hole staring at you. For a single bore door, order a single hole wrap around in the same 2-3/4 inch backset and 1-3/4 inch door thickness.
5) Can a wrap around plate cover up gouges and old hardware scars around the lock on a beat up door?
That is the usual reason one goes on. The 946 CW covers a 4-1/2 by 12 inch area of the lock stile and wraps the door edge, so chewed up wood or metal, filled screw holes and worn finish around both bores go behind 22-gauge (.032) steel. The door stays hung and the existing lock prep gets reused, which is why property managers reach for these on turnover instead of replacing the slab.
6) Which 946 CW finish should I order to match the rest of my door hardware?
Three to pick from: 10B oil rubbed bronze (613), PB polished brass (605), and S satin stainless (630). Match the plate to the lockset it surrounds rather than to the hinges or closer, since the eye reads the plate and the lock as one assembly. Satin stainless in 630 is the common institutional pairing, polished brass in 605 goes with older brass knob trim, and 10B suits dark bronze levers.
7) Can I standardize on one wrap around plate across a whole building of commercial doors?
Only across openings prepped the same way. Every door taking the 946 CW has to be 1-3/4 inches thick with two 2-1/8 inch bores at 6 inch centers on a 2-3/4 inch backset. Buildings prepped in one go usually are consistent, so a single part number can cover a floor or a wing. Where locks have been swapped in over the years the backset and hole spacing drift, so walk the doors with a tape and count how many actually measure 6 inch centers before committing to a case quantity.
8) Will the wrap around plate get in the way of the latch faceplate on the edge of the door?
The edge leg is punched with a double indent latch prep, so the plate seats around the latch prep on the door edge instead of bridging over it. That is what lets the wrap pull up tight to the edge and both faces without the faceplate holding it off. You reuse the existing latch and faceplate; nothing on the door edge has to be recut.
9) Is 22-gauge steel heavy enough for a high traffic commercial door?
22-gauge (.032) steel is the material, and Don-Jo builds the 946 CW as a commercial part for offices, schools, healthcare, retail and warehouse openings. Understand what it is doing, though: it is formed trim that covers and stiffens the lock area of the door and takes the daily abuse off the wood or hollow metal. It is not a latch guard or a security strike. If the problem is someone prying or jimmying the lock rather than wear around it, that is a different piece of hardware.
