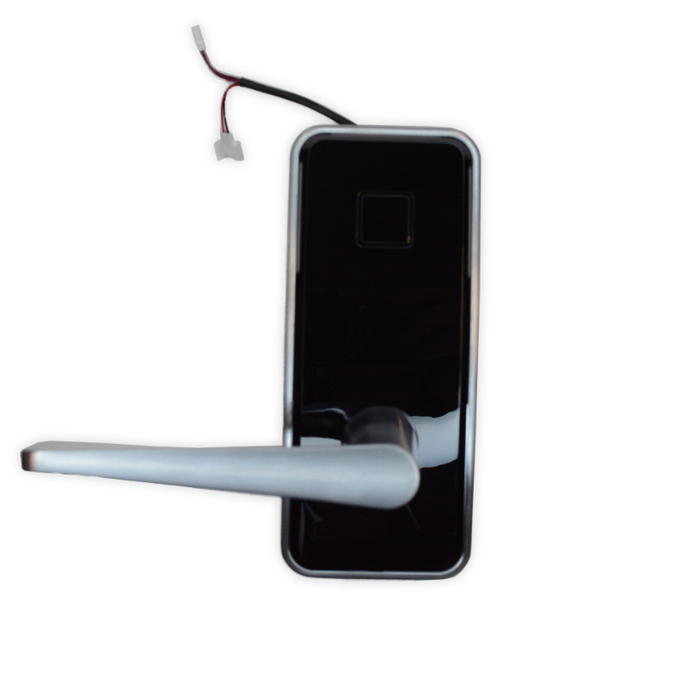

Dormakaba Dormakaba ML002EECBPETCB62R Saffire LX-L Cylindrical RFID Privacy Lockset with Bluetooth, Satin Chrome

Dormakaba Dormakaba ML002EECBPETCB62R Saffire LX-L Cylindrical RFID Privacy Lockset with Bluetooth, Satin Chrome

(No reviews yet) Write a Review

Model: ML002EECBPETCB62R
$750.00
$613.75
Selected Finish is
Selected Lever Desing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$750.00
$613.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dormakaba Dormakaba ML002EECBPETCB62R Saffire LX-L Cylindrical RFID Privacy Lockset with Bluetooth, Satin Chrome

Toggle; Bluetooth (BLE); Electronic (ELO); 2-3/8" Backset; ASA Strike; Right Hand or Left Hand Reverse; Satin Chrome with Black Facia Finish

Saffire LX-L Smart Latch Lock is a sleek, contemporary design RFID lock with a small footprint designed with the latest connectivity and security conveniences for
multihousing properties. The Saffire LX-L provides an easy-to-use, secure, and flexible solution that is both visually attractive and high performing. With its sleek curves and clean aesthetics, Saffire LX-L results in a lock design that integrates seamlessly with your property décor.

Features and benefits


• Operates with a completely sealed, high performance contactless reader
• Low battery indicator for preventative maintenance
• RFID credentials are easy-to-use and hard-to-lose
• Eliminates cost and hassle of managing keys
• Expand your access control as your multihousing community grows
• Available with third-party integrations to create a modern living experience
• Ideal for new construction or retrofits
• Suitable for small to large-scale multihousing properties
• Single system to control resident units, perimeter entries, amenity spaces and storage units

Supported by Community access management software (sold separately) for easy property management from anywhere

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Saffire Series
Product Type:
Cylindrical Locks
Product Subgroup:
Bored Locksets
Default Backset:
2-3/4" Square Corner Backset; ASA Strike
Commercial/Residential:
Commercial
Electronic:
Yes
Product Attribute:
Electronic Locks
Product Function:
Privacy
Product Category:
Electronic Locks
Department:
Door Hardware

Dormakaba ML002EECBPETCB62R – Frequently Asked Questions

1) Does the Dormakaba Saffire LX-L privacy lockset need to be ordered by hand?
Handing matters on this one. The Saffire LX-L cylindrical privacy lockset is built right hand or left hand reverse, and the ML002EECBPETCB62R is the right hand build. Stand outside the door: if it is hinged on your right and swings away from you, that is right hand. A left-hand-reverse opening (hinged left, swinging toward you) takes the opposite build, so confirm the swing before you order a batch for a building.
2) Is the Saffire LX-L a privacy lock or a keyed entry lock?
Privacy. The Saffire LX-L cylindrical is a privacy function with a thumbturn kickoff, so the occupant throws the turn from inside and the outside RFID reader is locked out until the turn is released. It is the unit-side bathroom or resident-privacy lock, not a keyed entrance lock. If you need an office or entrance function on a cylindrical chassis, the Marks USA 195RAB Survivor Series entry lever is a Grade 1 entrance option and the Orca OCL250 is a Grade 2 entrance lockset.
3) How do residents get in with the Saffire LX-L, and is there a physical key?
Credentials are RFID cards or fobs read by a fully sealed contactless reader, with Bluetooth Low Energy for mobile. There is no key management in the picture, which is the point of it for multihousing: no rekeying, no lost-key charges. If your site standard requires a mechanical key override on the same cylindrical prep, the BEST 9KZ EZ Series keypad lock is built with a key override function and the Alarm Lock DL2700 takes IC/SFIC cores.
4) Do I need software to run Dormakaba Saffire LX-L locks across an apartment property?
Yes, and it is a separate purchase. The Saffire LX-L is managed through Dormakaba's Community access management software, sold separately, which is what lets one system cover resident units, perimeter entries, amenity spaces and storage units and gives you third-party integrations. Budget it into the job; the lock alone does not administer credentials. If you want a standalone lock with no head-end at all, the Alarm Lock Trilogy 4100 is a privacy-function keypad lock and the Alarm Lock DL2700 holds 100 user codes on the door.
5) What else could I use instead of the Dormakaba Saffire LX-L for an RFID card lock on a cylindrical door prep?
Closest by credential type is the TownSteel FCE-2000 Series, a Grade 1 standalone motorized cylindrical lockset with RFID that fits 1-3/4 inch doors, or the FCE-4000 Series RFID intruder classroom lockset on the same thickness. Both are classroom function rather than privacy, so they suit school and institutional openings more than resident unit doors. For Bluetooth mobile credentials in privacy function, the CENTRIOS CEB100 Series is a Grade 1 smart Bluetooth cylindrical lock, and the Schlage NDEB ENGAGE Series is a Grade 1 BLE cylindrical lock covering 1-5/8 to 2 inch doors.
6) I want a privacy function electronic lock but on thicker doors than 1-3/4 inch. What are my options?
For privacy function specifically, the Schlage CO-100 keypad lock is Grade 1 heavy duty but built for 1-3/4 inch, and the Alarm Lock Trilogy 4100 privacy keypad covers 1-5/8 to 1-7/8 inch. If the door is heavier than that, the SDC E75 Series battery keypad lockset runs 1-3/4 to 2-1/8 inch and the TownSteel XCE-2000 covers 1-3/4 to 2 inch. On the mechanical side, the Cal-Royal CAL20 Grade 1 privacy lock takes 1-3/8 to 2 inch doors.
7) What is the closest equivalent to the Saffire LX-L ML002EECBPETCB62R if I need a Bluetooth cylindrical lock from another brand?
The Saffire LX-L ML002EECBPETCB62R is a cylindrical RFID privacy lockset with Bluetooth (BLE) on a 2-3/8 inch backset with ASA strike. The nearest cross-brand equivalents are the Schlage NDEB, a Grade 1 ENGAGE Series wireless cylindrical lock using 2.4 GHz Bluetooth Low Energy and mobile enabled with a 1-5/8 inch to 2 inch door thickness range, and the CENTRIOS CEB100, a Grade 1 smart Bluetooth cylindrical lock with a privacy function. The CEB100 matches the Saffire LX-L on privacy function; the NDEB covers storeroom, office, privacy and apartment functions in one lock.
8) I want an RFID cylindrical lock but the openings are classroom doors, not resident units. What should I use instead of the Saffire LX-L?
The Saffire LX-L ML002EECBPETCB62R is built around a privacy function for multihousing resident units, which is the wrong function for a classroom opening. For classroom doors with RFID credentials, the TownSteel FCE-2000 Series is a Grade 1 heavy duty standalone motorized cylindrical lockset with RFID technology in a classroom function for 1-3/4 inch doors, and the TownSteel FCE-4000 Series is an RFID electronic intruder classroom cylindrical lockset, also Grade 1 heavy duty for 1-3/4 inch doors. The FCE-4000 adds the intruder classroom function for lockdown from inside the room.
9) Is there a simpler keypad privacy lock I can use if residents do not need RFID cards or a phone?
The Saffire LX-L ML002EECBPETCB62R reads RFID credentials and Bluetooth, both of which depend on issued cards or a mobile credential. If you want codes entered at the door instead, the Alarm Lock Trilogy 4100 is a Grade 1 electronic cylindrical lock with a privacy function and keypad for doors 1-5/8 inch to 1-7/8 inch thick, and the Schlage CO-100 is a Grade 1 heavy duty standalone electronic cylindrical lock in privacy function with a keypad and cylinder options for 1-3/4 inch doors. Both keep the privacy function of the Saffire LX-L while replacing the credential with a code.
10) Which locks look like substitutes for the Saffire LX-L but will not do the same job?
Several electronic cylindrical locks sit close to the Saffire LX-L ML002EECBPETCB62R on the shelf but answer a different need. The SDC Electra 7200 Series is a solenoid controlled cylindrical lock on dual voltage 12/24VDC, so it has to be wired to a power supply and driven by an access control system rather than standing alone on batteries. The Kwikset 912TNL ZW500 SmartCode lever uses Z-Wave technology and a keyed one side function, so it does not read RFID credentials and is not a privacy lock. The Schlage XE360M is a Grade 1 wireless tubular lock in offline push button function for classroom and storeroom openings, and it is tubular rather than cylindrical. The Saffire LX-L is a cylindrical privacy lock with a contactless RFID reader and Bluetooth for multihousing units.
11) I need a key override on the lock. Which electronic cylindrical locks accept a cylinder where the Saffire LX-L uses credentials?
The Saffire LX-L ML002EECBPETCB62R is credential driven, operating with a sealed contactless reader and Bluetooth. If your maintenance program requires a mechanical key as well, the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with a key override function, the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical entrance lock that is IC/SFIC compatible for doors 1-5/8 inch to 1-7/8 inch thick, and the Schlage CO-100 privacy lock is offered with cylinder options. The Alarm Lock DL2700 is the one to look at if you want the lock to take your existing small format interchangeable core.
12) Can the Saffire LX-L go on existing doors or is it new construction only?
Both. Dormakaba builds the Saffire LX-L for new construction and retrofit, and it is a cylindrical chassis, so it goes in a standard bored door prep rather than a mortise pocket. The small footprint is deliberate for unit doors where a large escutcheon looks wrong.
13) How do I know when the batteries in a Saffire LX-L need changing?
The lock carries a low battery indicator, so maintenance gets warned at the door before a resident is locked out. On a property with a few hundred units that is the difference between a scheduled battery sweep and emergency calls. It is battery-operated hardware at the door, not wired to the frame, so there is no power transfer hinge or electrified frame work in the install.
14) Is the Saffire LX-L rated for commercial use or is it a residential smart lock?
Commercial. Dormakaba classes the Saffire LX-L as commercial door hardware and builds it for small to large-scale multihousing, with the same system extending from resident units out to perimeter and amenity doors. That is a different animal from a consumer retrofit like the Kwikset 912TNL SmartCode Z-Wave lever, which is a keyed-one-side residential deadlatch for 1-3/8 to 2 inch doors.
15) Can I use one credential system for resident doors, the front entry and the storage rooms?
That is what the Saffire LX-L is built around. One system controls resident units, perimeter entries, amenity spaces and storage units, so a resident carries a single RFID credential rather than a card for the gym and a key for the storage cage. It also expands as the community grows, which matters if you are phasing buildings.
16) My doors are thicker than standard. Which electronic cylindrical locks cover a wider door thickness range than the Saffire LX-L?
For thicker leaves, the SDC E75 Series battery-powered electronic cylindrical lockset with keypad access control covers 1-3/4 inch to 2-1/8 inch, the widest of the electronic cylindrical set. The TownSteel XCE-2000 and XCE-9000 electronic keypad cylindrical locksets are both Grade 1 heavy duty and cover 1-3/4 inch to 2 inch, and the Schlage NDEB ENGAGE Series wireless lock covers 1-5/8 inch to 2 inch. Confirm the leaf thickness before ordering, since the Saffire LX-L ML002EECBPETCB62R is supplied on a 2-3/8 inch backset with ASA strike and the backset prep must match as well.
17) If I only need a mechanical privacy lever on interior unit doors, what takes the place of the Saffire LX-L?
Where the opening does not need credentials or audit, a mechanical privacy lockset covers it. The Cal-Royal CAL20 is a Grade 1 extra heavy duty privacy lock in the Calypso Series with a 1-3/8 inch to 2 inch door thickness range, and the Orca Hardware OCL240 is a Grade 2 medium duty privacy cylindrical lockset. The Saffire LX-L ML002EECBPETCB62R carries the same privacy function but adds the RFID reader and Bluetooth, so mixing the two lets you put electronic access on entry doors and mechanical privacy on bath and bedroom doors within the same unit.
18) Do I need an audit trail on resident doors, and which lock gives me that if the Saffire LX-L does not fit the opening?
The Saffire LX-L ML002EECBPETCB62R is managed through Community access management software, sold separately, which is how a property controls resident units, perimeter entries, amenity spaces and storage units from one system. Where the opening calls for a standalone lock that records openings at the door instead, the Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with audit trail and keypad access. The difference is where the record lives: the Alarm Lock keeps it in the lock, the Saffire LX-L reports into the property software.
19) What differentiates the Saffire LX-L from the Accentra nexTouch NTB613 for a multihousing retrofit?
The Accentra nexTouch NTB613 is a Grade 1 cylindrical keypad lock with pushbutton entry, so residents enter a code at the door. The Saffire LX-L ML002EECBPETCB62R is a cylindrical privacy lockset that reads RFID credentials through a sealed contactless reader and adds Bluetooth (BLE), with a low battery indicator for preventative maintenance and third-party integrations. Both suit new construction or retrofits in a cylindrical prep; the decision is whether the property wants to issue and manage cards and mobile credentials or hand out codes.
20) What finish does the Dormakaba ML002EECBPETCB62R come in, and what does the lever look like?
Satin chrome with a black facia, so the escutcheon face reads dark against a bright lever and rose. The lever is the Von design, a modified elevon shape. If you are matching corridors that are already satin chrome, it will sit with them; the black reader facia is the visual break to expect.
21) Can a mechanical keyless lock stand in for the Saffire LX-L on storage or amenity doors?
On low-traffic storage and amenity openings where no cards are issued, a mechanical keyless lock does the job without batteries or software. The Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset covering 1-1/8 inch to 2 inch doors, and the Lockey 2830 is a mechanical pushbutton keyless knob lock with an auto-locking passage function over the same 1-1/8 inch to 2 inch range. The Saffire LX-L ML002EECBPETCB62R covers those same storage and amenity doors as part of one credentialed system with the resident units, so the choice is whether those openings belong on the property's access control or stand on their own.
