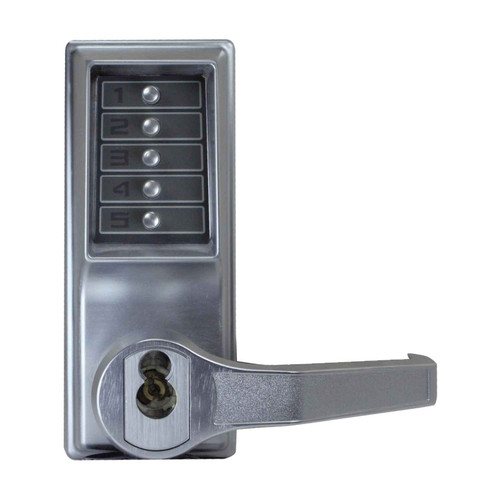

Dormakaba Simplex LR1041 Pushbutton Cylindrical Lever Lock, Combination Entry/Passage Functions with Key Override
Model: DOR-L1000-Key Override-4
Dormakaba

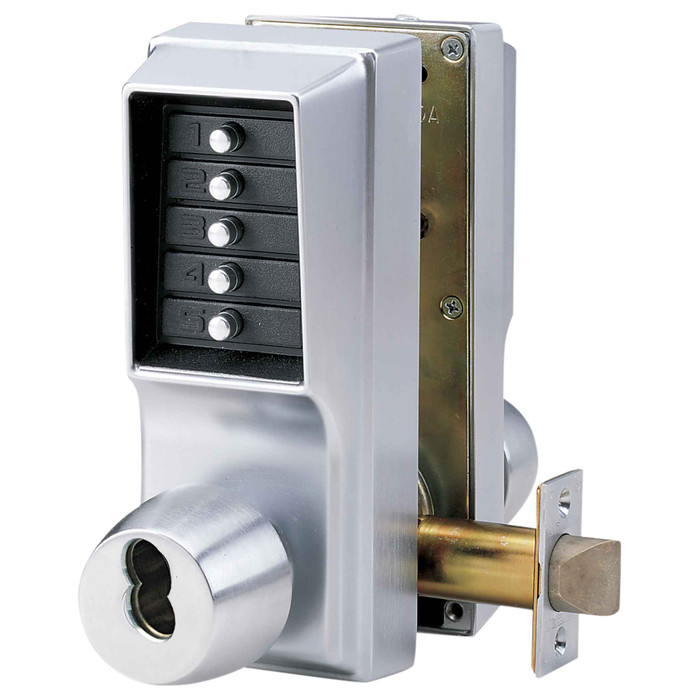

Product Summary
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex EE1000 Series provides interior and exterior access by combination. This mechanical lock, with knob option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Product Details
No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements
Locking Device:Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes:Single access code—one easy-to-manage code for all users
Programming:Lock is easily programmed via keypad without removing lock from the door
Handing:Factory-handed for left-hand doors; field reversible
Key Override (Optional):Small format interchangeable cores, large format removable cores
Operation Modes:
- Pushbutton entry
- Pushbutton egress
Economical:A cost effective access control solution
Technical Details:
Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Door Handing: Factory-handed for left-hand doors; easily field reversible
Standard Finishes:
- Antique Brass 05 (609)
- Satin Chrome 26D (626)
Optional Finishes:
- Bright Chrome 026 (625)
- Bright Brass 03 (605)
Backset: 2¾" (70 mm)
Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Strike: Standard strike plate; ASA strike plate
Door Preparation: ASA 161-door preparation with additional through bore holes
Door Thickness: 1¾" (44 mm) to 2¼" (57 mm); modified lock for more than 2" (51) thick door (up to 2¼") available (specify when ordering)
Minimum Stile Recommended: 5" (127 mm)
Weight: 10.25 lbs. (4.6 kg)
Product downloads
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- Simplex EE1000 Series
- Grade:
- Grade 1
- Model:
- 102x/102x
- Door Thickness:
- 1-3/4" to 2-1/4"
- Backset:
- 2-3/4"
- Handing:
- Field Reversible
- Product Subgroup:
- Bored Locksets
- Product Type:
- Simplex Mechanical Push Buttons Locks
- Subcategory:
- Push Buttons Locks
- Strike:
- Standard Strike plate, ASA Strike plate
- Stile Width:
- 5"
- Keyed:
- Yes
- Commercial/Residential:
- Commercial
- Latch Throw:
- 1/2"
- Function:
- Entry/Egress
- Lock Function:
- Combination Entry/Egress Functions With Key Override
- Lock Type:
- Cylindrical
