Dortronics Dortronics 6510 Series of Emergency Pull Stations DOR-6510

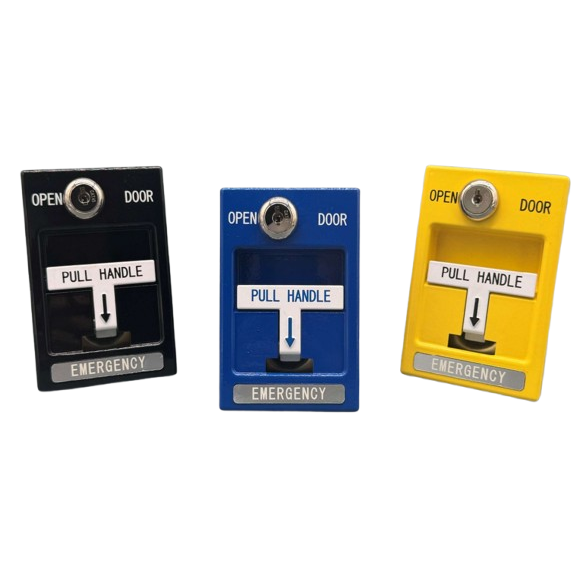

Dortronics 6510 Series of Emergency Pull Stations with Two SPDT (Form C) Switches

(No reviews yet) Write a Review

Model: 6510/BL-S35
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.00
$153.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dortronics 6510 Series of Emergency Pull Stations with Two SPDT (Form C) Switches

The 6510 series of emergency pull stations provide conspicuous signaling or release in case of emergency. These easy to operate stations require a single pull action to actuate. Dual SPDT switches allow connection to an alarm or access control system while simultaneously breaking or making power to a lock or siren using the second set of contacts.

Features:

  • Multiple Applications: Ideal for use in hospitals, schools, industrial facilities and office buildings. Use for emergency exit door release with badge in/out access control systems, or door interlock and mantrap type systems. The wide variety of colors and text make these units suitable for signaling an alarm panel of any natural disaster, hazmat incident, or medical emergency. Deters unauthorized access, i.e. smoking in stairwells, and nuisance access to fire escapes.
  • Customized Labels: Custom labels may be ordered by contacting the factory. These would be special order and lead times will vary accordingly.
  • Easy Mounting & Wiring: Two mounting screws are all that’s needed to surface mount the 6510. The unit mounts to a standard single gang electrical box. Matching color back boxes are also available for surface mounting. Back boxes have conduit knock outs for easy wiring access. Wiring is accomplished by utilizing the screw terminals on the back of the unit to connect to any system or device. All units are pre-wired, simply cut the wire not needed for a normally open or normally closed contact.
  • Key Reset: Following actuation the pull station is reset by opening the front cover (with the key provided) and installing a new acrylic break rod. Close and relock the cover and the 6510 is restored and ready for the next emergency.
  • Highly visible
  • Reliable operation
  • Key reset
  • Deter unauthorized access
  • Medical emergencies
  • Natural disasters

Specifications:

  • Electrical: Utilizes (2) SPDT switches in parallel switch rating 1Amp @ 30 VDC or VAC UL Listed for indoor or outdoor use.
  • Physical: 5” Long x 2-5/8” wide x 1” deep minimum clearance behind unit for wiring 1-1/2” All metal housing construction Large self clamping screw terminals mounted on a four point barrier strip baked on powder coated finish pressure sensitive mylar labels with raised text Included key for re-set and one plexiglass break rod, two mounting screws.
  • Operation: Pulling on the T shaped handle activates both SPDT switches, and simultaneously breaks the plexiglass rod. To reset insert key and turn clockwise opening the front housing cover. Place pull handle back into position, insert new break rod, close cover and turn key counter clockwise to lock. Station is now reset.

Specify Color:

  • BL - Blue
  • BK - Black
  • YL - Yellow

Resources

6510 EMERGENCY PULL STATION CUTSHEET

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Series:
6510 Series
Product Subgroup:
Parts and Accessories
Product Type:
Emergency Pull Stations
Subcategory:
Door Pulls
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
6510
Product Category:
Electronic Access Controls
Department:
Door Hardware

Dortronics 6510/BL-S35 – Frequently Asked Questions

1) What does a Dortronics 6510 emergency pull station mount to?
The 6510 surface mounts with two mounting screws to a standard single gang electrical box. You need 1-1/2 inches of clearance behind the unit for wiring. If there's no box in the wall, Dortronics offers matching color back boxes for surface mounting, and those have conduit knockouts so you can run wire in without cutting the wall open. Both mounting screws come with the unit.
2) Can one Dortronics 6510 pull station both release a maglock and signal the alarm panel at the same time?
That's exactly what the two switches are for. The 6510 carries two SPDT (Form C) switches actuated by a single pull, so one set of contacts reports to your access control or alarm system while the second set breaks power to a lock or makes power to a siren. With a single-switch station you'd need a relay to do both.
3) How do you reset a Dortronics 6510 pull station after someone pulls it?
Insert the supplied key and turn clockwise to open the front cover, put the T handle back into position, drop in a new acrylic break rod, close the cover and turn the key counter clockwise to lock. It's back in service at that point. One key and one break rod ship with the unit, so if you're covering multiple openings, order spare rods, since every activation consumes one.
4) Do I have to specify normally open or normally closed when ordering a 6510 pull station?
No. Every 6510 ships pre-wired for both. The switches are Form C, so you get common, normally open and normally closed leads at the screw terminals on the back, and you simply cut the wire you don't need for the contact state your panel wants. Terminals are large self clamping screws on a four point barrier strip, so field wiring is straightforward.
5) How much room does the Dortronics 6510 pull station take up on the wall?
The station measures 5 inches long by 2-5/8 inches wide by 1 inch deep, plus 1-1/2 inches of clearance behind it for wiring. It's a surface mount unit, so plan the 5 x 2-5/8 footprint on the finished wall beside the door, not inside a recess.
6) Is a pull station the right choice for a mantrap or badge in/out interlock?
Yes, this is one of the 6510's stated applications. In a door interlock or mantrap, the second switch set gives you a hard break in the lock power that doesn't depend on the controller executing a command, which is the point of an emergency release. It's also used for emergency exit door release on badge in/out access control, and to discourage nuisance use of fire escapes and stairwells since a pull breaks the rod and leaves evidence that requires a keyed reset.
7) Can I get custom text on a Dortronics 6510 pull station instead of the standard label?
Custom labels are available through the factory as a special order, with lead times that vary by order. The standard units use pressure sensitive mylar labels with raised text, and the range of colours and text is what lets the same station be used for hazmat, natural disaster or medical emergency signalling rather than just door release.
