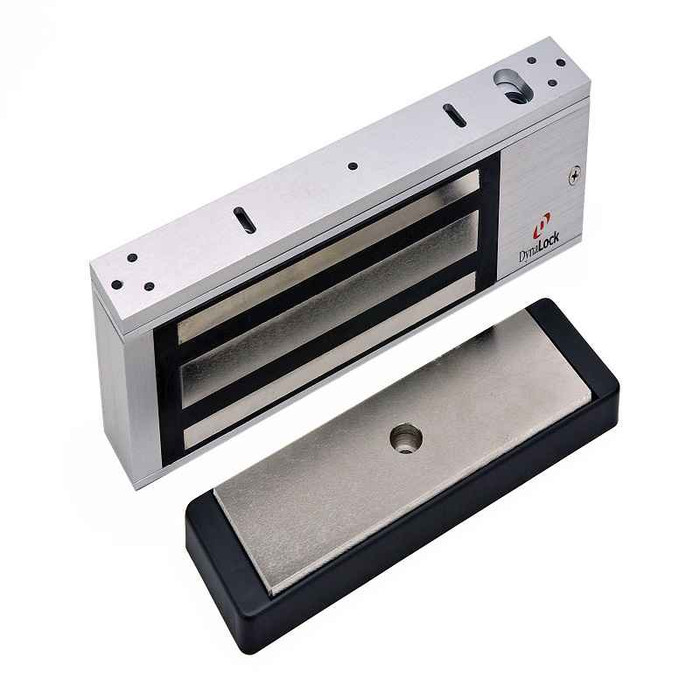

DynaLock 2000 Series Electromagnetic locks
Model 2011
2011 Single Outswinging Door
Single coil. Mounts to the underside of the frame header.
1200 Lbs. Holding Force.
The 2000 Series is a full size 1200 lbs. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specify for commercial, industrial, or institutional openings when low cost and highsecurity are required
All 2000 Series locks are designed for ease of installation with adjustable mounting, field selectable voltage, and convenient wiring compartments. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate “door contacts”.
The 2000 Series is offered in single, double, and split armature models for both outswinging and inswinging doors. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.
Standard Features
• Internal wiring compartment includes built-in circuit board attached to access cover to provide a convenient, plug in, concealed area for wiring connections.
• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.
• A totally plated coil and armature provides protection against corrosion.
• A narrow backset of 1-1/2” may mean the elimination of other mounting brackets or filler plates.
• No residual magnetism - the door releases without delay when lock is de-energized.
• Multiple sensor and monitor options increases flexibility, security and compatibility with system equipment.
• Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized.
• Lifetime Warranty - American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.
Electromagnetic locks, surface mounted for outswing or inswing single or double doors.
Size: 1-1/2”D x 2-3/4”H x 11”L Single or 22”L Double
1-1/2”D x 2-3/4”H x 10-1/2” L (2011-390 only)
Multi-voltage auto-sensing 12/24 VAC/VDC
Current Draw: 374 mA @ 12VDC Single / 748 mA Double
210 mA @ 24VDC Single / 420mA Double
Adjustable Relock Time Delay (Former TD Option) is standard on all models
DSM - Door Status Switch - Signals door closed or ajar
HSM - High Security Monitor. Includes the following:
Door Status Switch - Signals door closed or ajar
VOP - Value Option Package. Includes the following:
Door Status Switch - Indicates door closed or ajar.
Dynastat Force Sensor - Indicates efficient magnetic bond.
Anti-Tamper Switch - Signals removal of wiring access cover.
