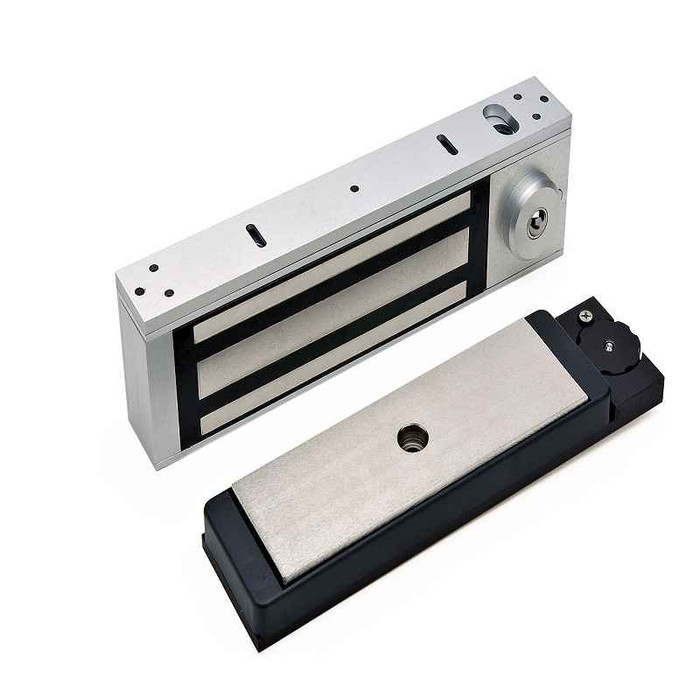

DynaLock 2101 Series Early Warning Trigger Electromagnetic Lock 1200Lb.
The 2101 Series is a full size 1200 lbs. holding force electromagnet. It is designed for medium to high security on outswinging doors when there is a need for a signal during an egress attempt. The early warning trigger (EWT) senses door movement while the electromagnet remains
locked. Specify for use with delayed egress controllers on commercial, industrial, and institutional openings. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 2101 Lock. Attempting to exit by applying 15Lbs. or less pressure to the door will cause the door to become unlatched, activating the EWT. This sensor can be used to signal a security officer or an automated controller. Delayed egress controllers, such as the DynaLock model #3101B-ES, sound an audible alarm when there is an egress attempt, allowing the door to open only after a set time has elapsed. A built-in door status monitor (DSM) eliminates the need for separate door contacts.
Standard Features
• Low Installation Cost: Integrated early warning trigger egress sensor works with existing door hardware.
• A totally plated coil and armature provides protection against corrosion.
• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.
• 12 or 24 VDC: Field selectable. AC voltage requires optional rectifier (PN# 7088).
• Multiple Monitoring Sensors: Door status and early warning sensor standard.
• No residual magnetism: The door releases without delay when lock is de-energized.
• Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized.
• Narrow Backset: A thin lock section of 1-1/2” may eliminate the need for additional mounting brackets.
• Lifetime Warranty: American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.
Electromagnetic lock, surface mounted for outswing doors. Includes early warning door
movement sensor output and door status output. Designed to initiate a remote alarm upon
unauthorized exit attempts or to trigger an off-site delay egress system.
Size: 1-1/2”D x 2-3/4”H x 11”L
Field selectable 12/24 VDC
Current Draw: 374 mA @ 12VDC
210 mA @ 24VD
