DynaLock 3101C Series 15000 Lb. Delayed Egress System (Generation II)
Model 3101C-TJ101-G2
3101C-TJ101-G2 Single-Inswing Delay Egress Lock Kit
Includes “Z” Bracket, Shim Plate, Door Sign,Wall-Mount Keyswitch

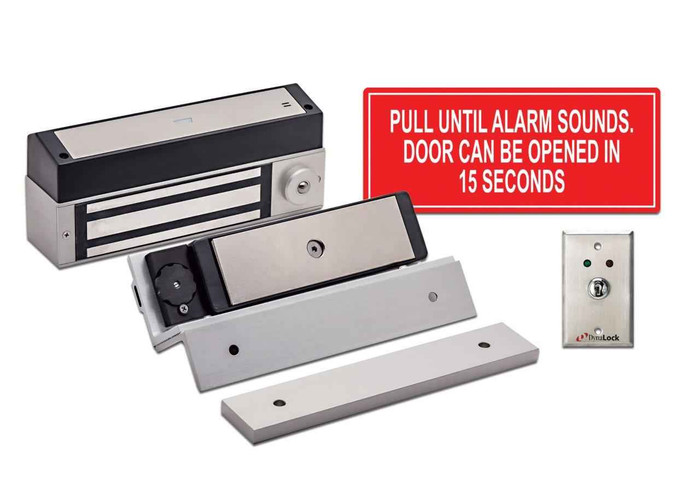

The 3101C-TJ101 Delay Egress Lock Kit is specifically designed to be face-mounted, to the frame header of an in-swinging single door. The Kit includes a top-jamb configured, 1500 Lbs. holding force delay egress electromagnetic lock assembly, adjustable “Z” bracket with shim plate, a wall-mounted bypass/ reset key switch station control (Model #7050-LED) and “PULL DOOR” verbiage door decal. The self-contained 3101C-TJ101 incorporates delayed egress sequencing electronics and a built-in egress sensing system which, during an unauthorized exit attempt, detects minor door movement, following latch retraction, to automatically initiate alarmed/ time-delayed release of the electromagnetic lock, in conformance with Life Safety Code NFPA-101. System reset and/or authorized bypass may be accomplished via the supplied key switch station, or external, remote dry-contact signaling device (i.e., keypad, card reader, push button, etc.). The 3101C-TJ101 is field-selectable to operate on 12 or 24 VAC/VDC input voltage, and will immediately unlock upon loss of input power, and/or dry-contact signal from a building’s fire alarm control panel. It is not intended for use on emergency egress doors.
Standard Features
• Microprocessor Controlled: An advanced digital processor on-board manages all lock functions, without the need for an external system controller. Custom factory programs are available to meet varying job requirements and local building codes.
• Low Installation Cost: The user friendly micrometer style adjustment wheel simplifies calibration of delay egress sensor and works with existing door hardware. Does not require electrified latch hardware, transfer hinges, door cords or special power supplies.
• Auto-Sensing Power Input: Will operate on 12 or 24 VAC/VDC.
• Selectable Nuisance Delay: 1 or 3 second to deter false alarms.
• Opto-Electronic System Sensor: Featuring a new concealed optical sensor unaffected by wind, warpage or door sag.
• Holding Force: 1500 Lbs. high security holding force per lock effectively deters forced access or egress.
• Lifetime Warranty - American Made in the USA by DynaLock, with over 25 years experience in the manufacture of electromagnetic locks.
Delay egress electromagnetic locks, surface mounted for outswing single or double doors and
inswing single doors. Non-handed.
Sizes: 3”D x 2-3/4”H x 11”L (3101C)
3”D x 2-3/4”H x 22”L (3121C)
3”D x 2-3/4”H x 11”L ea. (3121C2)
2-3/4”D x 4”H x 11”L (3101C-TJ101)
Multi-voltage auto-sensing 12/24 VAC/VDC
Current Draw: 456 mA @ 12VDC / 263 mA @ 24VDC (3101C, 3101C-TJ101)
849 mA @ 12VDC / 480 mA @ 24VDC (3121C, 3121C2)
