DynaLock 3121C2-G2 Series Tandem Pair Double Outswing Delayed Egress System Lock (Generation 2) 1500 Lb.

DynaLock 3101C Series 15000 Lb. Delayed Egress System (Generation II)

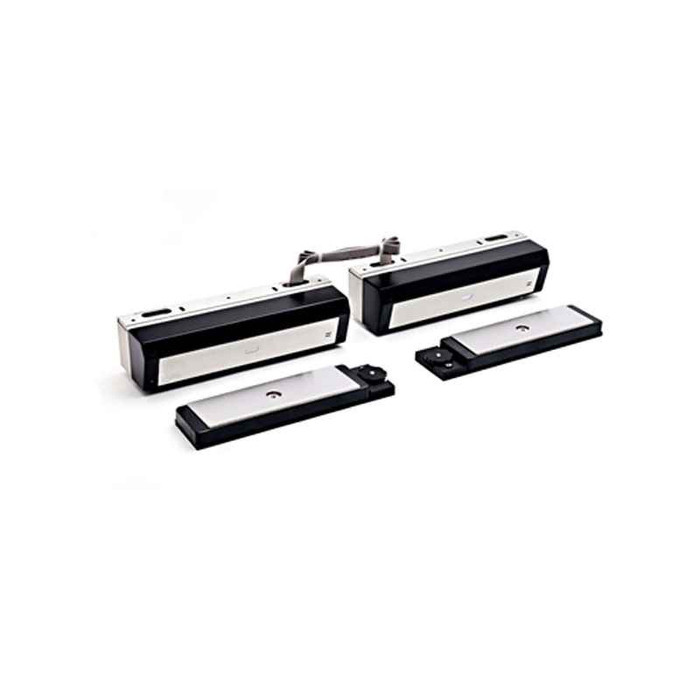

Model 3121C2-G2

3121C2-G2 Double Outswinging Door
With Center Mullion. Double coil. Mounts to the underside
of the frame header. Master/slave configuration

The 3101C Series is designed to satisfy egress codes and high security needs at the same time. The second generation 3101C system integrates a redesigned polymer housing cover and LED status indicator, while maintaining DynaLock’s proven and forgiving egress-sensing technology. In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by by unlatching and pushing on the door will activate the 3101C delay egress timer. The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED, until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in keyswitch or remote signal. The system unlocks automatically when the 3101C is integrated with the building emergency fire alarm system or power is removed. Fire alarm contacts on the 3101C Lock are field selectable for NO and NC signals

Standard Features
• Microprocessor Controlled: An advanced digital processor manages all lock functions, without the need for an external system controller. Custom factory programs are available to meet varying application requirements and local building codes.
• Low Installation Cost: The user-friendly, micrometer style adjustment wheel simplifies calibration of delay egress sensor and works with existing door hardware. Does not require touch or electrified exit devices, electric hinges, door cords or special power supplies.
• Auto-Sensing Power Input: 12 or 24 VDC/VAC
• Auxiliary Alarm Output: Optional new secondary set of SPDT delay egress alarm output contacts.
• Opto-Electronic System Sensor: Featuring a concealed optical sensor unaffected by wind, warpage or door sag.
• Holding Force: 1500 Lbs. high security holding force (holding force not evaluated by UL) effectively deters forced access or egress.
• Lifetime Warranty - American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks

Delay egress electromagnetic locks, surface mounted for outswing single or double doors and
inswing single doors. Non-handed.
Sizes: 3”D x 2-3/4”H x 11”L (3101C)
3”D x 2-3/4”H x 22”L (3121C)
3”D x 2-3/4”H x 11”L ea. (3121C2)
2-3/4”D x 4”H x 11”L (3101C-TJ101)
Multi-voltage auto-sensing 12/24 VAC/VDC
Current Draw: 456 mA @ 12VDC / 263 mA @ 24VDC (3101C, 3101C-TJ101)
849 mA @ 12VDC / 480 mA @ 24VDC (3121C, 3121C2)
