DynaLock 7400 Series Stand Alone Digital Keypads

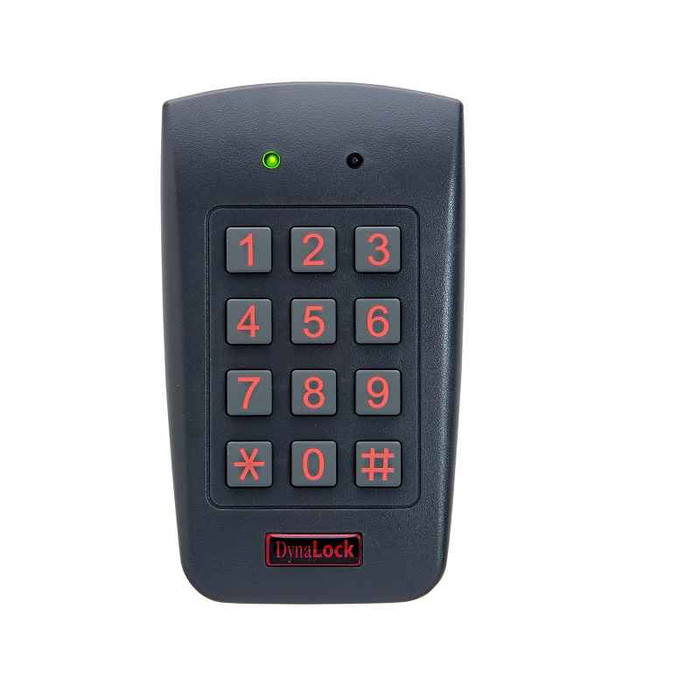

Model 7400 Single Gang Box-Mount, Backlit 3x4 Matrix Rubber Keypad
The DynaLock 7400 durable keypad that is designed to be the most cost effective access control solution for indoor and outdoor residential, commercial and institutional applications. It will store 1 to 500 user PIN codes, with up to three access levels for each. The 7400 features a user-friendly setup menu, which makes configuration and use very simple for endusers. A wide array of functions and auxiliary modes provide extra flexibility and security, allowing it to operate as a single or two-door access controller. The 7400 incorporates a UV-resistant, epoxy sealed polycarbonate housing, designed to withstand the elements. Red backlit keys enhance visibility in lowlight conditions and a flexible power input allows the unit to operate on 12-24VDC or 16-24VAC. Two Form-C relay outputs, rated at 2 Amps, as well as REX and Auxiliary inputs are provided
Standard Features
• 500 User Codes: Up to 500 codes can be programmed using one of two easy enrolling methods.
• Flexible Power Input: 12-24 VDC or 16-24VAC.
• 3 User and Access Levels: Program one to three different levels of access for each individual user or for the entire system.
• Multiple Inputs and Outputs: Unit includes a REX and Auxiliary input as well as two form C outputs rated at 2 Amps.
• Audio and Visual Recognition: Equipped with an internal sounder and two tri-colored status/programming LED’s.
• Multiple Auxiliary Modes: Ten programmable auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor.
• Weather Resistant: IP65 water and UV resistant.
• Vandal Resistant: Built in optical tamper sensor.
• Installer Friendly: Includes an installation kit and self-adhesive mounting template.
• Lifetime Warranty
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Subcategory:
- Push Buttons
- Series:
- 7400
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Keypads
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Model:
- 7400
- Warranty:
- Lifetime Warranty
- Voltage:
- 12 to 24VDC
- Substrate:
- Polycarbonate
