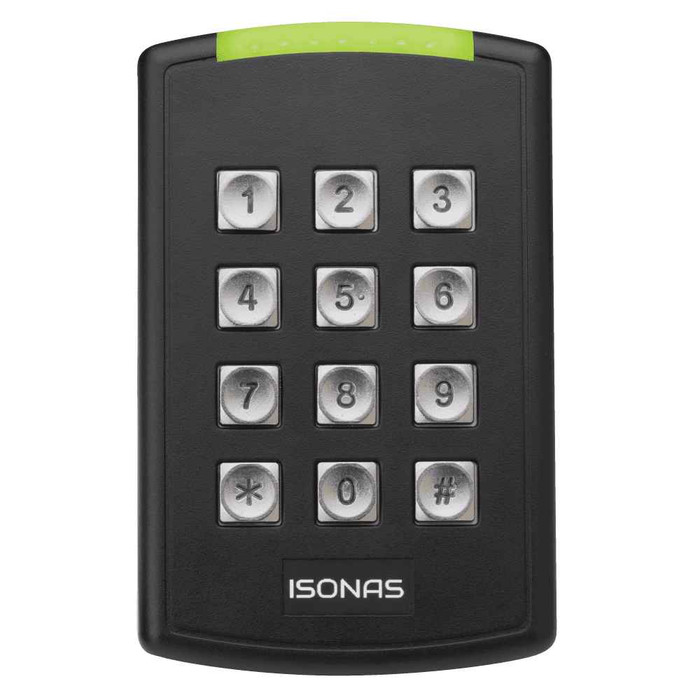

Isonas PowerNet IP Reader-Controller, Proximity Card, Single Gang mounting, Backlit keypad, 125kHz

Isonas PowerNet IP Reader-Controller, Proximity Card, Single Gang mounting, Backlit keypad, 125kHz

(No reviews yet) Write a Review

Model: RC-04-PRX-WK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,658.00
$1,341.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Isonas PowerNet IP Reader-Controller, Proximity Card, Single Gang mounting, Backlit keypad, 125kHz

The Pure IP hardware family from Isonas offers a suite of products that allow you to customize your access control solution. Our reader - controller continues to take advantage of our patented technology and remains an all in one intelligent device; eliminating the need for a panel and allowing you to take advantage of your existing network. The RC-04 reader controller is an all-in-one intelligent device that requires a single CAT5 cable to provide power and data; eliminating the need for a panel and providing a simpler and smarter alternative leveraging the IT network.

Features:

  • Mullion, wall mount and wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door
  • Reader-Controllers are available in two models: Multi-card technology (125 kHz and 13.56 MHz) or a proximity-only version (125 kHz)
  • Bluetooth® Low Energy (BLE) allows customers to utilize our Pure Mobile application and use their smart phone as their credential
  • Local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
  • Metal back plate provides additional security, a simple two-piece installation and consistent read range

Power Options

  • Power over Ethernet (PoE), (IEEE 802.3af, Class 0)
  • DC power: 12 VDC In (9 to 16 V; please note: 24 VDC is not approved for this device)

Reader-Controller Intelligence Capacity

  • 64,000 credentials
  • 5,000 events
  • 32 time schedules

Network Communications

  • 10Mb, half or full duplex
  • Ethernet, TCP/IP, standard RJ45 cable
  • Network host or client modes supported
  • DHCP addressing supported
  • Field flashable microcode

Environmental

  • Operating temperatures -40 ºF to 135 º F (-40 ºC to 57 ºC)
  • Conformal coated for weather resistance
  • Exposure ratings: IP56

Outputs

  • 8 wire pigtail
  • 600mA provided to power the lock
  • Conditioned lock power
  • Fail safe and fail secure supported
  • Two exterior door kit outputs

Inputs
Two configurable inputs:

  • Door sense
  • General purpose Request to Exit (REX) or Auxiliary (AUX)

Visual Indicator

  • LED signal for reader status
  • Backlit keypad

Security Features

  • Tamper detection via an accelerometer





Please see data sheet for additional details.

Manufacturer Resources

Product Specs

Subcategory:
Access Controls
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Hardwired
Commercial/Residential:
Commercial
Parts and Accessories Type:
Prox Readers & Keypads
Product Attribute:
Hardwired
Product Category:
Electronic Access Controls
Department:
Door Hardware

Isonas RC-04-PRX-WK – Frequently Asked Questions

1) Does the Isonas RC-04 reader-controller need a separate access control panel?
No panel required. The RC-04 is an all-in-one reader and controller: a single CAT5 run to the device carries both power and data over the existing IT network, so there is no field panel, no panel enclosure and no separate controller board at the door. Decisions are made in the reader itself, which holds 64,000 credentials, 5,000 events and 32 time schedules on board.
2) Will the Isonas RC-04 keep granting access if the network goes down?
Yes. Local mode lets the reader-controller operate without a network connection, using the credentials and schedules stored on the device. Isonas also cites local mode for faster user response, less network traffic and lower host system load even when the network is up.
3) How do you power the Isonas PowerNet IP reader-controller, and can it power the lock too?
Two options: Power over Ethernet (IEEE 802.3af, Class 0), or DC power at 12 VDC in with a usable range of 9 to 16 V. Do not feed it 24 VDC, that is not approved for this device. The unit supplies up to 600mA of conditioned lock power on its output, so a strike or maglock inside that current draw can run off the reader-controller without a separate lock supply. Both fail safe and fail secure locks are supported.
4) Is this the multi-technology Isonas reader or the proximity-only one?
This one is the proximity-only version, reading 125 kHz prox credentials. Isonas builds the reader-controller in two card technology models: proximity-only at 125 kHz, or a multi-card unit covering both 125 kHz and 13.56 MHz. If your site has smart cards at 13.56 MHz, or you are migrating to them, order the multi-technology model instead.
5) Can this Isonas reader-controller be mounted outside?
It is built for exterior use: conformal coated for weather resistance, rated IP56 for exposure, and operating from -40 F to 135 F (-40 C to 57 C). That temperature band covers unheated exterior doors in cold climates. A metal back plate gives a two-piece install and keeps read range consistent.
6) Can staff use a phone instead of a card on the Isonas RC-04?
Yes. Bluetooth Low Energy is built in, and with the Isonas Pure Mobile application a smart phone works as the credential alongside the 125 kHz prox cards. The unit also has a backlit keypad, so PIN entry is available at the door as well.
7) Which mounting style should I pick for an Isonas reader-controller, mullion or single gang wall mount?
Mullion is the narrow body for an aluminum storefront stile or a tight door frame. Single gang wall mount suits a standard electrical box beside the opening and is what you want when you need the keypad version, since the keypad form factor is a wall mount. Isonas offers mullion, wall mount and wall mount keypad form factors, covering both US and EU mounting.
8) What wiring do I need to bring to the door besides the network cable?
The device terminates on an 8 wire pigtail plus a standard RJ45 Ethernet connection. Off that pigtail you get the lock output, two exterior door kit outputs, and two configurable inputs for door position sense and a general purpose Request to Exit or auxiliary contact. Network side is 10Mb, half or full duplex, TCP/IP, with DHCP addressing and host or client modes supported, and the microcode is field flashable.
9) Is there any protection if someone tries to pry the reader off the wall?
Tamper detection is built in through an accelerometer, which senses the unit being altered or moved and flags it before it becomes a breach. The metal back plate behind the reader adds physical security to that.
10) Is the Isonas RC-04 suitable for a commercial building or is it a residential product?
It is a commercial access control device, catalogued for commercial use and built around an IP network install with PoE, on-board credential storage for 64,000 users and IP56 exterior-rated construction. For a multi-tenant or institutional site it standardizes on one part per door with no panel closet to maintain.
