Isonas Pure IP, MCT Reader-Con...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,088.63
$1,420.54

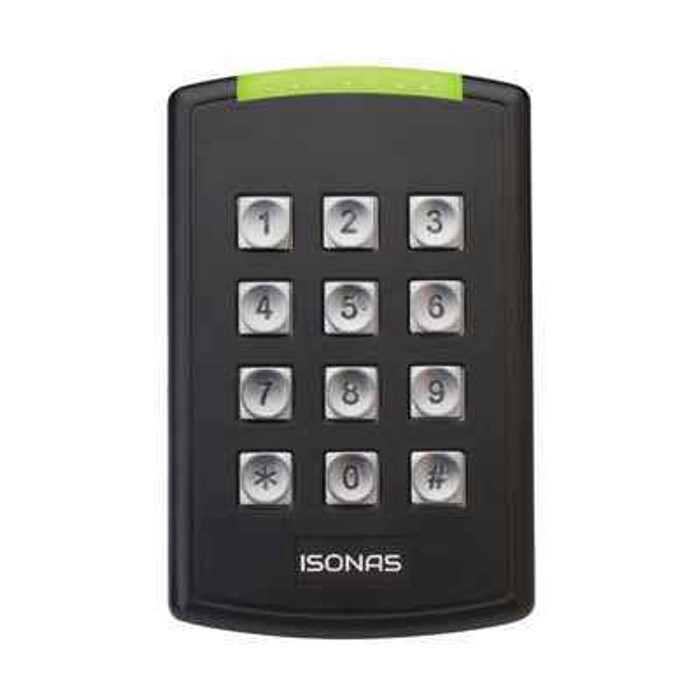

Isonas Pure IP, MCT Reader-Controller with Keypad, Wall Mount, Single Gang, 12 Key, 125khz, 13.56 MHz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LED's, Tamper Detection, Backlit Keypad, PoE, 12VDC, IP56, FCC, UL

Isonas Pure IP, MCT Reader-Controller with Keypad, Wall Mount, Single Gang, 12 Key, 125khz, 13.56 MHz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LED's, Tamper Detection, Backlit Keypad, PoE, 12VDC, IP56, FCC, UL

(No reviews yet) Write a Review

Model: RC-04-MCT-WK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,088.63
$1,420.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Isonas Pure IP, MCT Reader-Controller with Keypad, Wall Mount, Single Gang, 12 Key, 125khz, 13.56 MHz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LED's, Tamper Detection, Backlit Keypad, PoE, 12VDC, IP56, FCC, UL

The Pure IP hardware family from Isonas offers a suite of products that allow you to customize your access control solution. Our reader - controller continues to take advantage of our patented technology and remains an all in one intelligent device; eliminating the need for a panel and allowing you to take advantage of your existing network. The RC-04 reader controller is an all-in-one intelligent device that requires a single CAT5 cable to provide power and data; eliminating the need for a panel and providing a simpler and smarter alternative leveraging the IT network.

Features:

  • Mullion, wall mount and wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door
  • Reader-controllers are available in two models: Multi-card technology (125 kHz and 13.56 MHz) or a proximity-only version (125 kHz)
  • Bluetooth low energy (BLE) allows customers to utilize our pure mobile application and use their smart phone as their credential
  • Local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
  • Metal back plate provides additional security, a simple two-piece installation and consistent read range



Specifications:

  • General:
    • Mullion Dimensions: (5.1" x 1.7" x 0.75")
    • Wall mount Dimensions: (5.1" x 3.25" x 0.75")
    • Wall mount keypad Dimensions: (5.1" x 3.25" x 0.75")
    • Low frequency, high frequency and Bluetooth low energy
    • Made in the USA.
    • Extension cable: 7.5in
    • Adapter: 19mm diameter
  • Power Options:
    • Power over ethernet (PoE), (IEEE 802.3af, Class 0)
    • DC power: 12VDC In (9 to 16V)
    • Please note: 24V DC is not approved for this device
  • Network Communications:
    • 10Mb, half or full duplex
    • Ethernet, TCP/IP, standard RJ45 cable
    • Network host or client modes supported
    • DHCP addressing supported
    • Field flashable microcode
  • Software Compatibility:
    • Pure Access cloud
    • Pure Access manager (on-premise)
    • Open options
    • Genetec
  • Environmental:
    • UL 294 V6 certified
    • FCC certified
    • Operating temperatures -40ºF to 135º F (-40ºC to 57ºC)
    • Conformal coated for weather resistance
    • Exposure ratings: IP56
  • Outputs:
    • 8 wire pigtail
    • 600mA provided to power the lock
    • Conditioned lock power
    • Fail safe and fail secure supported
    • Two exterior door kit outputs
  • Two Configurable Inputs:
    • Door sense
    • General purpose request to exit(REX) or auxiliary(AUX)
  • Visual Indicator:
    • LED signal for reader status
    • Backlit Keypad
  • Security Features: Tamper detection via an accelerometer
  • Read Range:
    • 3" typical on RFID cards
    • Proximity read speed: < 250msec
  • Credential Types:
    • 125 kHz (FSK modulation)
    • 13.56MHz
    • Bluetooth® Low Energy Supported (4.1 and later)
    • MiFare® Classic, Ultralight, and MiFare Plus
    • MiFare DESFire EV2 (Secure Data) Isonas Only
    • iClass (CSN)
    • ISO14443A & B
  • Reader-controller intelligence capacity:
    • 64,000 credentials
    • 5,000 events
    • 32 time schedules

Manufacturer Resources

Product Specs

Subcategory:
Access Controls
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Hardwired
Commercial/Residential:
Commercial
Parts and Accessories Type:
Prox Readers & Keypads
Product Attribute:
Hardwired
Product Category:
Electronic Access Controls
Department:
Door Hardware

Isonas RC-04-MCT-WK – Frequently Asked Questions

1) Does the Isonas RC-04 reader-controller need a separate access control panel?
No panel required. The RC-04 is an all-in-one intelligent reader-controller: the decision-making, credential database and door outputs all live in the unit at the door. A single CAT5 run carries both power and data, so you connect it to the existing IT network instead of home-running everything back to a panel enclosure. Each unit holds 64,000 credentials, 5,000 events and 32 time schedules on board, and local mode keeps the door working if the network connection drops.
2) What credentials will the Isonas MCT reader read?
The MCT version is the multi-card model, reading both 125 kHz (FSK modulation) and 13.56 MHz. That covers MiFare Classic, Ultralight and MiFare Plus, MiFare DESFire EV2 (secure data, Isonas credentials only), iClass by CSN, and ISO14443A and B. Bluetooth Low Energy 4.1 and later is supported for phone credentials through the Isonas pure mobile app, and the 12-key backlit keypad adds PIN entry. If you only run 125 kHz prox cards, Isonas also builds a proximity-only version.
3) Can I power the Isonas RC-04 over PoE, and will it also power my lock?
PoE works, IEEE 802.3af Class 0, which is the normal way these get installed. You can alternatively feed it 12VDC in, with a 9 to 16V input window. 24VDC is not approved for this device and will not be covered. The unit provides 600mA of conditioned lock power out of its 8-wire pigtail, so a strike or maglock drawing within that can run straight off the reader-controller. Both fail safe and fail secure locks are supported.
4) Will the Isonas wall mount keypad reader fit a single gang box?
Yes, the wall mount keypad form factor is single gang and measures 5.1 x 3.25 x 0.75 inches. The mullion version is the narrow one at 5.1 x 1.7 x 0.75 inches if you are mounting on an aluminum storefront stile instead. Both mount as a two-piece assembly on a metal back plate, which also keeps read range consistent. The kit includes a 7.5 inch extension cable and a 19mm diameter adapter.
5) What do I still need to wire at the door besides the Isonas RC-04?
The 8-wire pigtail gives you the lock output with 600mA of conditioned power, two configurable inputs and two exterior door kit outputs. Those two inputs take a door position switch for door sense and a general purpose request-to-exit or auxiliary device. So plan on a strike or maglock, a door contact, and a REX (motion sensor or exit device switch) as separate items. Network side is a standard RJ45 Ethernet run, 10Mb half or full duplex, with DHCP addressing supported.
6) What happens to the door if the network goes down?
Local mode keeps the opening working. Because each RC-04 stores its own credential list and schedules (64,000 credentials, 32 time schedules) and makes the access decision at the door, a loss of connection to the host does not lock people out or open the building. Isonas also cites local mode as giving faster user response times, less network traffic and reduced host loading even when the network is healthy.
7) Can this Isonas keypad reader be mounted outdoors on an exterior door?
It is built for exterior use: IP56 exposure rating, conformal coated boards for weather resistance, and an operating range of -40F to 135F (-40C to 57C). That covers unheated vestibules, gates and exposed entries in cold climates. Tamper detection runs off an accelerometer, so any attempt to pry or shift the reader is flagged rather than quietly bypassed.
8) What software runs the Isonas Pure IP reader-controllers?
Four platforms are supported: Pure Access cloud, Pure Access Manager for on-premise hosting, Open Options, and Genetec. So if your facility is already standardized on Genetec or Open Options for video and access, these readers fold into it rather than forcing a second head-end. Microcode is field flashable for updates.
9) Is the Isonas RC-04 UL listed for access control?
It is UL 294 V6 certified and FCC certified, which is the listing specifiers normally call out for access control units on commercial openings. The units are made in the USA, which matters on government and institutional jobs with domestic sourcing language in the spec.
10) How close does a card have to be held to the Isonas reader?
About 3 inches is typical on RFID cards, with proximity read speed under 250 milliseconds. That is a present-the-card range, not a hands-free one, so mount it where a user can reach it from the pull side. The metal back plate behind the unit is part of keeping that read range consistent from door to door.
