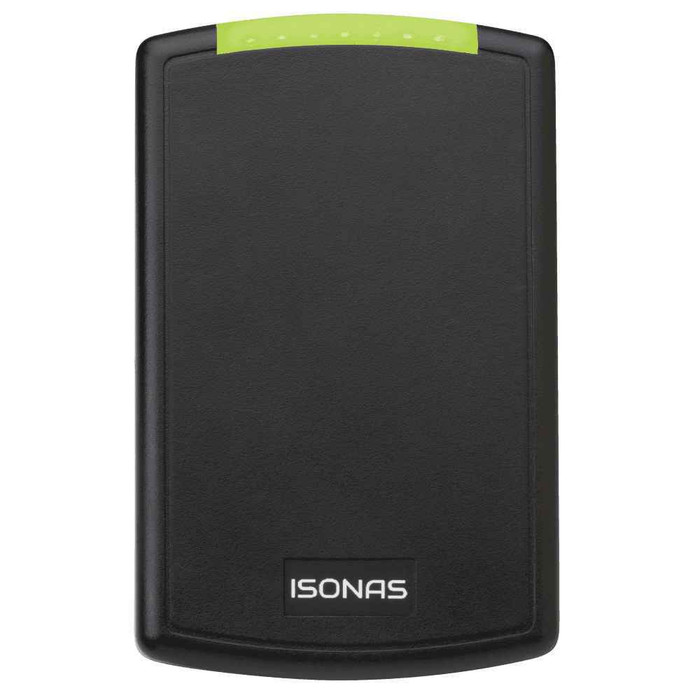

Isonas Pure IP, Proximity Reader-Controller, Wall Mount, 125khz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LED's, Tamper Detection, PoE, 12VDC, IP56, FCC, UL

Isonas Pure IP, Proximity Reader-Controller, Wall Mount, 125khz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LED's, Tamper Detection, PoE, 12VDC, IP56, FCC, UL

(No reviews yet) Write a Review

Model: RC-04-PRX-W
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,409.00
$1,139.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Isonas Pure IP, Proximity Reader-Controller, Wall Mount, 125khz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LED's, Tamper Detection, PoE, 12VDC, IP56, FCC, UL

The Pure IP hardware family from Isonas offers a suite of products that allow you to customize your access control solution. Our reader - controller continues to take advantage of our patented technology and remains an all in one intelligent device; eliminating the need for a panel and allowing you to take advantage of your existing network. The RC-04 reader controller is an all-in-one intelligent device that requires a single CAT5 cable to provide power and data; eliminating the need for a panel and providing a simpler and smarter alternative leveraging the IT network.

Features:

  • Mullion, wall mount and wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door
  • Reader-controllers are available in two models: Multi-card technology (125 kHz and 13.56 MHz) or a proximity-only version (125 kHz)
  • Bluetooth low energy (BLE) allows customers to utilize our pure mobile application and use their smart phone as their credential
  • Local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
  • Metal back plate provides additional security, a simple two-piece installation and consistent read range



Specifications:

  • General:
    • Mullion Dimensions: (5.1" x 1.7" x 0.75")
    • Wall mount Dimensions: (5.1" x 3.25" x 0.75")
    • Wall mount keypad Dimensions: (5.1" x 3.25" x 0.75")
    • Low frequency, high frequency and Bluetooth low energy
    • Made in the USA.
    • Extension cable: 7.5in
    • Adapter: 19mm diameter
  • Power Options:
    • Power over ethernet (PoE), (IEEE 802.3af, Class 0)
    • DC power: 12VDC In (9 to 16V)
    • Please note: 24V DC is not approved for this device
  • Network Communications:
    • 10Mb, half or full duplex
    • Ethernet, TCP/IP, standard RJ45 cable
    • Network host or client modes supported
    • DHCP addressing supported
    • Field flashable microcode
  • Software Compatibility:
    • Pure Access cloud
    • Pure Access manager (on-premise)
    • Open options
    • Genetec
  • Environmental:
    • UL 294 V6 certified
    • FCC certified
    • Operating temperatures -40ºF to 135º F (-40ºC to 57ºC)
    • Conformal coated for weather resistance
    • Exposure ratings: IP56
  • Outputs:
    • 8 wire pigtail
    • 600mA provided to power the lock
    • Conditioned lock power
    • Fail safe and fail secure supported
    • Two exterior door kit outputs
  • Two Configurable Inputs:
    • Door sense
    • General purpose request to exit(REX) or auxiliary(AUX)
  • Visual Indicator:
    • LED signal for reader status
    • Backlit Keypad
  • Security Features: Tamper detection via an accelerometer
  • Read Range:
    • 3" typical on RFID cards
    • Proximity read speed: < 250msec
  • Credential Types:
    • 125 kHz (FSK modulation)
    • 13.56MHz
    • Bluetooth® Low Energy Supported (4.1 and later)
    • MiFare® Classic, Ultralight, and MiFare Plus
    • MiFare DESFire EV2 (Secure Data) Isonas Only
    • iClass (CSN)
    • ISO14443A & B
  • Reader-controller intelligence capacity:
    • 64,000 credentials
    • 5,000 events
    • 32 time schedules

Manufacturer Resources

Product Specs

Subcategory:
Access Controls
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Hardwired
Commercial/Residential:
Commercial
Parts and Accessories Type:
Prox Readers & Keypads
Product Attribute:
Hardwired
Product Category:
Electronic Access Controls
Department:
Door Hardware

Isonas RC-04-PRX-W – Frequently Asked Questions

1) Do I need a separate access control panel to use the Isonas RC-04 reader-controller?
No panel required. The RC-04 is an all-in-one reader and controller: a single CAT5 run to the door provides both power and data over the existing IT network. The door decision is made at the reader itself, so there is no head-end panel, no panel enclosure, and no home-run to a controller closet.
2) What credentials will the 125 kHz proximity version of the Isonas RC-04 read?
This is the proximity-only build, reading 125 kHz cards and fobs using FSK modulation. If your site uses 13.56 MHz smart credentials (MiFare Classic, Ultralight, Plus, DESFire EV2, iClass CSN, ISO14443A and B) or wants phone credentials over Bluetooth Low Energy, you need the multi-card technology model instead, which covers both 125 kHz and 13.56 MHz.
3) Can I power the Isonas RC-04 reader-controller with PoE, and can it also power the lock?
Yes on both counts. It accepts Power over Ethernet to IEEE 802.3af, Class 0, or 12VDC in with a 9 to 16V working range. Do not feed it 24VDC, that is not approved for this device. The controller supplies 600mA of conditioned lock power on its output, which covers a typical strike or small maglock but not a heavy-draw lock.
4) Can the Isonas reader-controller be mounted outdoors?
Yes. It is conformal coated for weather resistance, carries an IP56 exposure rating, and operates from -40F to 135F (-40C to 57C), so an exterior entry or an unconditioned garage door is within range. The metal back plate gives a two-piece install and keeps read range consistent once mounted.
5) What are the wall mount dimensions of the Isonas RC-04, and will it fit on a door mullion?
The wall mount housing measures 5.1 x 3.25 x 0.75 inches, so it needs a flat wall or frame face wider than a typical aluminum stile. For a narrow glass-front mullion, order the mullion form factor instead, which measures 5.1 x 1.7 x 0.75 inches. A wall mount keypad version shares the 5.1 x 3.25 x 0.75 inch footprint.
6) Does the Isonas RC-04 still let people in if the network goes down?
Yes. Local mode lets the reader-controller keep making access decisions without a network connection, which also cuts response time and network traffic day to day. Onboard it holds 64,000 credentials, 5,000 events, and 32 time schedules, so a small to mid-size tenant population fits comfortably at the door.
7) What access control software works with the Isonas Pure IP reader-controller?
It runs on Pure Access cloud or Pure Access Manager on-premise, and it is also supported by Open Options and Genetec. Communication is standard Ethernet TCP/IP over an RJ45 cable at 10Mb, half or full duplex, with DHCP addressing and both network host and client modes. Microcode is field flashable.
8) What inputs and outputs does the 8 wire pigtail on the Isonas RC-04 give me?
The 8 wire pigtail carries lock power out plus two configurable inputs, one for door position sense and one for a general purpose request to exit or auxiliary device. There are also two exterior door kit outputs. Both fail safe and fail secure locks are supported, so you can wire a magnetic lock or an electric strike off the same controller.
9) How does the Isonas reader protect against someone prying it off the wall?
Tamper detection is handled by an onboard accelerometer that senses movement or alteration of the reader and reports it before it becomes a breach. The metal back plate adds physical security on top of that. LEDs on the face give reader status at a glance.
10) How far away does the Isonas proximity reader pick up a card?
Typical read range is about 3 inches on RFID cards, with proximity read speed under 250 milliseconds. That is a present-the-card range, not a hands-free one, so mount it where a user can reach it comfortably from the approach side of the door.
