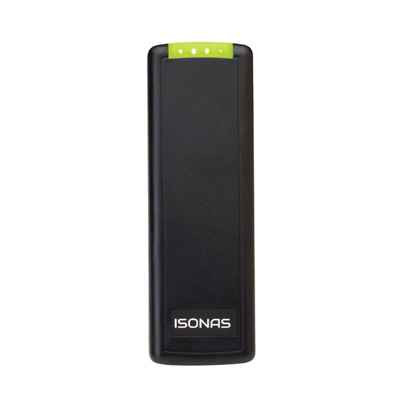

Isonas Pure IP, Wiegand MCT Reader, Mullion Mount, 125khz, 13.56 MHz, 8 Wire Pigtail, Indicating LED's, Tamper Detection, 5-16VDC, IP55, FCC, IC, CE

Isonas Pure IP, Wiegand MCT Reader, Mullion Mount, 125khz, 13.56 MHz, 8 Wire Pigtail, Indicating LED's, Tamper Detection, 5-16VDC, IP55, FCC, IC, CE

(No reviews yet) Write a Review

Model: R-1-MCT-M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$650.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Isonas Pure IP, Wiegand MCT Reader, Mullion Mount, 125khz, 13.56 MHz, 8 Wire Pigtail, Indicating LED's, Tamper Detection, 5-16VDC, IP55, FCC, IC, CE

The Pure IP hardware family from Isonas also includes a line of Wiegand readers. Fully customize your Pure IP solution with either our reader-controller or our PowerNet IP-Bridge connected to our Wiegand readers. Maintain the same aesthetic in your building by mixing and matching our hardware and maximizing the efficiency of the installation process.

Features:

  • Mullion, wall mount and wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door.
  • All Wiegand readers available in multi-card technology (13.56MHz and 125kHz). Providing flexibility in credential model choice.
  • Bluetooth low energy (BLE) allows customers to utilize our pure mobile application and use their smart phone as their credential.
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader.
  • Metal back plate provides additional security, a simple two piece installation and consistent read range.



Specifications:

  • General
    • Mullion Dimensions: (5.1” x 1.7” x 0.71”)
    • Wall mount Dimensions: (5.1” x 3.25” x 0.71”)
    • Wall mount keypad Dimensions: (5.1”x 3.25” x 0.71”)
    • Low frequency, high frequency and Bluetooth low energy
    • Made in the USA.
    • Material: plastic (ABS) and metal (SECC)
    • Compatible with Pure Access
  • Power Options
    • DC power 5-16 V DC
    • Mullion: 106mA average, 144mA peak
    • Wall mount: 119mA average, 169mA peak
    • Wall mount KP: 143mA average, 193mA peak
  • Environmental
    • FCC, IC and CE certified
    • Operating temperatures -40ºF to 158º F (-40ºC to 70ºC)
    • Accommodates indoor, outdoor and various other installation environments
    • Exposure ratings: IP55
  • Inputs/Outputs
    • 8 wire pigtail for common Wiegand reader wiring
    • Blue: green LED control line (input)
    • Yellow: beeper control line (input)
    • Brown: tamper (output)
    • Orange: red LED control line(input)
    • White: Wiegand data 1
    • Green: Wiegand data 0
    • Black: ground
    • Drain: shield ground
    • Red: power (5-16V DC)
  • Visual Indicator
    • Tristate LED light bar (red, green, amber) and buzzer
    • Backlit keypad
  • Read Range
    • 3" typical on RFID cards
    • Proximity read speed: < 250msec
  • Credential Types
    • 125 kHz (FSK modulation)
    • 13.56MHz
    • Bluetooth® Low Energy Supported (4.1 and later)
    • MiFare® Classic, Ultralight, and MiFare Plus
    • MiFare DESFire EV2 (Secure Data) Isonas Only
    • iClass (CSN)
    • ISO14443A, ISO 14443B, ISO 15693

Manufacturer Resources

Product Specs

Subcategory:
Access Controls
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Hardwired
Commercial/Residential:
Commercial
Parts and Accessories Type:
Prox Readers & Keypads
Product Attribute:
Hardwired
Product Category:
Electronic Access Controls
Department:
Door Hardware

Isonas R-1-MCT-M – Frequently Asked Questions

1) Will the Isonas Pure IP mullion reader fit on a narrow aluminum storefront mullion?
The mullion version measures 5.1 x 1.7 x 0.71 inches, so it sits on a narrow vertical face where a wall-mount reader won't. If you have the room, the wall mount and wall mount keypad versions are both 5.1 x 3.25 x 0.71 inches. Measure the flat of your mullion against 1.7 inches before you drill.
2) Can I use the Isonas Wiegand MCT reader with a non-Isonas access control panel?
It's a standard Wiegand reader with an 8 wire pigtail: white is Wiegand data 1, green is data 0, black ground, red power, plus separate control lines for the red LED (orange), green LED (blue), and beeper (yellow), a brown tamper output and a drain shield ground. Any panel that takes common Wiegand reader wiring and can supply 5 to 16V DC will drive it. Within the Isonas line it works with the PowerNet IP-Bridge and is compatible with Pure Access.
3) What card formats does the Isonas MCT reader read, and will it read our existing HID or MiFare badges?
Multi-card technology covers both 125 kHz (FSK modulation) and 13.56 MHz, so a mixed badge population reads on one device. Named support includes MiFare Classic, Ultralight and MiFare Plus, MiFare DESFire EV2 (secure data, Isonas credentials only), iClass by card serial number, and ISO 14443A, 14443B and 15693. Bluetooth Low Energy 4.1 and later is supported for phone credentials through the Isonas mobile app.
4) Can this Isonas reader be mounted outside on an exterior door?
Rated IP55 with an operating range of -40F to 158F (-40C to 70C), so it handles exterior openings, unheated garages and loading docks as well as interior lobbies. IP55 covers dust and low-pressure water jets, not submersion, so don't bury it where it sits under standing water.
5) How much current do I need to budget per door for Isonas Wiegand readers?
Per reader on 5 to 16V DC: the mullion draws 106mA average and 144mA peak, the wall mount 119mA average and 169mA peak, and the wall mount keypad 143mA average and 193mA peak. Size the supply against peak, not average, if you're ganging several readers on one power run.
6) How far away will a badge read on this Isonas reader?
About 3 inches typical on RFID cards, with proximity read speed under 250 milliseconds. That's a present-the-card range, not a hands-free one, so mount it where a user can reach it comfortably rather than expecting a read through a bag at arm's length. The metal back plate is part of why the range stays consistent from door to door.
7) Does the Isonas MCT reader signal a forced removal from the wall?
Tamper detection runs off an accelerometer, so it senses the unit being moved or pried rather than relying only on a backplate switch. That condition reports out on the brown wire in the pigtail, so land it on a supervised input at the panel if you want the alarm to actually annunciate. The two piece design with a metal back plate means the head comes off the plate for service without redoing the wiring.
8) Can the access panel control the LEDs and beeper on this Isonas reader for grant and deny feedback?
Yes, and they're driven independently. Blue is the green LED control line, orange the red LED control line, and yellow the beeper line, all inputs from the panel. The reader carries a tristate LED light bar (red, green, amber) plus a buzzer. If your panel only has one LED output, you get a two state indication instead of the full red/green/amber set.
9) Can I mix these Isonas Wiegand readers with Isonas reader-controllers on the same building?
That's the intended pattern. The Wiegand readers run back to either an Isonas reader-controller or the PowerNet IP-Bridge, so you can standardize on one look at every opening while varying what sits behind the wall, and the mullion, wall mount and wall mount keypad forms cover both US and EU mounting conventions. All of it reports into Pure Access.
10) Can staff use their phones instead of badges with this Isonas reader?
Bluetooth Low Energy is built in, versions 4.1 and later, and works with the Isonas pure mobile application so a smartphone acts as the credential. You don't have to choose, though: the same head still reads 125 kHz and 13.56 MHz cards, so you can move a tenant population to phones gradually while legacy badges keep working.
11) Is the Isonas Wiegand reader approved for commercial installation in the US and Canada?
The reader carries FCC, IC and CE certification, covering US, Canadian and European radio requirements, and it's made in the USA. Housing is ABS plastic with an SECC steel back plate, and it's a commercial grade device rather than a residential product.
