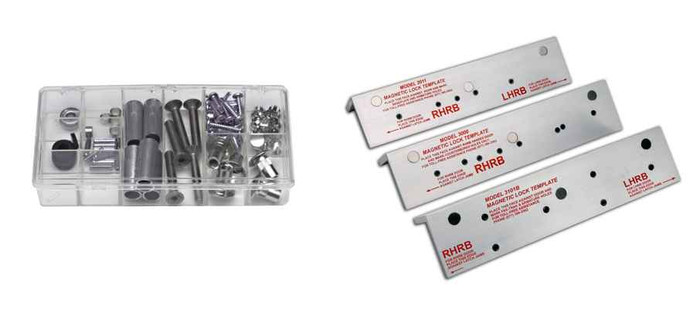

DynaLock Hardware Kit and Metal Template
301000 180 Piece Hardware Kit - An assortment of commonly used hardware for DynaLock . electromagnetic locks. For 2000/3000 Series. 1.5 Lbs
301238 Hardware Kit. For 3101/3101B Series. 2 Lbs.
4920 Metal Template for Model 2011. 2.5 Lbs.
4930 Metal Template for Model 3000. 2.5 Lbs.
4940 Metal Template for Model 3101C. 2.5 Lbs.
4951 Concrete/Wood Bracket for 2011/3000LC Size: 1-1/2”D x 1/2”H x 11”L .1 Lbs.
Manufacturer Resources
Product Specs
- Subcategory:
- Accessories
- Series:
- 301000
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Type:
- Parts and Accessories
- Parts and Accessories Type:
- Installation Accessories
- Product Attribute:
- Parts and Accessories
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
DynaLock 301000 – Frequently Asked Questions
1) Which DynaLock hardware kit do I need for a 2000 or 3000 Series maglock?
For 2000 and 3000 Series electromagnetic locks, the 301000 kit is the one to order. It's a 180 piece assortment of the fasteners and hardware commonly used on those installs. If you're mounting a 3101 or 3101B instead, that's a different kit, the 301238.
2) Which DynaLock metal template matches my maglock model?
They are model specific, one template per lock. The 4920 is for the Model 2011, the 4930 for the Model 3000, and the 4940 for the Model 3101C. Pick by the lock you're drilling for, not by series, since a 3000 and a 3101C take different templates.
3) What do I use to mount a DynaLock 2011 or 3000LC maglock to a concrete or wood header?
The 4951 bracket is made for exactly that, a concrete/wood mounting bracket for the 2011 and 3000LC. It measures 1-1/2 x 1/2 x 11 inches. Use it where the header won't take the standard hollow metal frame mounting.
4) Will a DynaLock hardware kit work on a Securitron or other brand maglock?
No. The 301000 and 301238 kits are cut to DynaLock's own lock series, 2000/3000 and 3101/3101B respectively, and the templates are drilled for specific DynaLock models. For a Securitron surface mount install you want that brand's own accessories, the SAM Surface Mount Kit parts or the SWB SAM wood bracket for wood headers. Cross-brand fastener kits will not line up.
5) What is the difference between the DynaLock 301000 hardware kit and the Securitron SAM Surface Mount Kit Accessories?
The DynaLock 301000 is a 180 piece assortment of commonly used hardware for DynaLock electromagnetic locks in the 2000 and 3000 Series. The Securitron SAM Surface Mount Kit Accessories are accessory parts for Securitron's SAM surface mount platform. Both are installation accessories rather than the lock itself, so the deciding factor is which manufacturer's magnetic lock is going on the door.
6) I need a mounting accessory for an electromagnetic lock on a glass door, not a wood or concrete frame. What should I look at?
The DynaLock 4951 bracket is specified for concrete or wood with the 2011 and 3000LC. For an all glass opening, Securitron Glass Door Accessories cover that condition instead and are rated Grade 2.
7) Will a DynaLock hardware kit give me the request to exit switching for my exit device?
No. The DynaLock 301000 and 301238 are hardware kits of fasteners and mounting hardware for DynaLock electromagnetic locks. Request to exit switching is a separate field installable kit tied to a specific device: Command Access CRSREXKIT-ED covers Cal Royal 22/98 and Sargent 80 Series, CYREXKIT-ED covers Corbin 5000 and Yale 7000 exit devices, and REX-KIT-ML covers ML1-Series mortise locks.
8) Which kit do I order for a 3101B, and is it the same one used on the 3000?
No. The 301238 hardware kit is the one specified for the 3101 and 3101B Series, while the 301000 180 piece kit covers the 2000 and 3000 Series. If the job is a 3101C, the matching layout piece is the 4940 metal template.
9) Do the DynaLock hardware kits come with the maglock, or is it a separate order?
These are installation accessories only, the fastener kits and layout templates that go with DynaLock electromagnetic locks. The lock itself, the armature, and the power supply are all ordered separately. Buy the kit to have the common mounting hardware on the truck, not as a substitute for the lock.
10) I'm mounting a maglock on an all-glass door, will these DynaLock brackets work?
No. The 4951 bracket is a concrete/wood bracket, meant for header substrates you can drill and anchor into, and the hardware kits are for DynaLock's standard frame mounting. A frameless glass door needs glass door mounting hardware, such as the Securitron Glass Door Accessories, which clamps rather than fastens through the leaf.
11) Do I need a metal template if I already have the hardware kit?
They do different jobs. The 301000 and 301238 supply the mounting hardware, while the 4920, 4930 and 4940 metal templates lay out the prep for the Model 2011, Model 3000 and Model 3101C respectively. Layout accessories from other lines, such as the Cal-Royal 8641-SM single gang surface mount box in the 8600 Series, address enclosure rather than drilling layout.
12) My maglock install also needs power and an exit alarm. Does the DynaLock kit cover that?
It does not. The DynaLock 301000 kit is an assortment of mounting hardware for the 2000 and 3000 Series magnetic locks. Power conversion is handled by a separate device such as the Adams Rite 4605 transformer, 115 VAC to 12/24 VAC with 40 volt-amp output, and audible annunciation by a unit such as the Adams Rite 29-0218 piezo electric horn or the RCI 914 Series delayed egress sounder with field-selectable volume up to 102dB.
13) What do I use to run power through the door rather than mount the lock to it?
The DynaLock hardware kits and metal templates handle mounting and layout for the magnetic lock. Getting current from frame to door leaf is a different part, such as the RCI 9500/9501 Series mortise pin transfer, rated 1.5A at 24VAC with a tamper-resistant design.
14) Is a metal template worth ordering if I'm only installing one maglock?
For a single opening, most installers work off the paper template in the box. The metal templates (4920 for the 2011, 4930 for the 3000, 4940 for the 3101C) earn their keep when you're doing a run of doors, since a steel template holds its dimensions through repeated drilling and marking where paper stretches and tears. Integrators standardizing a building on one maglock model are the usual buyers.
15) Are DynaLock hardware kits and templates rated for commercial buildings?
Yes, these are commercial door hardware accessories, supporting DynaLock electromagnetic locking on access controlled openings. They're the parts side of an electrified opening rather than residential trim hardware.
16) Is a DynaLock hardware kit interchangeable with a relay board or tamper cover on an access control job?
They are not substitutes. The DynaLock kits are commercial installation accessories for electromagnetic locks. A Locknetics RDB4 is a 4 output relay distribution board, and a Dortronics 6510/COV is an anti-tamper alarm cover for 6500 Series pull stations and 5000 Series push buttons. Each solves a separate part of the system.
17) I have leftover fasteners from a door closer job. Can I use those instead of the DynaLock kit?
Closer components are a different part family. The LCN 2010-3034 track roller with 1/16 inch shoulder dimension and the LCN 2030-3034 track roller assembly are closer parts for the 2010 and 2030 Series. The DynaLock 301000 is a 180 piece assortment specific to DynaLock electromagnetic locks in the 2000 and 3000 Series.
