Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D21
- Hole Pattern:
- S
- Material Gauge:
- 18 Gauge
- Product Height:
- 1.06 IN
- Product Length Depth:
- 240 IN
- Product Weight:
- 20.64 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- Yellow zinc chromate
- Product Material:
- Steel
- Product Length:
- 240 in
B-LINE 4D21S-240YZN – Frequently Asked Questions

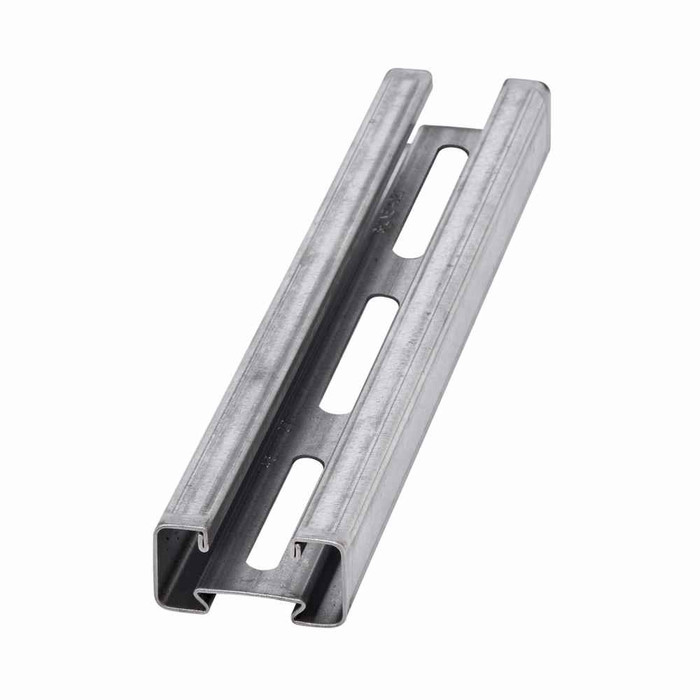

1) Is the B-Line 4D21S-240YZN slotted or solid back?
Slotted. The S in 4D21S is the hole pattern designation, so the back is punched with the slot pattern rather than run solid. That lets you drop a channel nut or a threaded rod hanger anywhere along the run without field drilling.
2) Can yellow zinc chromate strut channel be used outdoors?
Keep it inside. The 4D21S-240YZN is 18 gauge steel with a yellow zinc chromate finish, which is a dry-interior coating. For exposed exterior runs, rooftops, parking structures or wash-down areas, order hot dip galvanized or stainless channel instead.
3) What does the 4D21S-240YZN part number break down to?
Eaton B-Line breaks it into four pieces: 4D21 is the 4Dimension channel type, S is the slotted hole pattern, 240 is the length in inches, and YZN is the yellow zinc chromate finish. If you are matching an existing run, the 4D21 and the S are the two parts that have to agree.
4) Can I cut this strut to length on site, and what do I do about the cut end?
Yes, steel channel cuts with a bandsaw, chop saw with a metal blade or a portable band saw. The cut face loses its zinc chromate coating, so touch it up with a cold galvanizing or zinc-rich spray to keep rust out of an interior run, and deburr the edge before you slide a nut past it.
