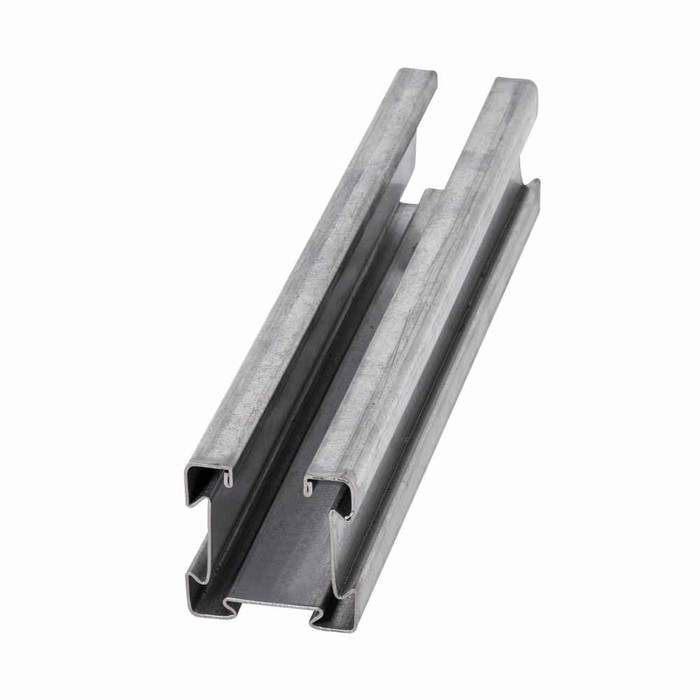

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 120 IN
- Product Weight:
- 16.03 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- DURA GREEN
- Product Material:
- Steel
- Product Length:
- 120 in
B-LINE 4D22-120GRN – Frequently Asked Questions
1) Is 4D22 the same as standard 1-5/8 inch strut?
No. Eaton B-Line 4Dimension 4D22 is a 2.12 inch square profile, not the common 1-5/8 inch strut section. Standard 1-5/8 strut fittings, nuts and clamps are not the same family, so order 4Dimension fittings sized to the 4D22 channel rather than assuming your existing 1-5/8 hardware drops in.
2) What does the DURA GREEN finish on this strut channel mean for outdoor or damp installs?
DURA GREEN is Eaton B-Line's painted/coated green finish over steel. It gives corrosion protection for general interior and sheltered industrial use. For continuously wet, corrosive or exterior-exposed runs, a hot dip galvanized or stainless channel is the better call.
3) What part number do I order for green 10 foot 4Dimension strut?
Order manufacturer part number 4D22-120GRN from Eaton B-Line: 4D22 profile, 120 inch length, GRN for the DURA GREEN finish. The number reads left to right as channel type, length in inches, then finish code.
4) Does the 4D22-120GRN strut come with nuts, bolts or brackets?
It is the bare channel only, a single 120 inch length of 2.12 inch 4Dimension section. Channel nuts, hanger rod, beam clamps, conduit straps and fittings are separate line items, so build your fitting count per support point before you order.
5) Can I cut this strut channel to length on site?
Yes. It is 18 gauge steel supplied in 120 inch sticks and cuts cleanly with a bandsaw, chop saw with a metal blade, or portable band file. Cut ends lose the DURA GREEN coating, so touch them up with cold galvanizing or matching paint if the run is anywhere damp.
