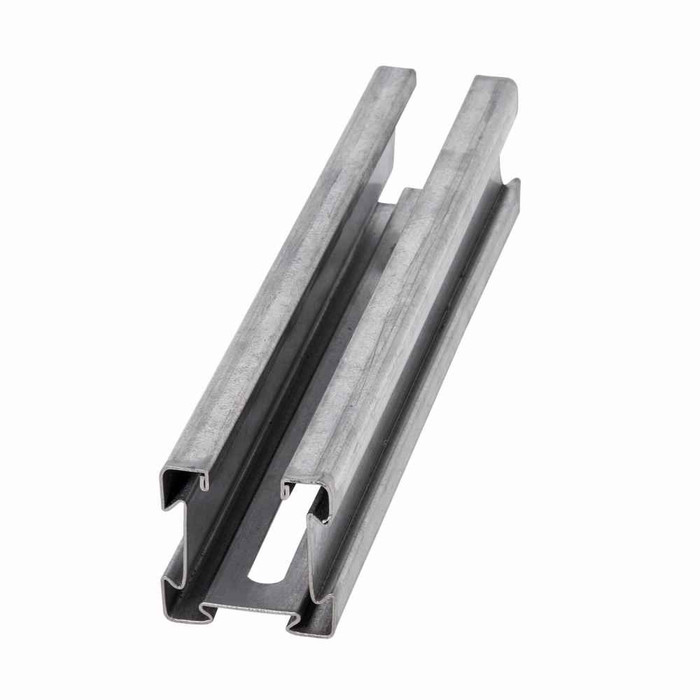

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Hole Pattern:
- S
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 240 IN
- Product Weight:
- 32.06 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- DURA GREEN
- Product Material:
- Steel
B-LINE 4D22S-240GRN – Frequently Asked Questions
1) Will standard 1-5/8 inch strut nuts and fittings fit the B-Line 4D22 channel?
No. The 4D22 is a 2.12 inch square profile, not the common 1-5/8 inch strut size, so 1-5/8 nuts, clamps and brackets will not seat in the lip correctly. Order 4Dimension series fittings sized to the 4D22 channel. If your job is already built out in 1-5/8 hardware, buy 1-5/8 channel and keep the system consistent.
2) What does the S in B-Line 4D22S mean, and is the channel solid or slotted?
The S is the hole pattern code on the 4D22 channel. It is the slotted back pattern, so you can strike a hanger rod or bolt anywhere along the run without drilling. If you want an unpunched solid back for a cleaner look or maximum section, that is a different hole-pattern suffix on the same 4D22 profile.
3) Is the Dura-Green finish on this B-Line strut OK for a damp or corrosive area?
DURA GREEN is a coated finish over 18 gauge steel, aimed at interior and protected service where plain painted strut would start to rust. It is not a hot-dip galvanized or stainless product, so for direct weather exposure, wash-down, or coastal work, specify a galvanized or stainless version of the 4D22 profile instead.
4) Is 18 gauge strut heavy enough for overhead conduit and pipe runs?
The 4D22S is formed from 18 gauge steel, which is the lighter wall in the strut range. It suits conduit racks, cable tray supports, small pipe hangers and equipment mounting at normal spans. For heavy mechanical pipe, long unsupported spans, or seismic bracing, step up to a heavier gauge channel in the same profile and size your spacing to the engineer's load table.
5) What is the exact part number to reorder this green B-Line strut channel?
Order Eaton B-Line 4D22S-240GRN. That breaks down as the 4D22 profile, S slotted hole pattern, 240 inch length and GRN for the Dura-Green finish. Quoting the full number keeps the length and finish from getting substituted on a resupply.
6) Can I cut B-Line 4D22 strut to length on site?
Yes, it is standard formed steel channel and cuts with a chop saw or bandsaw. Cut ends and any drilled holes break the Dura-Green coating, so touch them up with a compatible coating to keep corrosion from starting at the cut.
