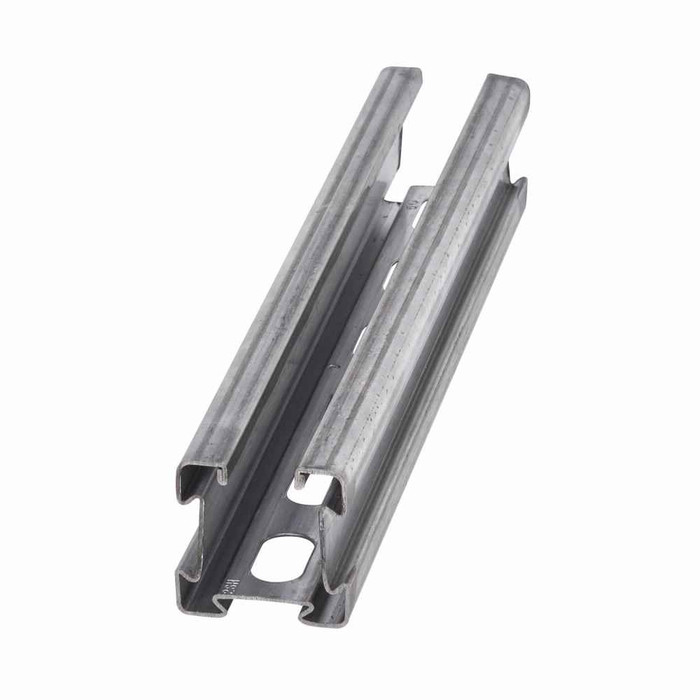

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Hole Pattern:
- SH
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 240 IN
- Product Weight:
- 32.06 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- Plain
- Product Material:
- Steel
B-LINE 4D22SH-240PLN – Frequently Asked Questions
1) Is plain finish strut channel OK for outdoor or damp locations?
No. The PLN suffix means plain steel with no protective coating, so it is for dry indoor use only, mechanical rooms, ceiling spaces, indoor equipment racks. Anything exposed to weather, washdown, or a corrosive environment needs a pre-galvanized, hot dip galvanized, or stainless channel instead.
2) Is 18 gauge strut heavy enough for conduit racks, or do I need a thicker channel?
The 4D22 here is rolled from 18 gauge steel, which is a light gauge channel. It suits conduit runs, small pipe, cable tray drops, and light equipment support indoors. For heavy pipe trapezes, seismic bracing, or long unsupported spans, step up to a 12 gauge channel in the same profile and shorten your support spacing.
3) What does the SH in B-Line 4D22SH-240PLN mean?
SH is the hole pattern on the channel, a slotted hole pattern punched through the back. It lets you bolt the channel to structure or fasten hangers anywhere along the run without drilling on site. Model 4D22SH-240PLN is the 18 gauge, plain finish version of that punched channel.
4) Can 4D22SH-240PLN be cut to length on site?
Yes, plain steel channel at 18 gauge cuts cleanly with a bandsaw, chop saw with a metal blade, or portaband, and the 240 inch stick is meant to be field cut. Since the finish is plain with no coating, deburr the cut and the field holes; there is no galvanizing to touch up.
