B-Line Eaton series Grip Strut...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,393.43

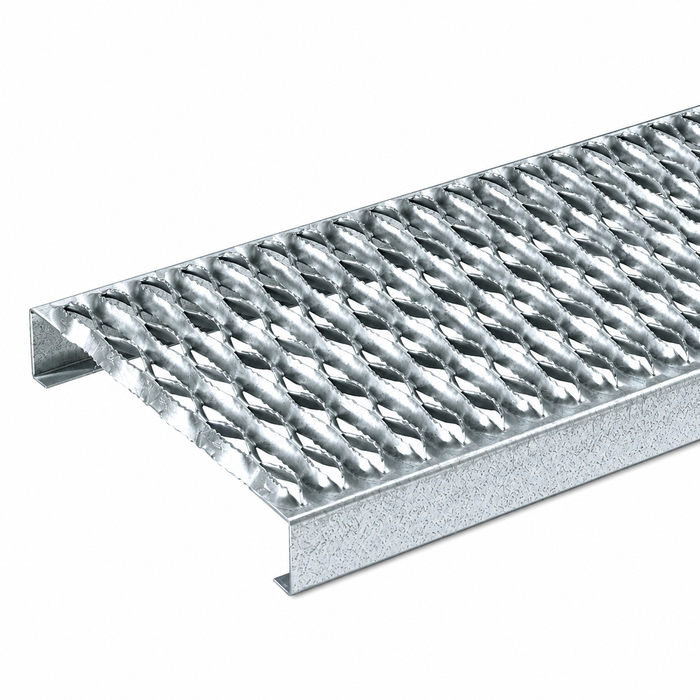

B-Line Eaton series Grip Strut three diamond plank, 120" Grating length, 7" Grating width, Steel, 3" Channel size, Mill-galvanized, Grip Strut, 10 gau

B-Line Eaton series Grip Strut three diamond plank, 120" Grating length, 7" Grating width, Steel, 3" Channel size, Mill-galvanized, Grip Strut, 10 gau

(No reviews yet) Write a Review

Model: 33010 10 GL
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,393.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Grip Strut three diamond plank, 120" Grating length, 7" Grating width, Steel, 3" Channel size, Mill-galvanized, Grip Strut, 10 gauge

Manufacturer Resources

Product Specs

Application:
Safe, sturdy footing where non-slip is required
Channel Size:
3"
Compliances:
OSHA Compliant
Material Gauge:
10 gauge
Product Height:
3 in
Product Length Depth:
120 in
Product Weight:
10.5 lb
Product Width:
7 in
Department:
Electrical
Product Finish:
Mill-galvanized
Product Material:
Steel

B-LINE 33010 10 GL – Frequently Asked Questions

1) Is this Grip Strut plank OSHA compliant for walkway and stair tread use?
Yes, the B-Line Grip Strut three diamond plank is listed as OSHA compliant, and the diamond-pierced surface is intended for safe, sturdy footing where non-slip is required. That is what makes it a common pick for elevated walkways, platforms and crossovers in industrial and institutional facilities.
2) Will mill-galvanized Grip Strut hold up outdoors or in a wash-down area?
The finish is mill-galvanized steel, which is a pre-galvanized coating on the sheet before forming. It handles normal interior and sheltered exterior industrial exposure. Cut and pierced edges are not coated after forming, so in constant wet, chemical or coastal service you want a hot-dip galvanized-after-fabrication or stainless plank instead.
3) How heavy is a 10 foot Grip Strut plank, and can one person set it?
Each 120 inch plank weighs 10.5 lb, so it is a one-man carry and lift. That is one of the reasons crews use formed steel plank rather than bar grating on elevated platform work, where hoisting heavy panels is the bigger part of the labor.
4) What does 10 gauge mean for this Grip Strut plank compared to lighter gauges?
This plank is formed from 10 gauge steel, the heavier end of the Grip Strut range. Heavier gauge means more load capacity at a given support spacing and better resistance to denting under wheeled carts and dropped tools, which is why 10 gauge gets specified for main traffic walkways rather than occasional-access catwalks.
5) What is the exact part number to order this B-Line Grip Strut plank?
Order it as Eaton B-Line part number 33010 10 GL. That number covers the three diamond plank at 120 inch length, 7 inch width, 3 inch channel, 10 gauge steel, mill-galvanized. There is one configuration under that number, so no separate finish or length selection is needed.
6) Do the Grip Strut planks come with mounting hardware or clips?
What ships is the plank itself, 120 inches of 10 gauge mill-galvanized steel, 7 inches wide. Fasteners, hold-down clips and the supporting steel are separate items, so plan the attachment method and quantity of clips for your support spacing as part of the order.
