B-Line AW147AP Eaton series pa...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$160.29
$130.61

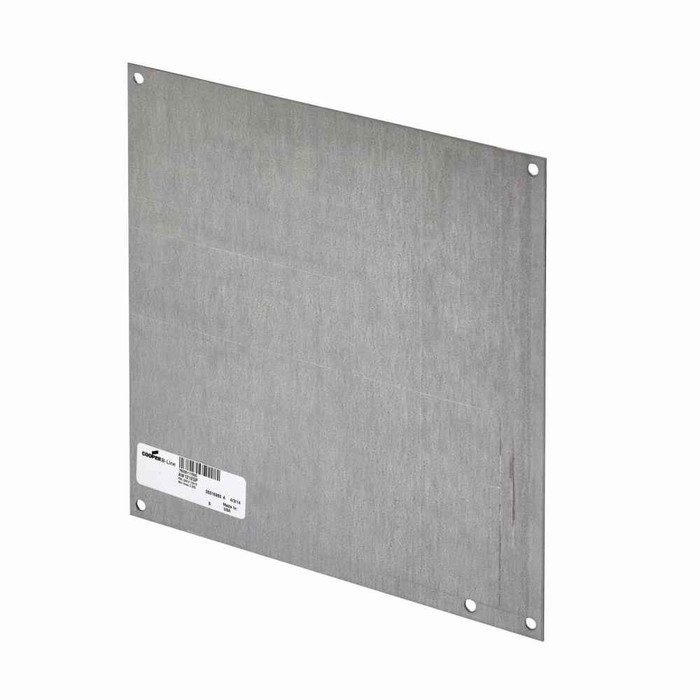

B-Line AW147AP Eaton series panels and panel accessories, NEMA 12, White powder coated, Used in installation of all JIC enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories, Aluminum panel

B-Line AW147AP Eaton series panels and panel accessories, NEMA 12, White powder coated, Used in installation of all JIC enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories, Aluminum panel

(No reviews yet) Write a Review

Model: AW147AP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$160.29
$130.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series panels and panel accessories, NEMA 12, White powder coated, Used in installation of all JIC enclosures, Galvanized steel, JIC and small panels, Panels and panel accessories, Aluminum panel

Manufacturer Resources

Product Specs

Application:
Used in installation of all JIC enclosures
Certifications:
UL Listed
Degree Of Protection:
NEMA 12
Product Category:
Panels & panel accessories
Product Height:
12.87 in
Product Length Depth:
10.875 in
Product Weight:
.619 lb
Product Width:
7 in
Department:
Electrical
Product Group:
Panels & Plates
Product Subgroup:
Panel Accessories
Product Type:
JIC & small panels
Product Details:
JIC & small panels
Product Material:
Galvanized steel

B-LINE AW147AP – Frequently Asked Questions

1) What size is the B-Line AW147AP back panel?
The AW147AP panel measures 12.87 in by 10.875 in by 7 in as published, and weighs .619 lb. Take those three numbers to your enclosure's panel mounting dimensions before you order, since a JIC back panel has to match the stud spacing inside the box, not the box's outside size.
2) Will this B-Line panel work in a NEMA 12 industrial control enclosure?
Yes. The AW147AP is rated NEMA 12, which is the dust and drip-tight indoor rating used on most JIC industrial control boxes, and it is intended for installation in JIC enclosures generally.
3) Is the AW147AP panel steel or aluminum?
Galvanized steel is the material given for the AW147AP. Steel gives you a surface you can drill and tap for DIN rail, wireway and device mounting without the thread strength worries you get in thin aluminum.
4) What part number do I order for this Eaton B-Line JIC subpanel?
Order it as B-Line AW147AP. That is the Eaton B-Line series manufacturer part number for this JIC and small panel, and it is the only number you need to give a distributor.
5) Does the AW147AP come with mounting hardware or studs?
The AW147AP is sold as the panel itself. JIC enclosures normally have collar studs already welded inside the box, and the panel mounts to those with the nuts supplied with the enclosure, so check what came with your box before you assume you have the fasteners.
6) Is the AW147AP the white powder coated panel or bare galvanized?
Both descriptions appear on the AW147AP: white powder coated finish over galvanized steel. The white face is what panel builders want inside a control cabinet, since it reflects light and makes wire numbers and device labels readable at the door.
